Description

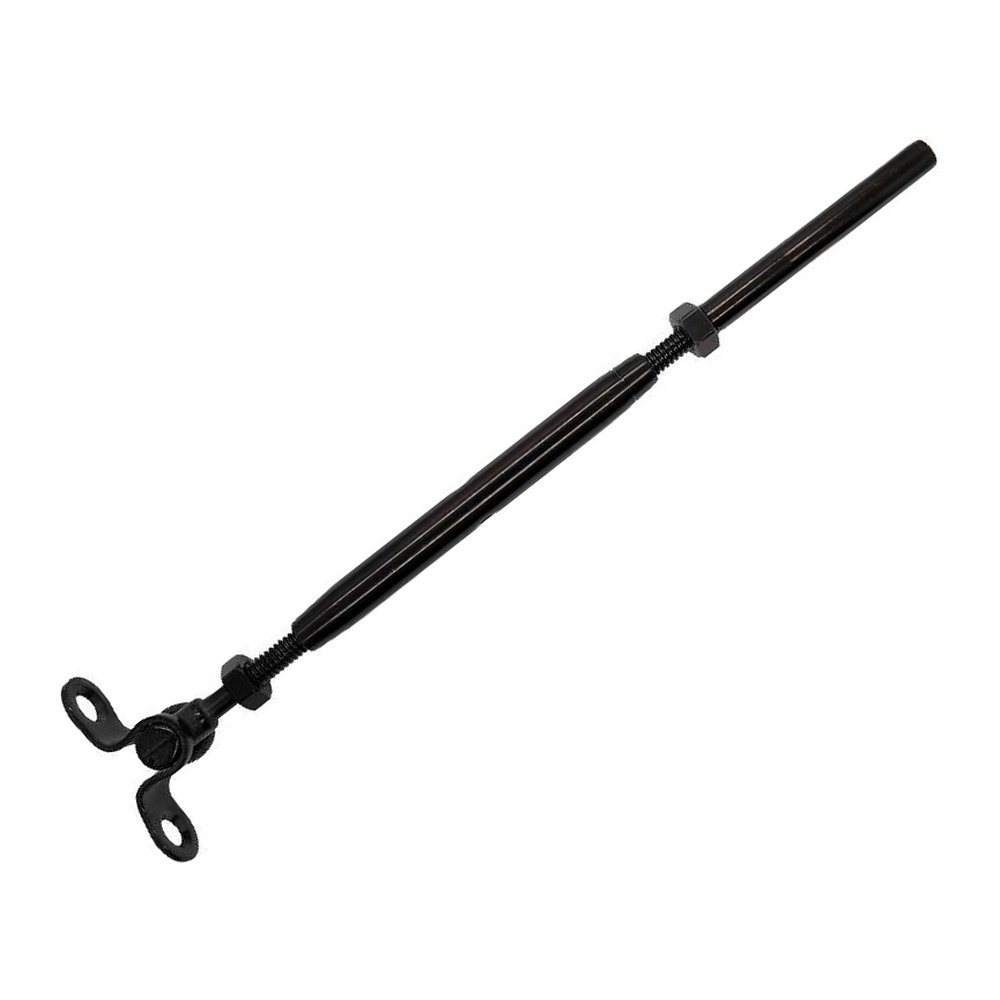

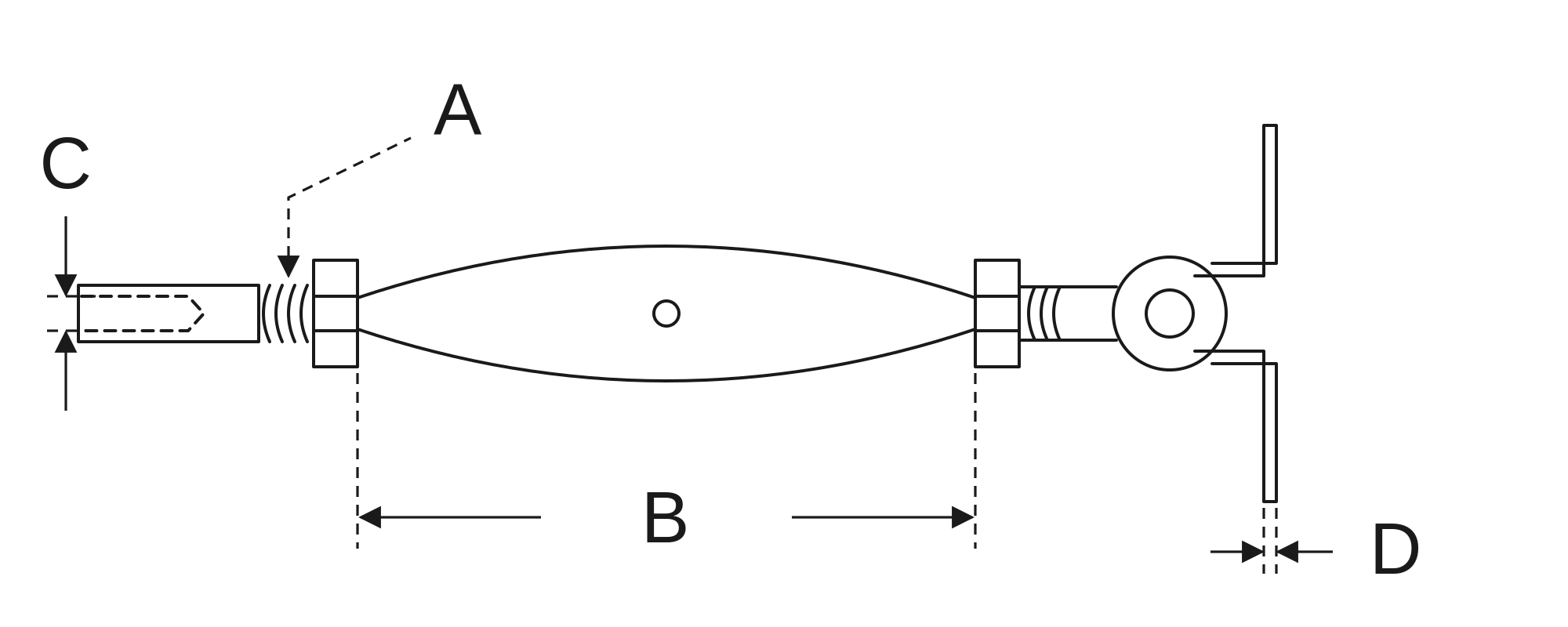

Black oxide deck toggle and life line stud closed body turnbuckle in T316 stainless steel for 1/8 in. or 3/16 in. cable, with a hand swage stud. The deck toggle end has a right hand thread and the life line stud end has a left hand thread (thread layout A); layout B reverses them on the 1/8 in. size. The drawing and table below give the dimensions.
Tensioning: With a left hand thread on the stud end, turn the turnbuckle body counterclockwise to tension. Layout B has a right hand thread on the stud end, so turn the body clockwise to tension.
Dimensions by Size
| Part No. | C: Cable size | A: Thread | B | D |
|---|---|---|---|---|
| MT6PBHLDTST14-18ABK | 1/8″ | 1/4″-20 | 3-3/4″ | 0.25″ |
| MT6PBHLDTST14-18BBK | 1/8″ | 1/4″-20 | 3-3/4″ | 0.25″ |
| MT6PBHLDTST14-316BK | 3/16″ | 1/4″-20 | 3-3/4″ | 0.25″ |
All dimensions in inches unless noted. C = Cable size. A = Thread. B and D are as shown on the drawing. Each row is one cable size and thread layout.
