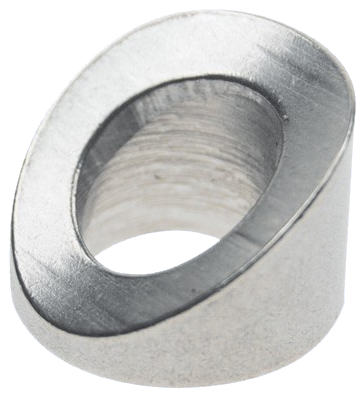

Stainless steel angled washer for round post

Angled Washers for Round Post

Price range: $3.17 through $3.80

-

Angled Washers for Round Post – Stainless Steel T316
  • Use with round posts: 1.25 in., 1.5 in. or 2.0 in. round post
  • Hole sizes 1/4 in., 5/16 in. and 3/8 in.
  • 30 degree angled washer, designed to provide a flat surface for threaded studs and threaded turnbuckles
  • Stainless Steel T316
  • Price is per each.
  • Shipping calculated at checkout
SKU: N/A Categories: ,

Description

Stainless steel T316 angled washers for round posts, designed to provide a flat surface for threaded studs and threaded turnbuckles. The drawing and table below give the dimensions for each hole size and post size.

Dimensions by Size

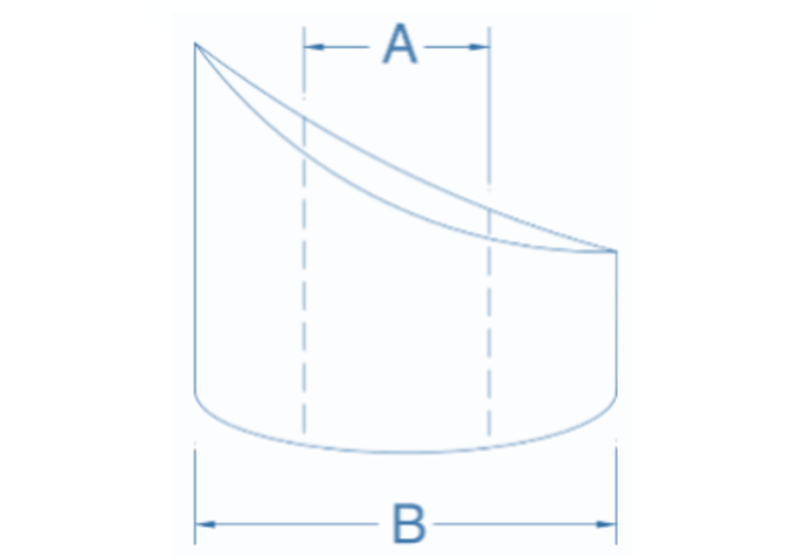

Angled Washers for Round Post - Stainless Steel T316 dimension drawing

Part No. A: Hole size Post size B
MT6AGWSHRP14-1.5 1/4″ 1-1/2″ 5/8″
MT6AGWSHRP14-20 1/4″ 2″ 5/8″
MT6AGWSHRP516-1.25 5/16″ 1-1/4″ 11/16″
MT6AGWSHRP516-1.5 5/16″ 1-1/2″ 11/16″
MT6AGWSHRP516-2.0 5/16″ 2″ 11/16″
MT6AGWSHRP516-2.0A 5/16″ 2″ 5/8″
MT6AGWSHRP10-1.5 3/8″ 1-1/2″ 11/16″
MT6AGWSHRP10-2.0 3/8″ 2″ 11/16″

All dimensions in inches unless noted. A = Hole size. B is as shown on the drawing.

Additional information

Round Post Outside Diameter

1.25 in. Round Post, 1.5 in. Round Post, 2.0 in. Round Post
Hole Size "A"

1/4 in., 5/16 in., 3/8 in.
Washer OD

5/8 in., 11/16 in.
