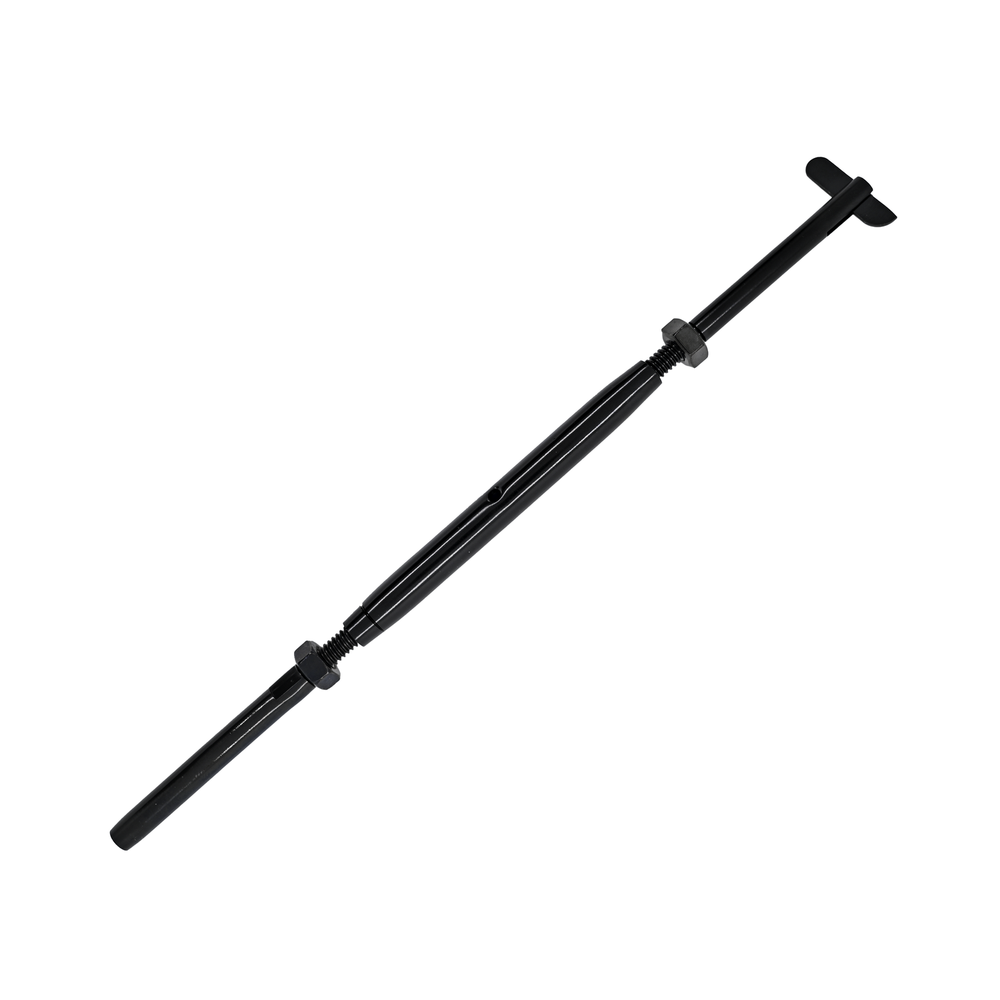

Black oxide drop pin and wrench flat stud with turnbuckle

Black Oxide Drop Pin and Wrench Flat Stud with Turnbuckle – Hand Swage

Price range: $20.25 through $21.83

-

Black Oxide Drop Pin and Wrench Flat Stud with Turnbuckle – Hand Swage
  • Black oxide closed body turnbuckle with a threaded drop pin on one end and a wrench flat stud on the other
  • 1/4 in.-20 thread (standard thread, UNC)
  • T316 stainless steel with a black oxide finish
  • Drop pin turnbuckles must be installed inside a cable frame. They can be used on ground level or deck projects. Not for overhead or human support.
  • Price is per each.
  • Shipping calculated at checkout
SKU: N/A Categories: ,

Description

Black oxide drop pin and wrench flat stud closed body turnbuckle in T316 stainless steel for 1/8 in. or 3/16 in. cable. The drawing and table below give the dimensions.

Drop pin turnbuckles must be installed inside a cable frame. They can be used on ground level or deck projects. Not for overhead or human support.

Dimensions by Size

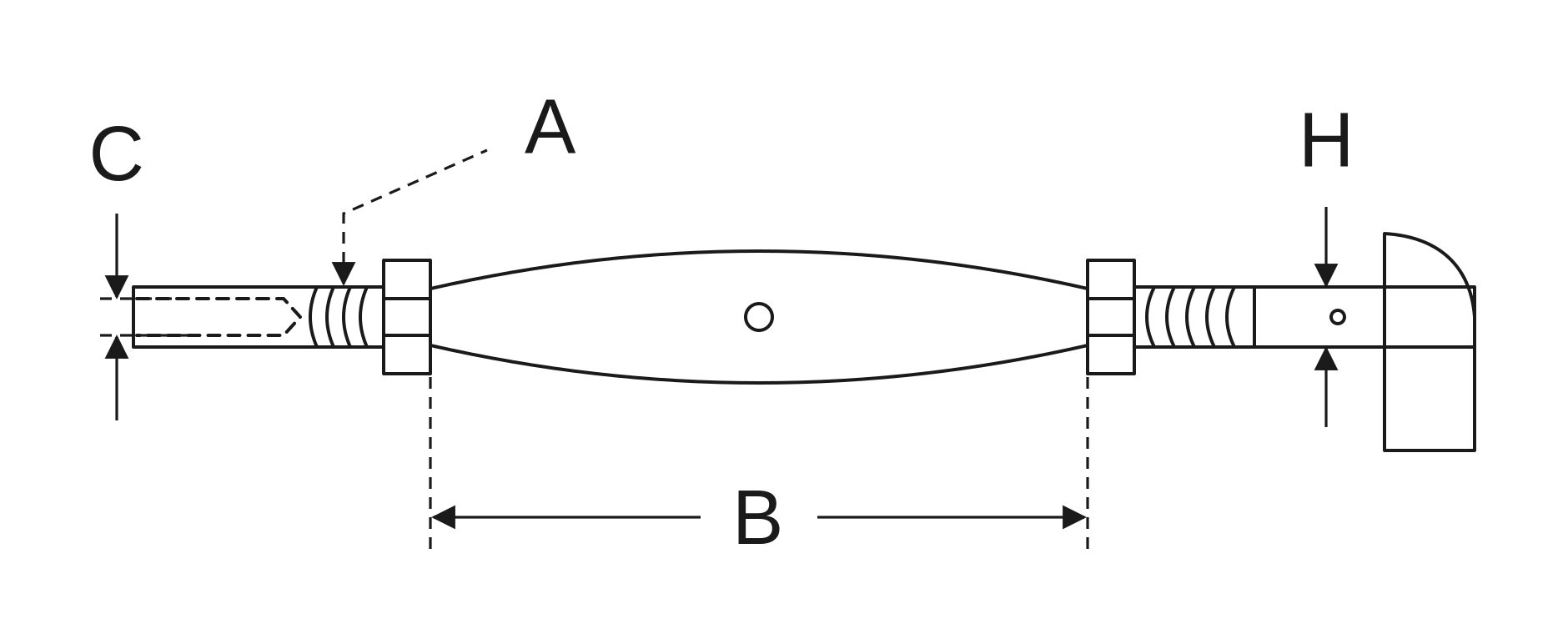

Black Oxide Drop Pin and Wrench Flat Stud with Turnbuckle dimension drawing

Part No. C: Cable size A: Thread B H
MT6PBHSDPST14-18BK 1/8″ 1/4″-20 3-3/4″ 0.212″
MT6PBHSDPST14-316BK 3/16″ 1/4″-20 3-3/4″ 0.25″

All dimensions in inches unless noted. C = Cable size. A = Thread. B and H are as shown on the drawing. Each row is one cable size.

Additional information

Weight N/A
Cable Diameter

1/8 in., 3/16 in.
