Black Oxide Rod and Life Line Stud with Pipe Body Turnbuckle – Hand Swage

Price range: $15.91 through $16.20

-

Black Oxide Rod and Life Line Stud with Pipe Body Turnbuckle – Hand Swage

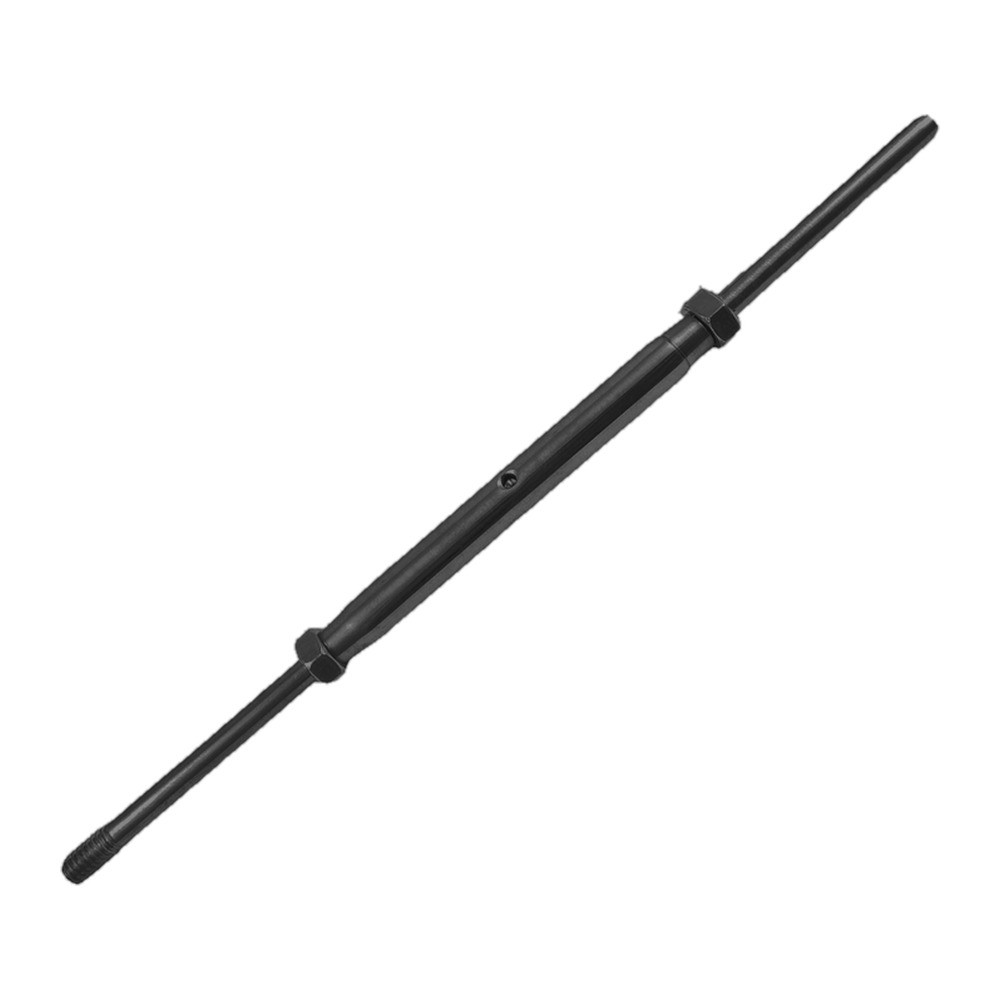

  • Black oxide closed body turnbuckle with a rod on one end and a life line stud on the other
  • Hand swage stud for 1/8 in. or 3/16 in. cable
  • 1/4 in.-20 thread (standard thread, UNC)
  • Rod right hand thread, life line stud left hand thread
  • T316 stainless steel with a black oxide finish
  • Price is per each.
  • Shipping calculated at checkout
SKU: N/A Category:

Description

Black oxide rod and life line stud closed body (pipe body) turnbuckle in T316 stainless steel for 1/8 in. or 3/16 in. cable, with a hand swage stud. The threaded rod end has a right hand thread and the life line stud end has a left hand thread. The drawing and table below give the dimensions.

Tensioning: With a left hand thread on the stud end, turn the turnbuckle body counterclockwise to tension.

Dimensions by Size

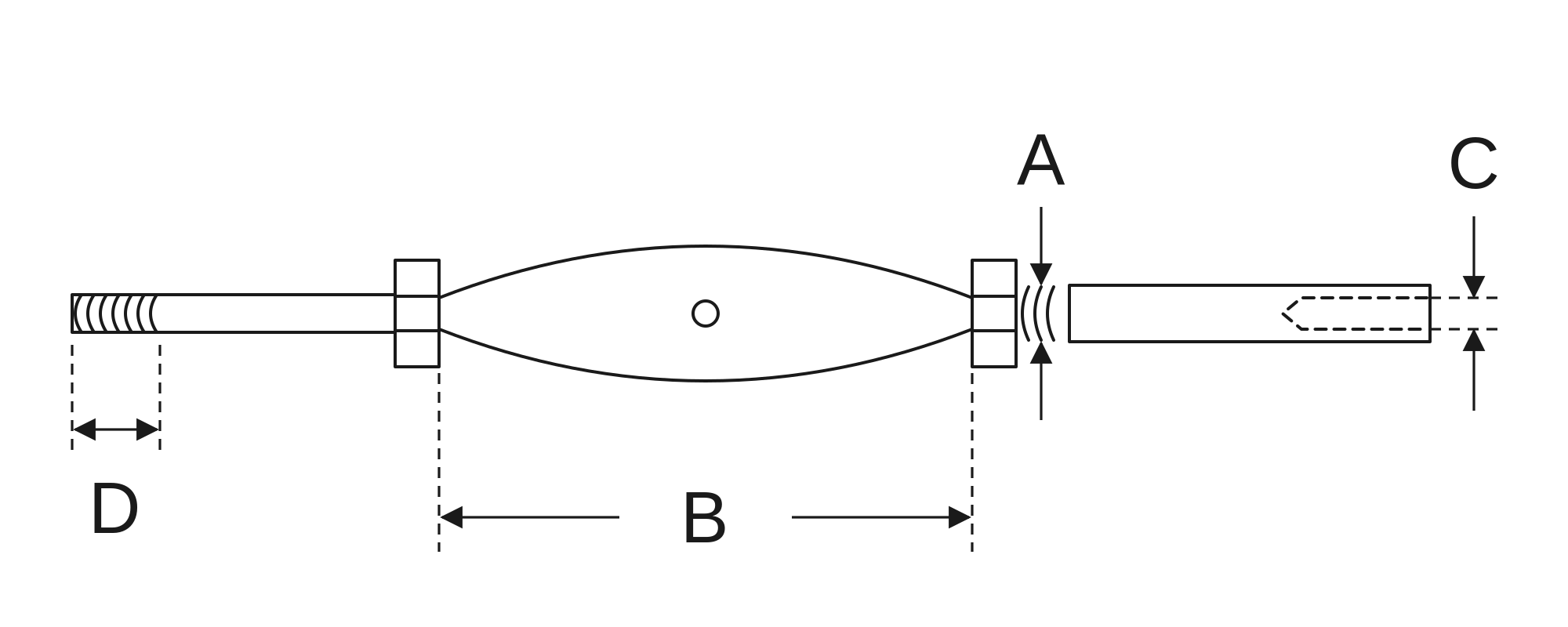

Black oxide rod and life line stud with pipe body turnbuckle dimension drawing

Part No. C: Cable size A: Thread B D
MT6PBHLRST14-18BK 1/8″ 1/4″-20 3-3/4″ 1/2″
MT6PBHLRST14-316ABK 3/16″ 1/4″-20 3-3/4″ 1/2″

Additional information

Weight N/A
Cable Diameter

1/8 in., 3/16 in.
