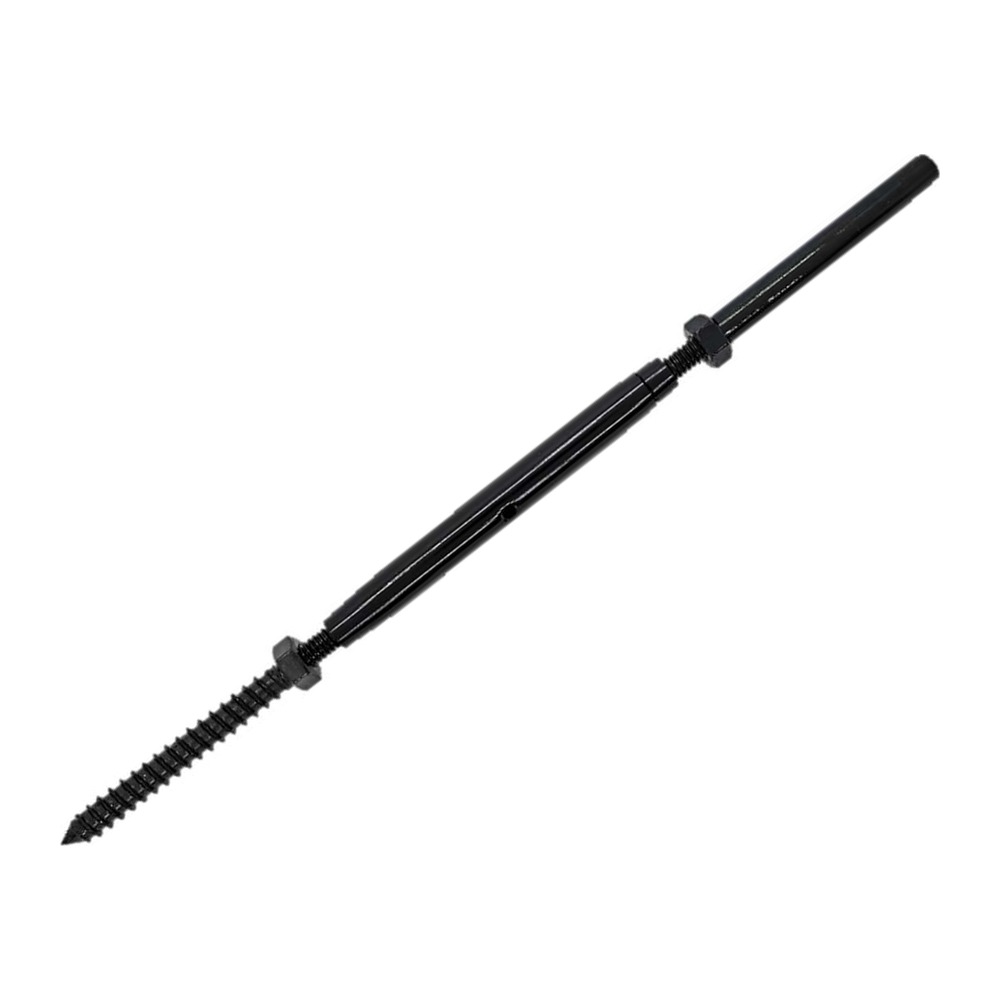

Black oxide lag and life line stud with turnbuckle

Black Oxide Lag and Life Line Stud with Turnbuckle – Hand Swage

Price range: $21.50 through $24.25

-

Black Oxide Lag and Life Line Stud with Turnbuckle – Hand Swage
  • Black oxide closed body turnbuckle with a lag on one end and a life line stud on the other
  • Hand swage stud for 1/8 in. or 3/16 in. cable
  • 1/4 in.-20 thread (standard thread, UNC)
  • Lag right hand thread, life line stud left hand thread
  • T316 stainless steel with a black oxide finish
  • Price is per each.
  • Shipping calculated at checkout
SKU: N/A Category:

Description

Black oxide lag and life line stud closed body turnbuckle in T316 stainless steel for 1/8 in. or 3/16 in. cable, with a hand swage stud. The lag (hanger bolt) end has a right hand thread and the life line stud end has a left hand thread. The drawing and table below give the dimensions.

Tensioning: With a left hand thread on the stud end, turn the turnbuckle body counterclockwise to tension.

Dimensions by Size

Black oxide lag and life line stud turnbuckle dimension drawing

Part No. C: Cable size A: Thread B
MT6PBHLLST14-18ABK 1/8″ 1/4″-20 3-3/4″
MT6PBHLLST14-316ABK 3/16″ 1/4″-20 3-3/4″

Additional information

Weight N/A
Cable Diameter

1/8 in., 3/16 in.
