Description

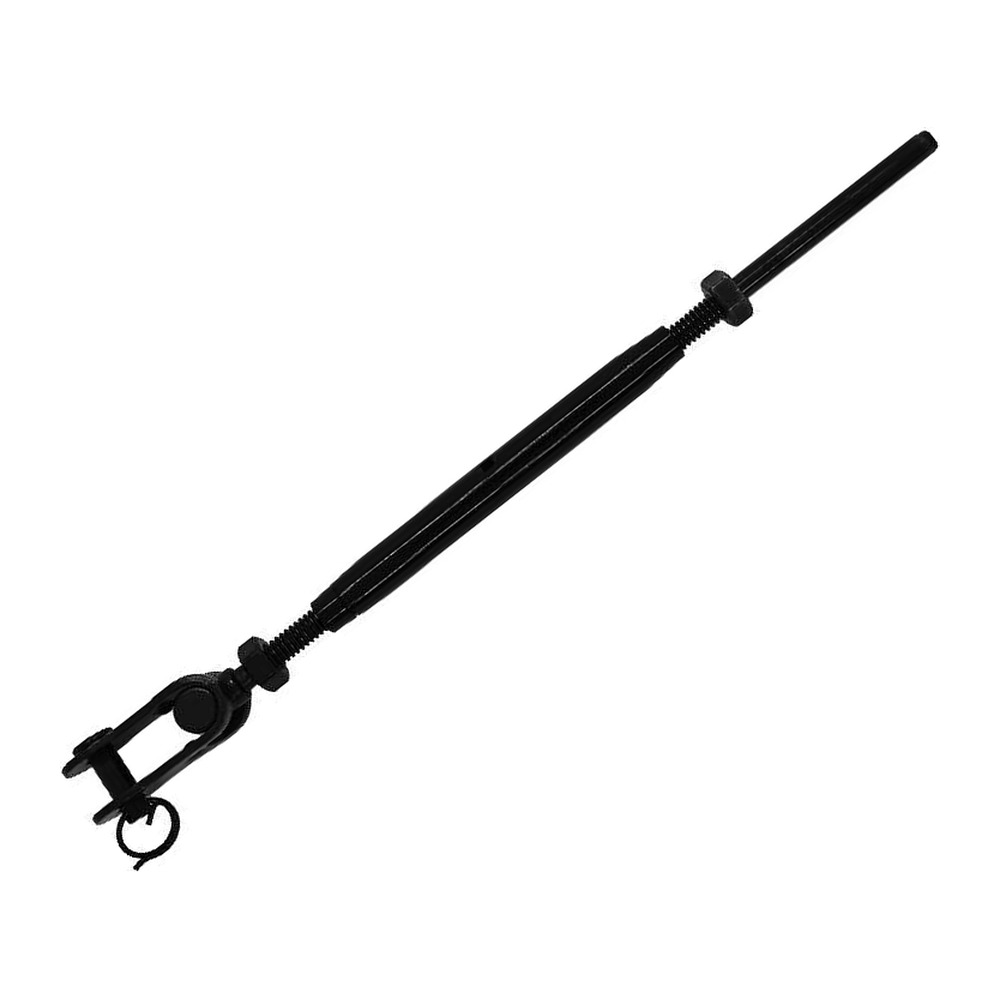

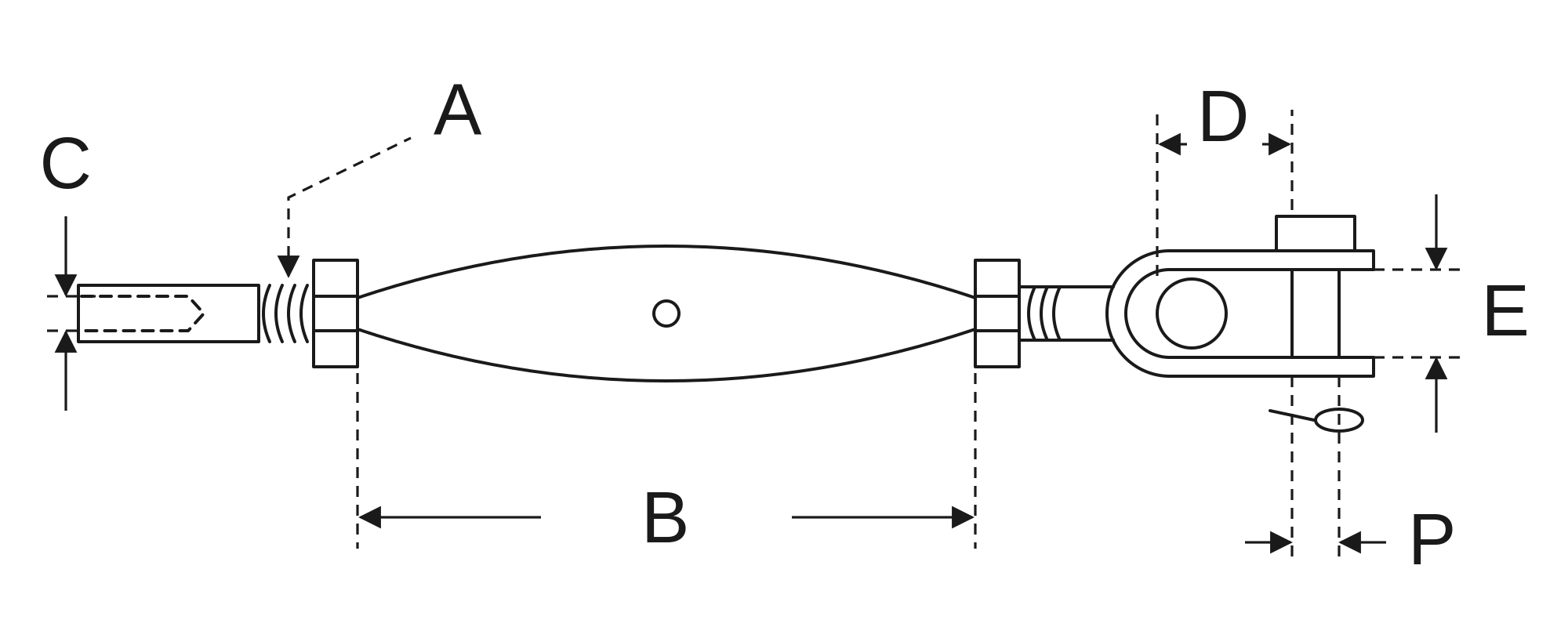

Black oxide toggle and life line stud closed body turnbuckle in T316 stainless steel for 1/8 in. or 3/16 in. cable, with a hand swage stud. The toggle end has a right hand thread and the life line stud end has a left hand thread. The drawing and table below give the dimensions.
Tensioning: With a left hand thread on the stud end, turn the turnbuckle body counterclockwise to tension.
Dimensions by Size
| Part No. | C: Cable size | A: Thread | B | D | E | P |
|---|---|---|---|---|---|---|
| MT6PBHLTST14-18ABK | 1/8″ | 1/4″-20 | 3-3/4″ | 0.70″ | 0.41″ | 0.23″ |
| MT6PBHLTST14-316ABK | 3/16″ | 1/4″-20 | 3-3/4″ | 0.70″ | 0.41″ | 0.23″ |
All dimensions in inches unless noted. C = Cable size. A = Thread. B, D, E and P are as shown on the drawing. Each row is one cable size.
