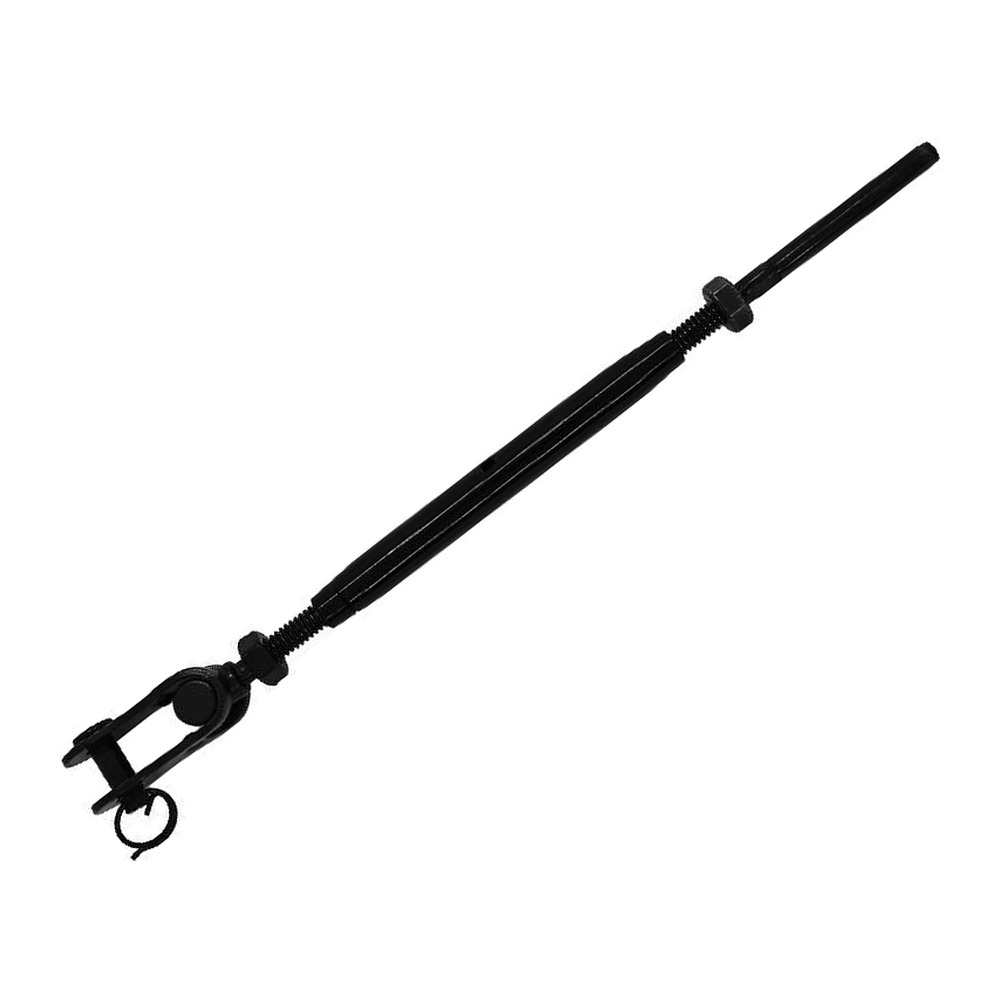

Black oxide toggle jaw and wrench flat stud with turnbuckle

Black Oxide Toggle and Wrench Flat Stud with Turnbuckle – Hand Swage

Price range: $18.92 through $20.47

-

Black Oxide Toggle and Wrench Flat Stud with Turnbuckle – Hand Swage
  • Black oxide closed body turnbuckle with a toggle on one end and a wrench flat stud on the other
  • Hand swage stud for 1/8 in. or 3/16 in. cable
  • 1/4 in.-20 thread (standard thread, UNC)
  • Toggle right hand thread, wrench flat stud left hand thread
  • T316 stainless steel with a black oxide finish
  • Price is per each.
  • Shipping calculated at checkout
SKU: N/A Category:

Description

Black oxide toggle and wrench flat stud closed body turnbuckle in T316 stainless steel for 1/8 in. or 3/16 in. cable, with a hand swage stud. The toggle end has a right hand thread and the wrench flat stud end has a left hand thread. The drawing and table below give the dimensions.

Tensioning: With a left hand thread on the stud end, turn the turnbuckle body counterclockwise to tension.

Dimensions by Size

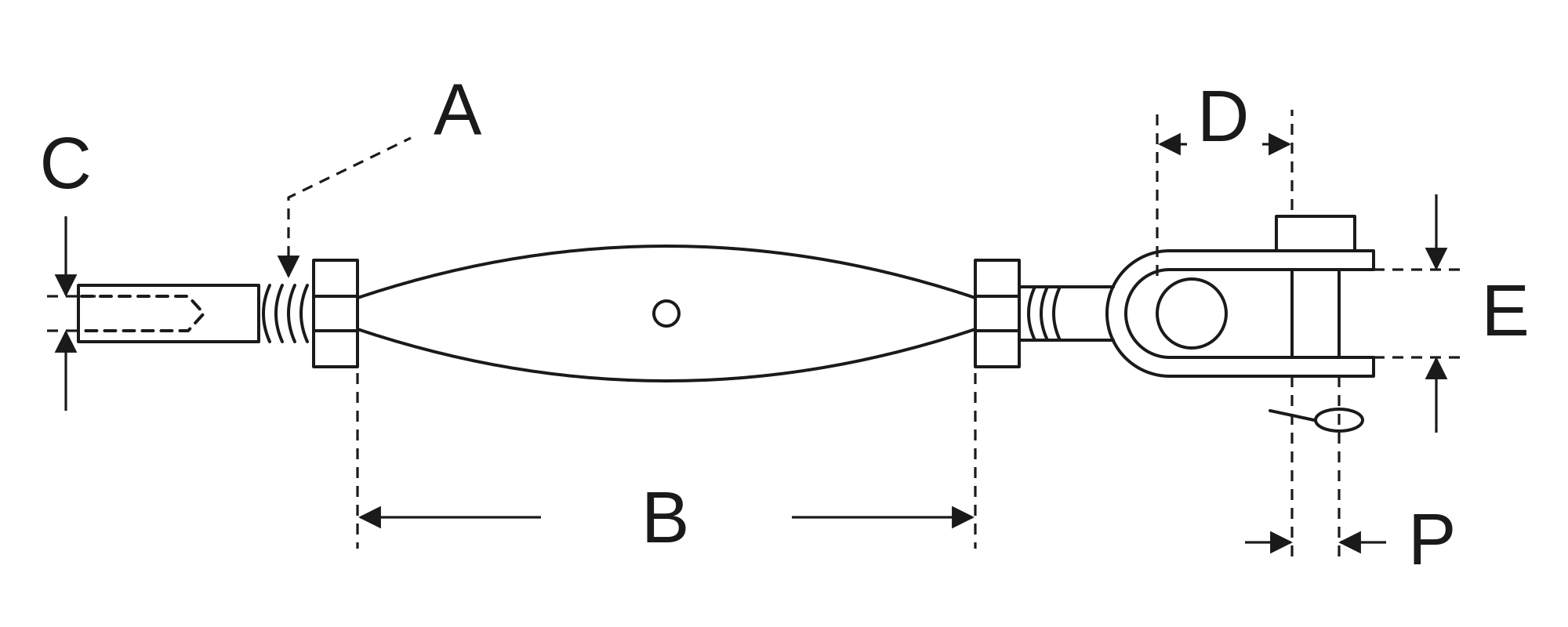

Black oxide toggle and wrench flat stud with turnbuckle dimension drawing

Part No. C: Cable size A: Thread B D E P
MT6PBHSTST14-18BK 1/8″ 1/4″-20 3-3/4″ 0.70″ 0.41″ 0.23″
MT6PBHSTST14-316ABK 3/16″ 1/4″-20 3-3/4″ 0.70″ 0.41″ 0.23″

All dimensions in inches unless noted. C = Cable size. A = Thread. B, D, E and P are as shown on the drawing. Each row is one cable size.

Additional information

Weight N/A
Cable Diameter

1/8 in., 3/16 in.
