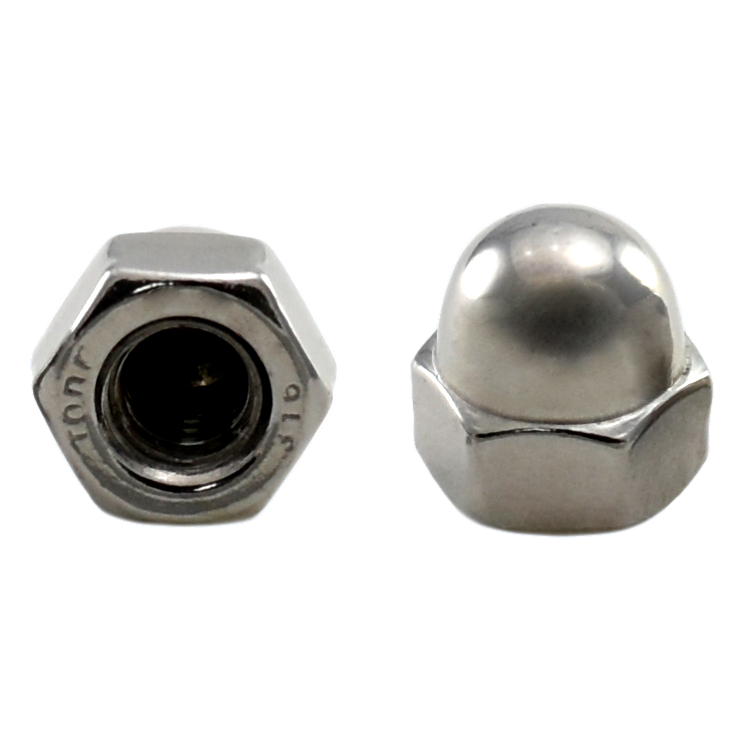

Stainless steel acorn cap nut

Cap (Acorn) Nut

Price range: $0.46 through $4.39

-

Stainless Steel Acorn (Cap) Nut – T316
  • Use with threaded fittings as a decorative end cap
  • Fits 1/4″-20, 5/16″-18, 3/8″-16, 1/2″-13 and 5/8″-11 threads (UNC)
  • Left hand or right hand thread
  • T316 Marine Grade Stainless Steel – Excellent Corrosion Resistance
  • Price is per each.
  • Shipping calculated at checkout
SKU: N/A Categories: ,

Description

Stainless steel acorn (cap) nut in T316 marine grade stainless steel, with left hand and right hand threads. The drawing and table below give the dimensions for each thread size.

Dimensions by Size

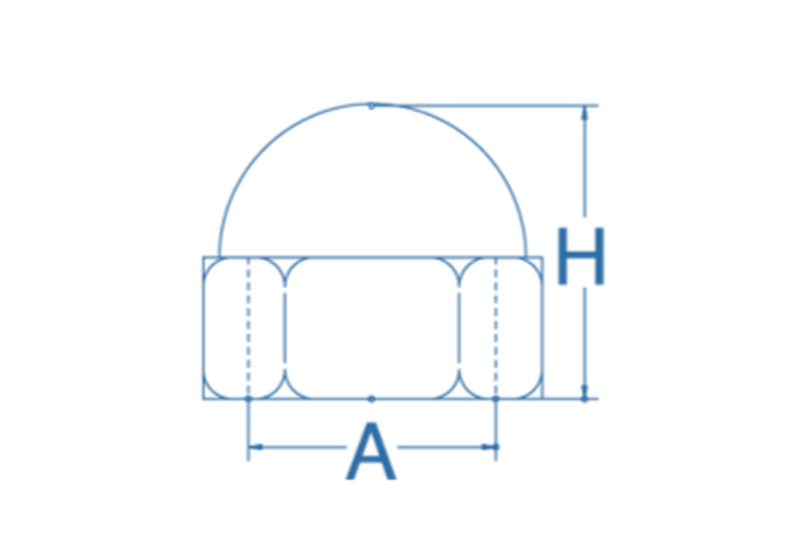

Stainless Steel Cap (Acorn) Nut - T316 dimension drawing

Part No. Thread direction A H
MT6CPNUT-14L Left Hand 1/4″-20 1/2″
MT6CPNUT-14R Right Hand 1/4″-20 1/2″
MT6CPNUT-516L Left Hand 5/16″-18 9/16″
MT6CPNUT-516R Right Hand 5/16″-18 9/16″
MT6CPNUT-38L Left Hand 3/8″-16 3/4″
MT6CPNUT-38R Right Hand 3/8″-16 3/4″
MT6CPNUT-12L Left Hand 1/2″-13 13/16″
MT6CPNUT-12R Right Hand 1/2″-13 13/16″
MT6CPNUT-58L Left Hand 5/8″-11 1″
MT6CPNUT-58R Right Hand 5/8″-11 1″

All dimensions in inches unless noted. A and H are as shown on the drawing.

Additional information

Weight 0.00 oz
Dimensions 0.00 × 0.00 × 0.00 in
Thread Direction

Right Hand, Left Hand
Size

1/4 in.-20, 5/16 in.-18, 3/8 in.-16, 1/2 in.-13, 5/8 in.-11
