Description

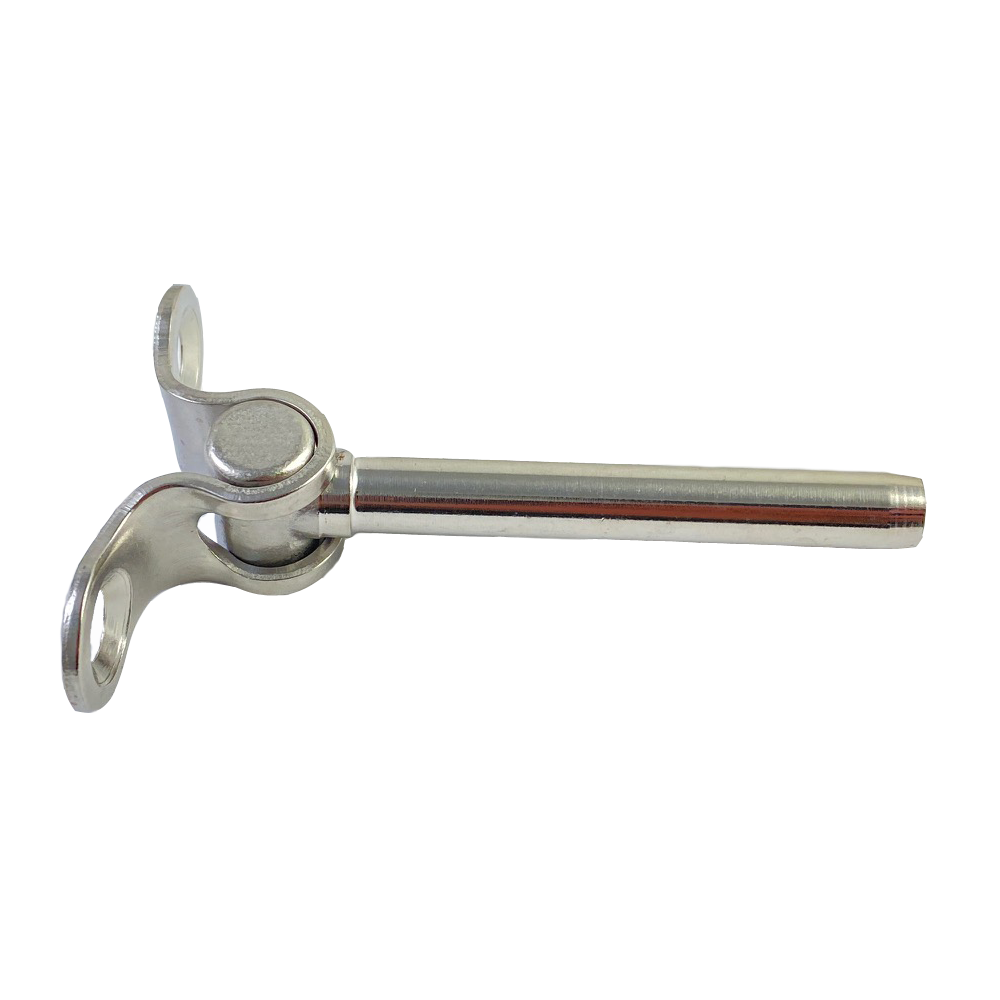

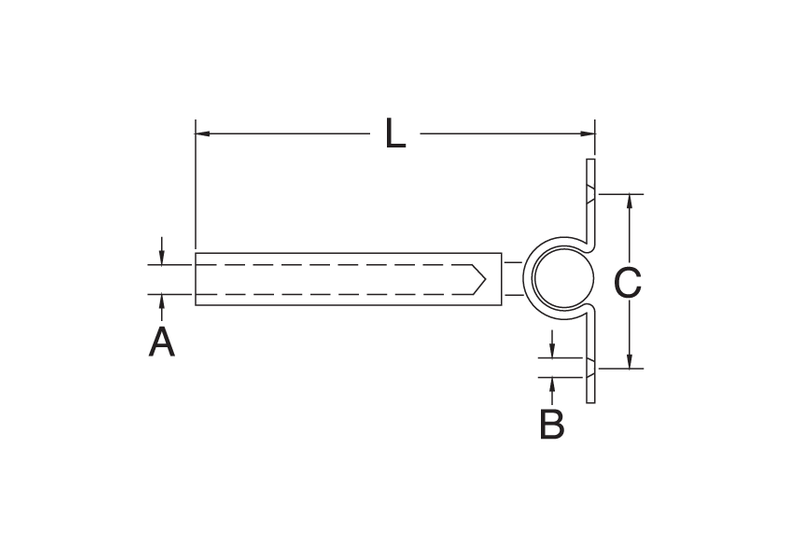

Hand swage and machine swage deck toggle with cable stud in T316 marine grade stainless steel, available for 1/8 in., 3/16 in. and 1/4 in. cable. The drawing and table below give the dimensions for each swage type and cable diameter.
Dimensions by Size
| Part No. | Swage Type | A: Cable size | B | C | L |
|---|---|---|---|---|---|
| MT6HDTST-18 | Hand swage | 1/8″ | 1/4″ | 1-3/8″ | 3″ |
| MT6HDTST-316 | Hand swage | 3/16″ | 1/4″ | 1-3/8″ | 3″ |
| MT6HDTST-14 | Hand swage | 1/4″ | 3/8″ | 1-1/2″ | 5″ |
| MT6MDTST-18 | Machine swage | 1/8″ | 1/4″ | 1-3/8″ | 3″ |
| MT6MDTST-316 | Machine swage | 3/16″ | 1/4″ | 1-3/8″ | 3″ |
| MT6MDTST-14 | Machine swage | 1/4″ | 3/8″ | 1-1/2″ | 5″ |
All dimensions in inches unless noted. A = Cable size. B, C and L are as shown on the drawing.
