Description

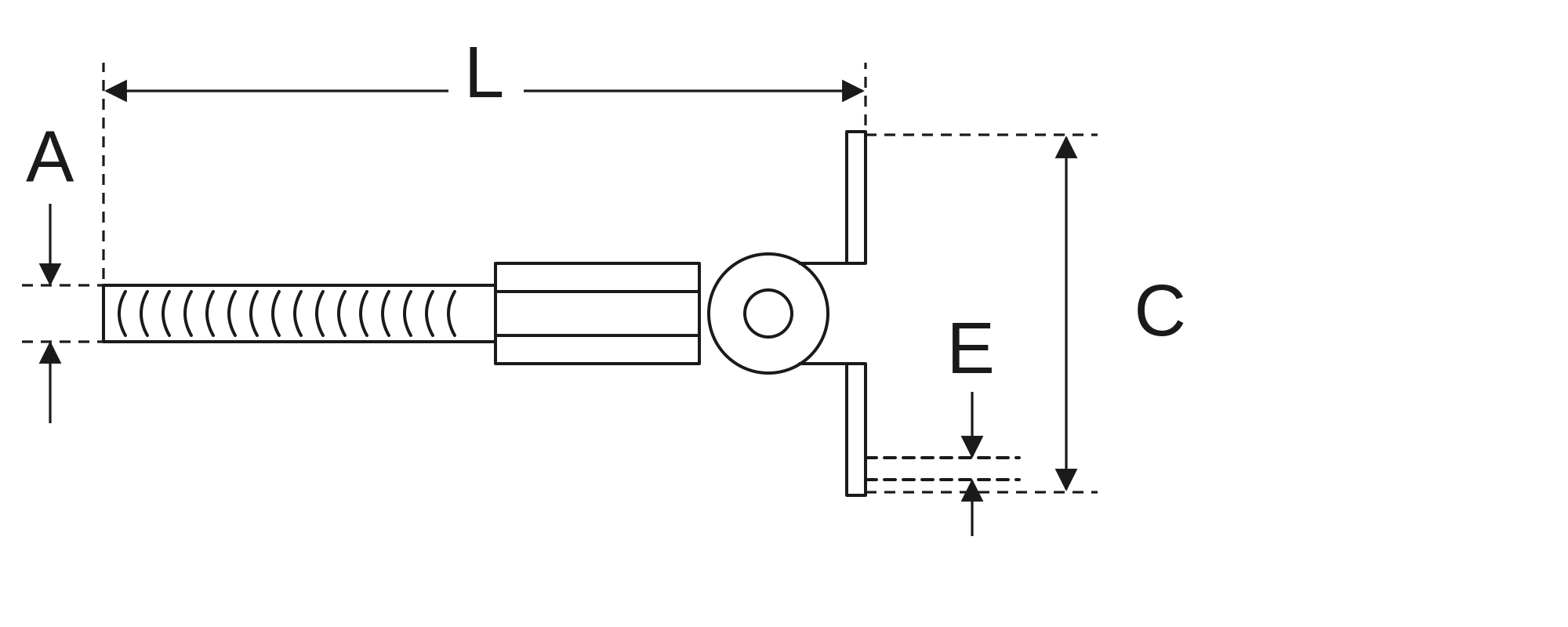

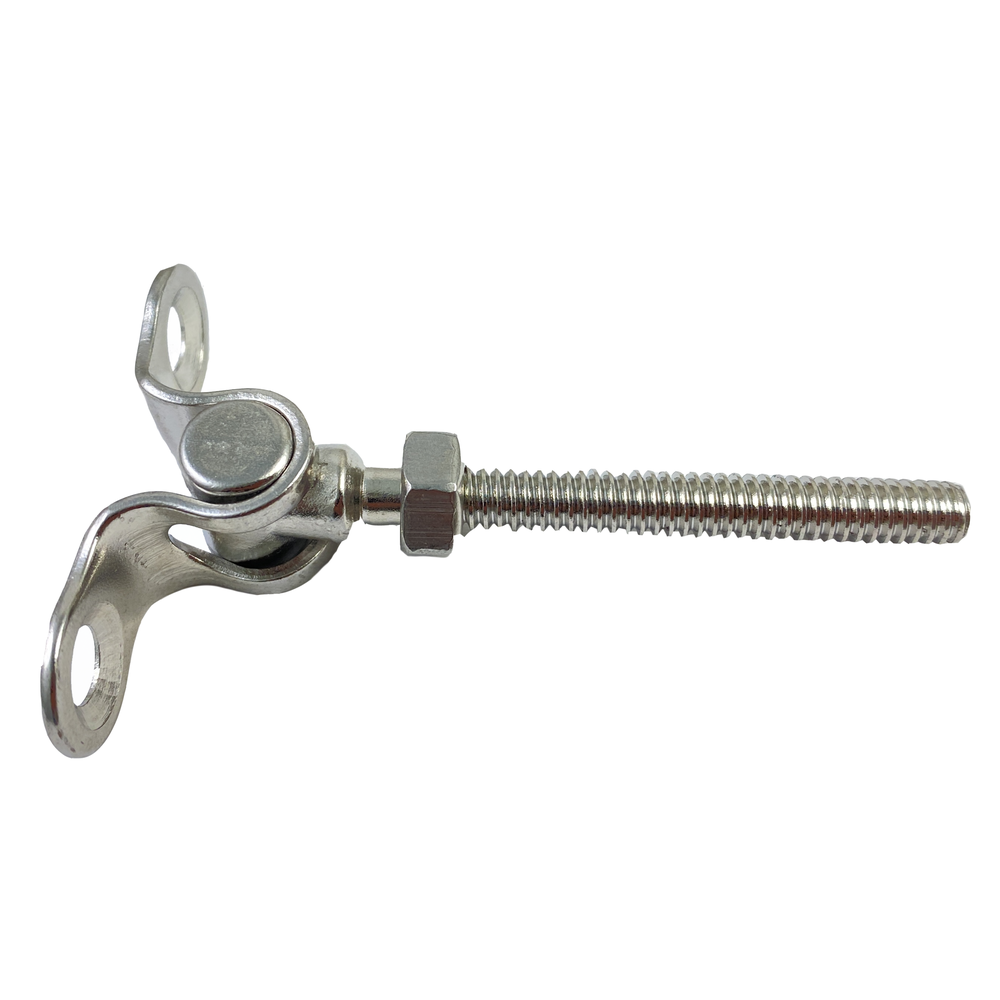

Threaded deck toggle in T316 stainless steel, with a left hand or right hand threaded end in 1/4 in. or 5/16 in. thread (1/4 in. also in fine thread). Each toggle comes with 1 hex nut. Choose the thread direction, thread size and thread. The drawing and table below give the dimensions.
Threads into one end of the Closed Body Turnbuckle (Pipe Body). Use a Life Line Stud or Wrench Flat Stud on the other end. For 1/4 in.-28 fine thread, use a fine thread Life Line Stud.
Dimensions by Size
| Part No. | Thread direction | A: Thread | C | E | L |
|---|---|---|---|---|---|
| MT6DTHR-14R | Right Hand | 1/4″-20 | 1.30″ | 0.25″ | 3″ |
| MT6DTHR-14L | Left Hand | 1/4″-20 | 1.30″ | 0.25″ | 3″ |
| MT6DTHR-14UNFR | Right Hand | 1/4″-28 | 1.30″ | 0.25″ | 3″ |
| MT6DTHR-14UNFL | Left Hand | 1/4″-28 | 1.30″ | 0.25″ | 3″ |
| MT6DTHR-516R | Right Hand | 5/16″-18 | 1.65″ | 0.36″ | 3.50″ |
| MT6DTHR-516L | Left Hand | 5/16″-18 | 1.65″ | 0.36″ | 3.50″ |
All dimensions in inches unless noted. A = Thread. C, E and L are as shown on the drawing. Each row is one thread direction and thread size. Each toggle comes with 1 hex nut.
