Description

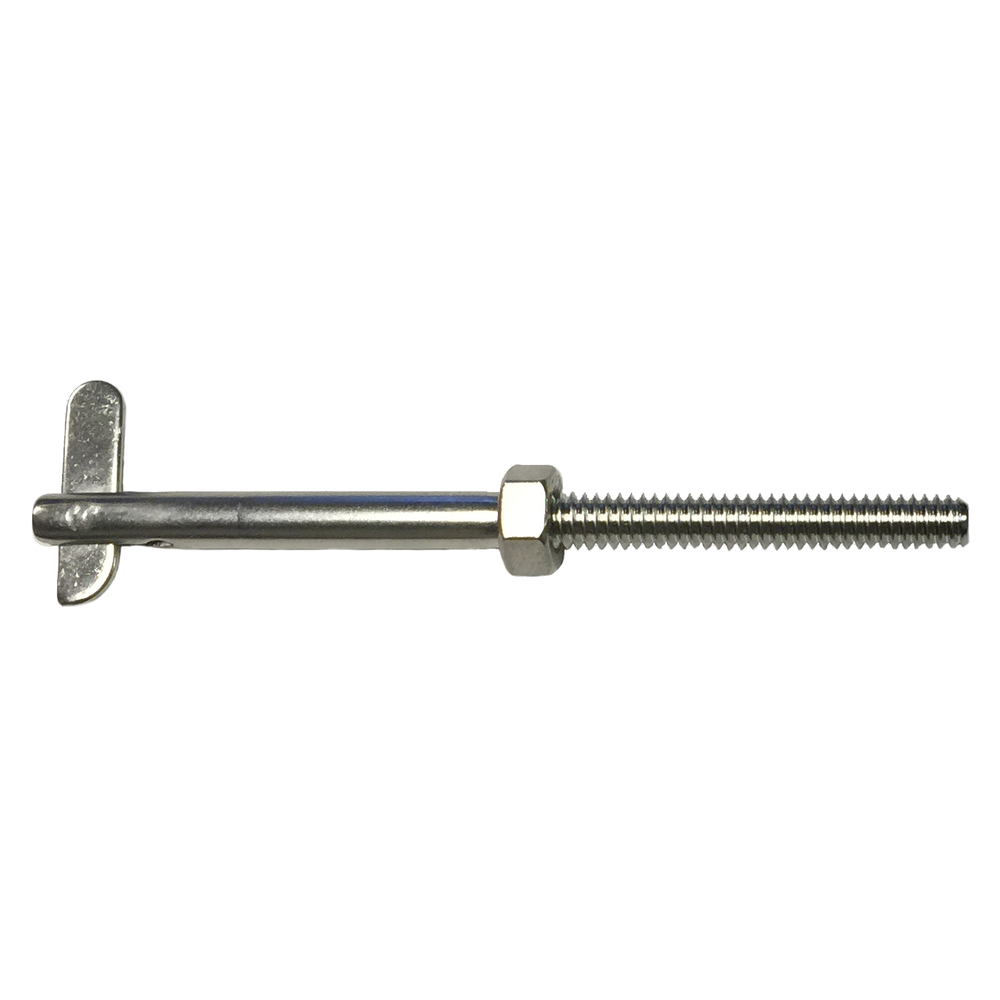

Threaded drop pin in T316 stainless steel with a 1/4 in.-20 thread, right hand or left hand. Comes with 1 hex nut of the same thread direction. Choose the thread direction. The drawing and table below give the dimensions.
Threads into one end of the Closed Body Turnbuckle (Pipe Body). Use a Life Line Stud or Wrench Flat Stud on the other end. Drop pins must be installed inside a cable frame, on ground level or deck projects. Not for overhead or human support.
Threaded drop pins must be installed inside a cable frame. They can be used on ground level or deck projects. Not for overhead or human support.
Dimensions by Size
| Part No. | Thread direction | B: Thread | A | C | D |
|---|---|---|---|---|---|
| MT6DPTHR-14R | Right Hand | 1/4″-20 | 1″ | 1-7/8″ | 2-1/16″ |
| MT6DPTHR-14L | Left Hand | 1/4″-20 | 1″ | 1-7/8″ | 2-1/16″ |

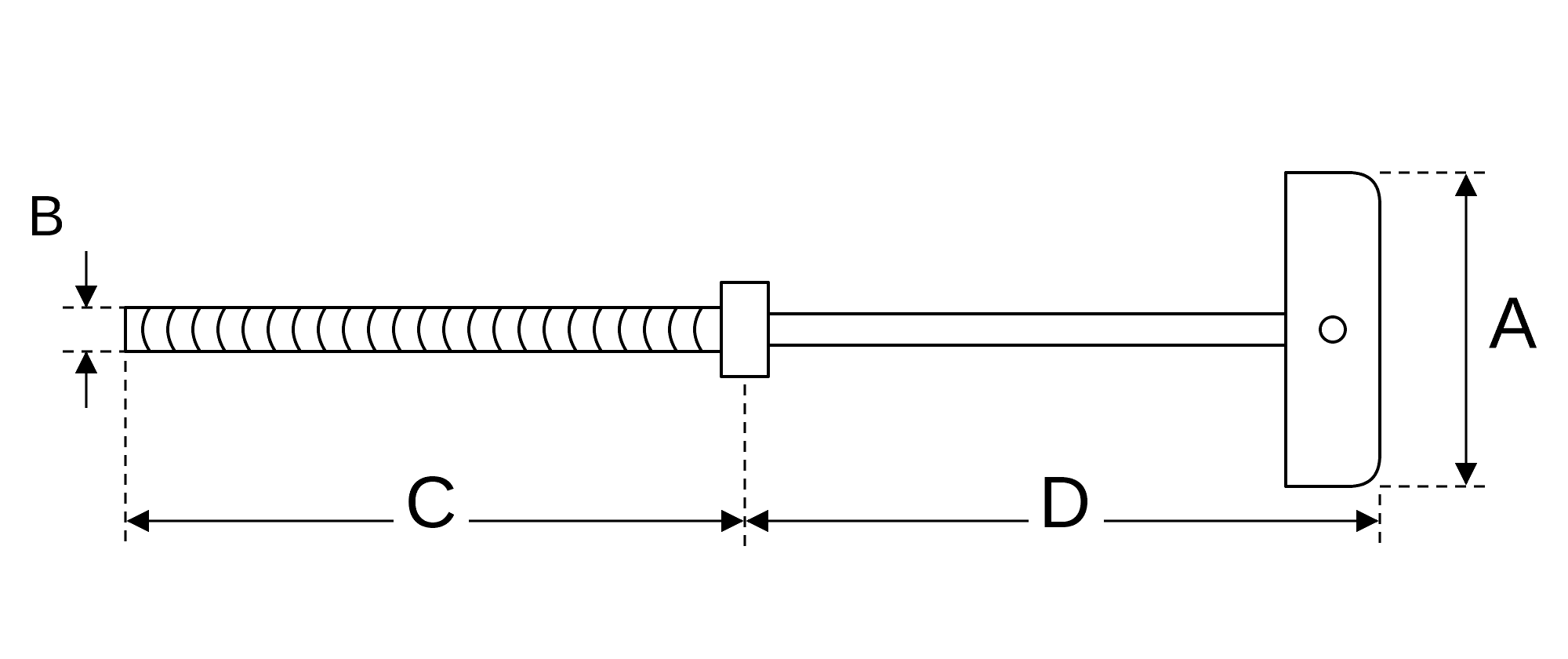

All dimensions in inches unless noted. B = Thread. A, C and D are as shown on the drawing. Each row is one thread direction.
