Description

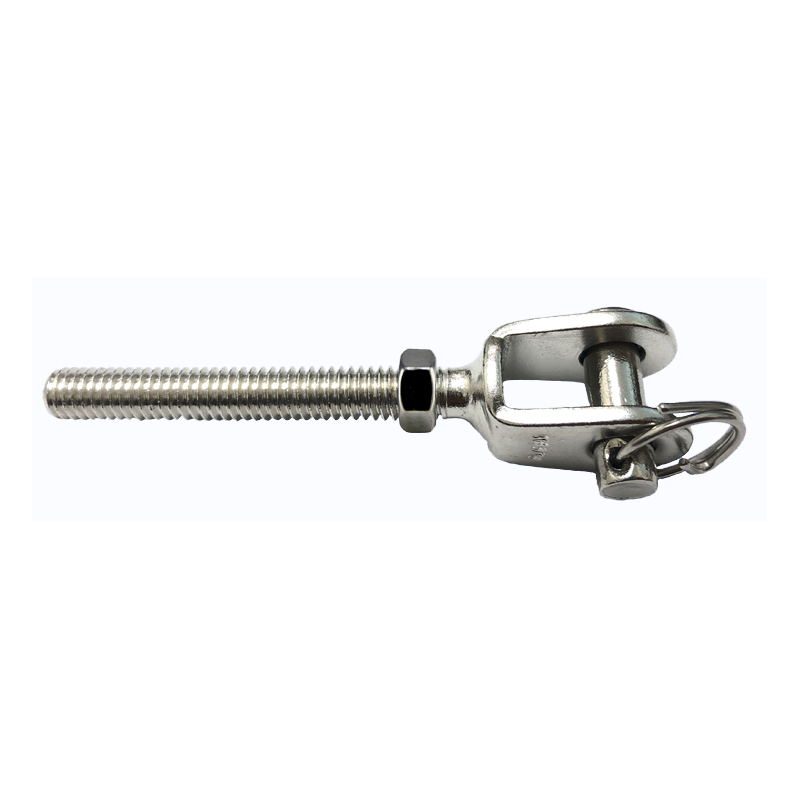

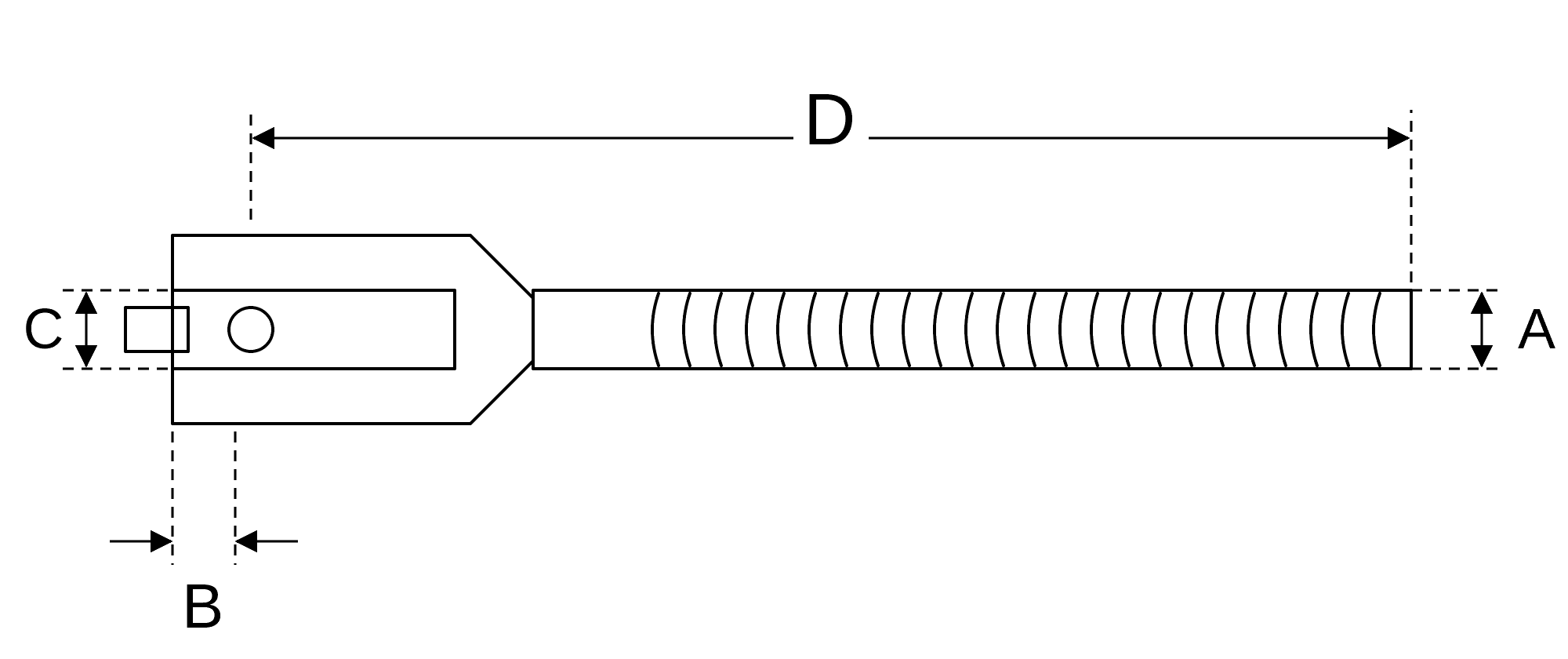

Threaded jaw in T316 stainless steel with a standard (coarse) machine thread, 1/4 in. through 3/4 in., right hand or left hand. Choose the thread size and thread direction. The drawing and table below give the dimensions.
Threads into one end of the Closed Body Turnbuckle (Pipe Body). Use a Life Line Stud or Wrench Flat Stud on the other end. Fits the 1/4 in.-20 through 5/8 in.-11 sizes; for 1/2 in. and 5/8 in., use a Wrench Flat Stud.
Dimensions by Size
| Part No. | Thread direction | A: Thread | B | C | D | Includes |
|---|---|---|---|---|---|---|
| MT6JTHR-14R | Right Hand | 1/4″-20 | 0.25″ | 0.42″ | 2.90″ | |
| MT6JTHR-14L | Left Hand | 1/4″-20 | 0.25″ | 0.42″ | 2.90″ | |
| MT6JTHR-516R | Right Hand | 5/16″-18 | 0.31″ | 0.45″ | 3.20″ | |
| MT6JTHR-516L | Left Hand | 5/16″-18 | 0.31″ | 0.45″ | 3.20″ | |
| MT6JTHR-38R | Right Hand | 3/8″-16 | 0.34″ | 0.50″ | 4.30″ | |
| MT6JTHR-38L | Left Hand | 3/8″-16 | 0.34″ | 0.50″ | 4.30″ | |
| MT6JTHR-12R | Right Hand | 1/2″-13 | 0.46″ | 0.58″ | 4.82″ | |
| MT6JTHR-12L | Left Hand | 1/2″-13 | 0.46″ | 0.58″ | 4.82″ | |
| MT6JTHR-58R | Right Hand | 5/8″-11 | 0.62″ | 0.75″ | 6.25″ | 1 hex nut and 1 flat washer |
| MT6JTHR-58L | Left Hand | 5/8″-11 | 0.62″ | 0.75″ | 6.25″ | |
| MT6JTHR-34R | Right Hand | 1 hex nut | ||||
| MT6JTHR-34L | Left Hand | 1 hex nut |
All dimensions in inches unless noted. A = Thread. B, C and D are as shown on the drawing. Each row is one part. The 3/4 in. dimensions are not yet available.
