Description

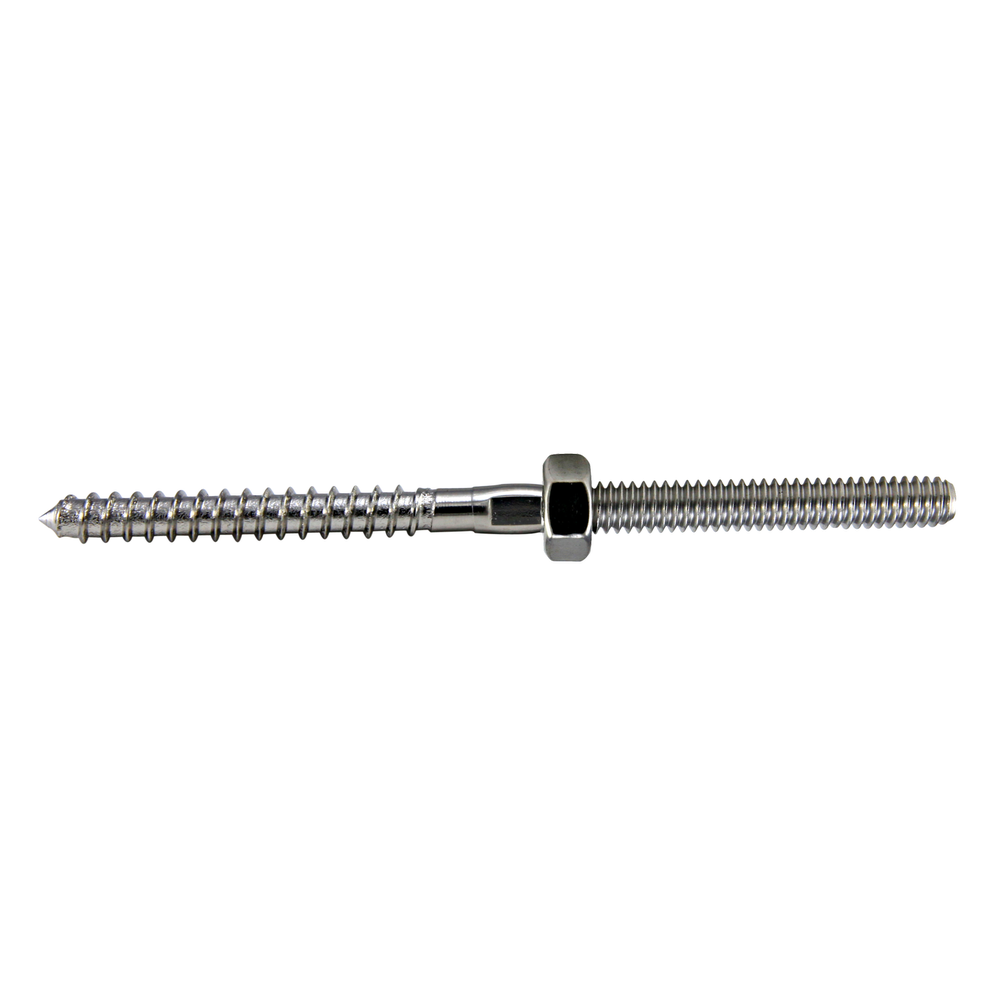

Threaded lag (hanger bolt) in T316 stainless steel, with a lag thread on one end and a 1/4 in.-20 or 5/16 in.-18 machine thread on the other. Hex nut not included. Right hand or left hand; both ends have the same thread direction. Choose the thread size and thread direction. The drawing and table below give the dimensions.
Threads into one end of the Closed Body Turnbuckle (Pipe Body). Use a Life Line Stud or Wrench Flat Stud on the other end.
Dimensions by Size
| Part No. | Thread direction | D: Thread | A | B | C |
|---|---|---|---|---|---|
| MT6LHR-14R | Right Hand | 1/4″-20 | 3-3/4″ | 1-3/4″ | 1-1/2″ |
| MT6LHR-14L | Left Hand | 1/4″-20 | 3-3/4″ | 1-3/4″ | 1-1/2″ |
| MT6LHR-516R | Right Hand | 5/16″-18 | 5-3/16″ | 2-7/32″ | 1-5/8″ |
| MT6LHR-516L | Left Hand | 5/16″-18 | 5-3/16″ | 2-7/32″ | 1-5/8″ |

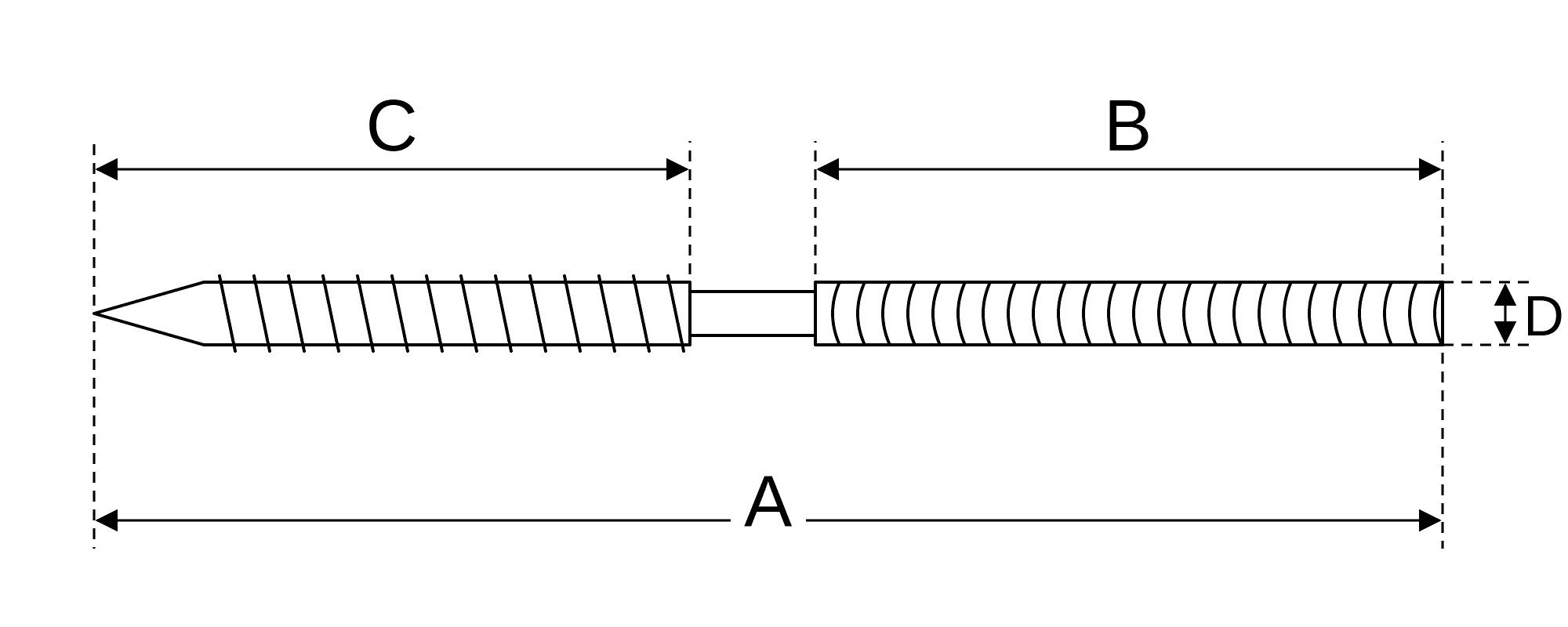

All dimensions in inches unless noted. D = Thread. A, B and C are as shown on the drawing. Each row is one part.
