Description

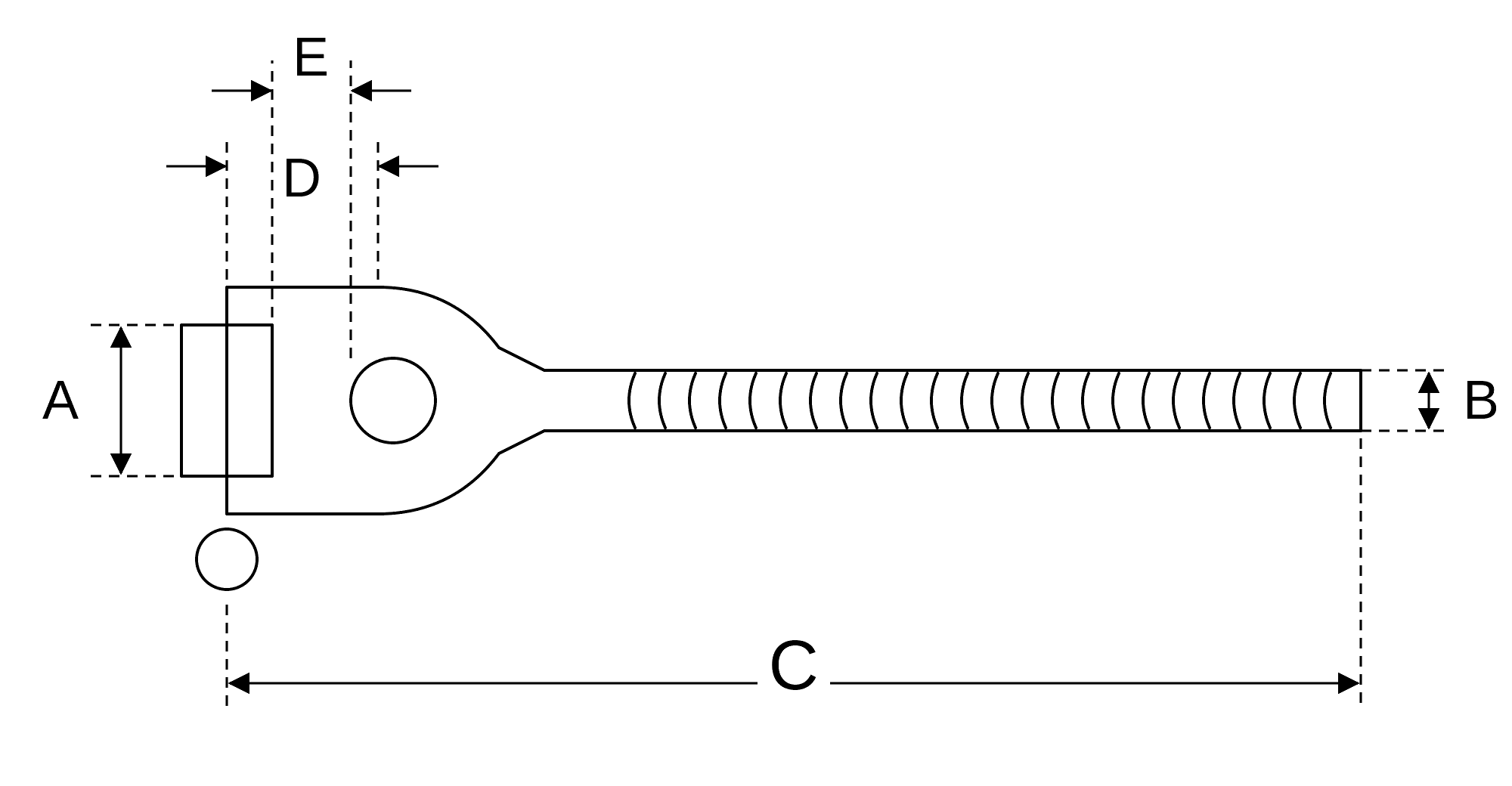

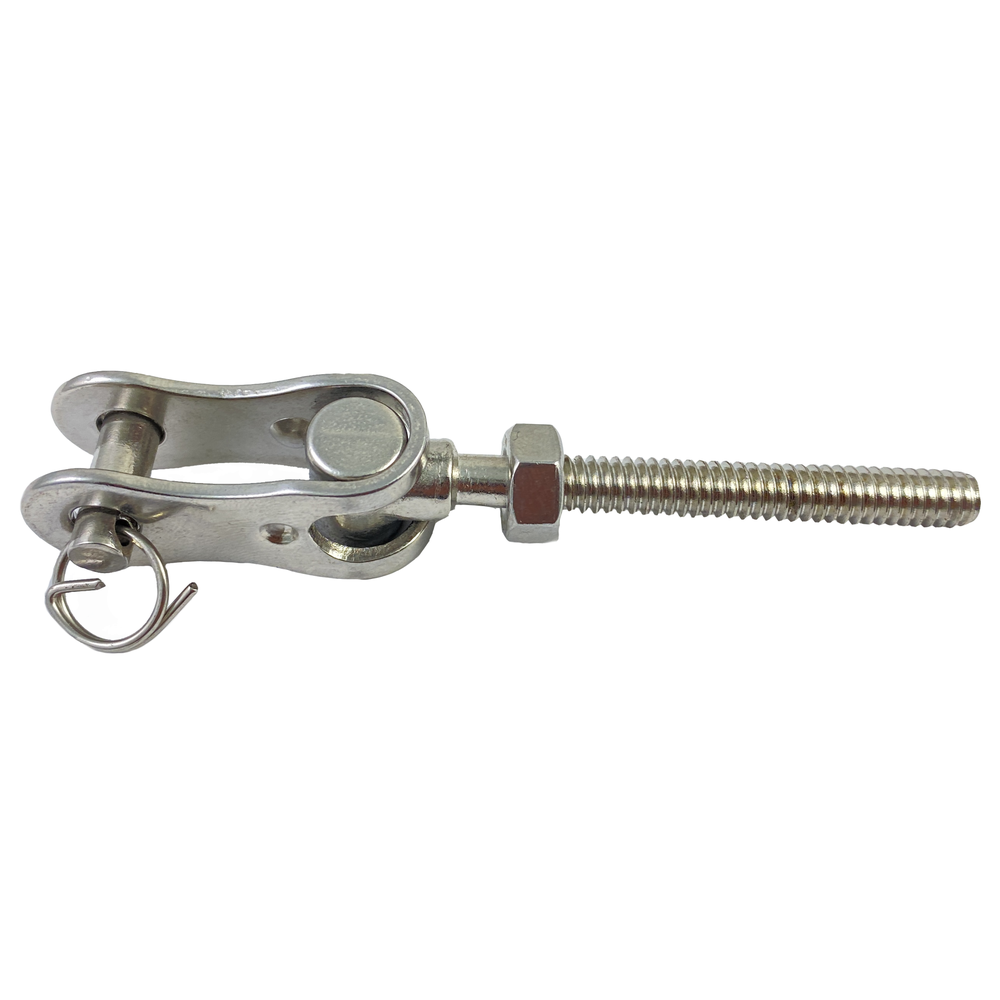

Threaded toggle in T316 stainless steel. Choose 1/4 in.-20 (coarse), 1/4 in.-28 (fine) or 5/16 in.-18 (coarse) thread in right hand or left hand, or 3/4 in. (coarse) right hand. Each toggle comes with 1 hex nut of the same thread direction. The drawing and table below give the dimensions.
Threads into one end of the Closed Body Turnbuckle (Pipe Body). Use a Life Line Stud or Wrench Flat Stud on the other end. For 1/4 in.-28, use a fine thread Life Line Stud. For 3/4 in., use a left hand Wrench Flat Stud.
Dimensions by Size
| Part No. | Thread direction | A | B: Thread | C | D | E |
|---|---|---|---|---|---|---|
| MT6TTHR-14R | Right Hand | 0.40″ | 1/4″-20 | 3.50″ | 0.23″ | 0.70″ |
| MT6TTHR-14L | Left Hand | 0.40″ | 1/4″-20 | 3.50″ | 0.23″ | 0.70″ |
| MT6TTHR-14UNFR | Right Hand | 0.40″ | 1/4″-28 | 3.50″ | 0.23″ | 0.70″ |
| MT6TTHR-14UNFL | Left Hand | 0.40″ | 1/4″-28 | 3.50″ | 0.23″ | 0.70″ |
| MT6TTHR-516R | Right Hand | 0.53″ | 5/16″-18 | 4″ | 0.31″ | 0.73″ |
| MT6TTHR-516L | Left Hand | 0.53″ | 5/16″-18 | 4″ | 0.31″ | 0.73″ |
| MT6TTHR-34R | Right Hand |
All dimensions in inches unless noted. B = Thread. A, C, D and E are as shown on the drawing. Each row is one part. The 3/4 in. dimensions are not yet available.
