Description

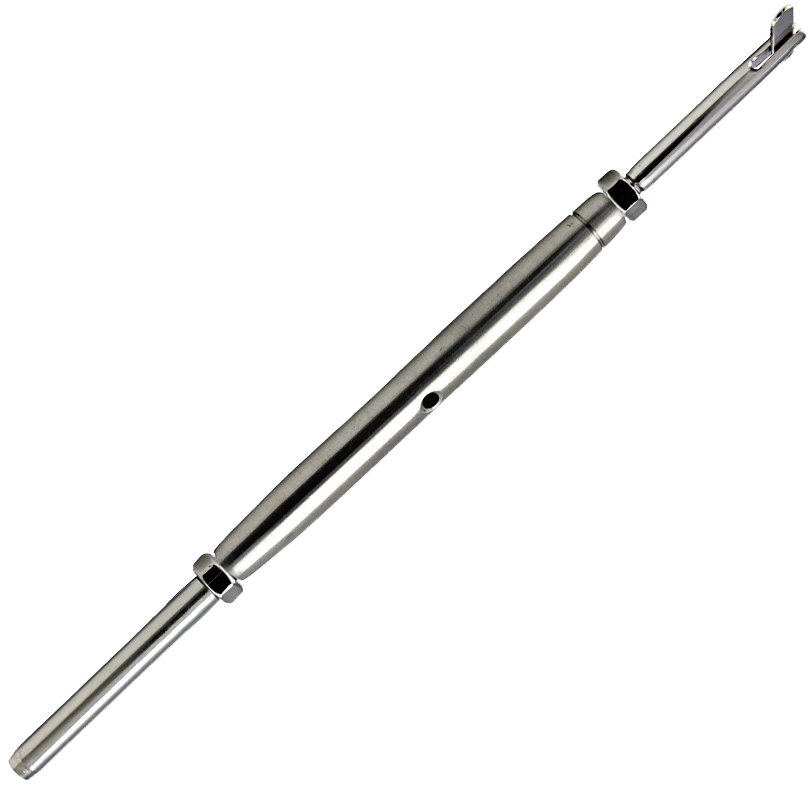

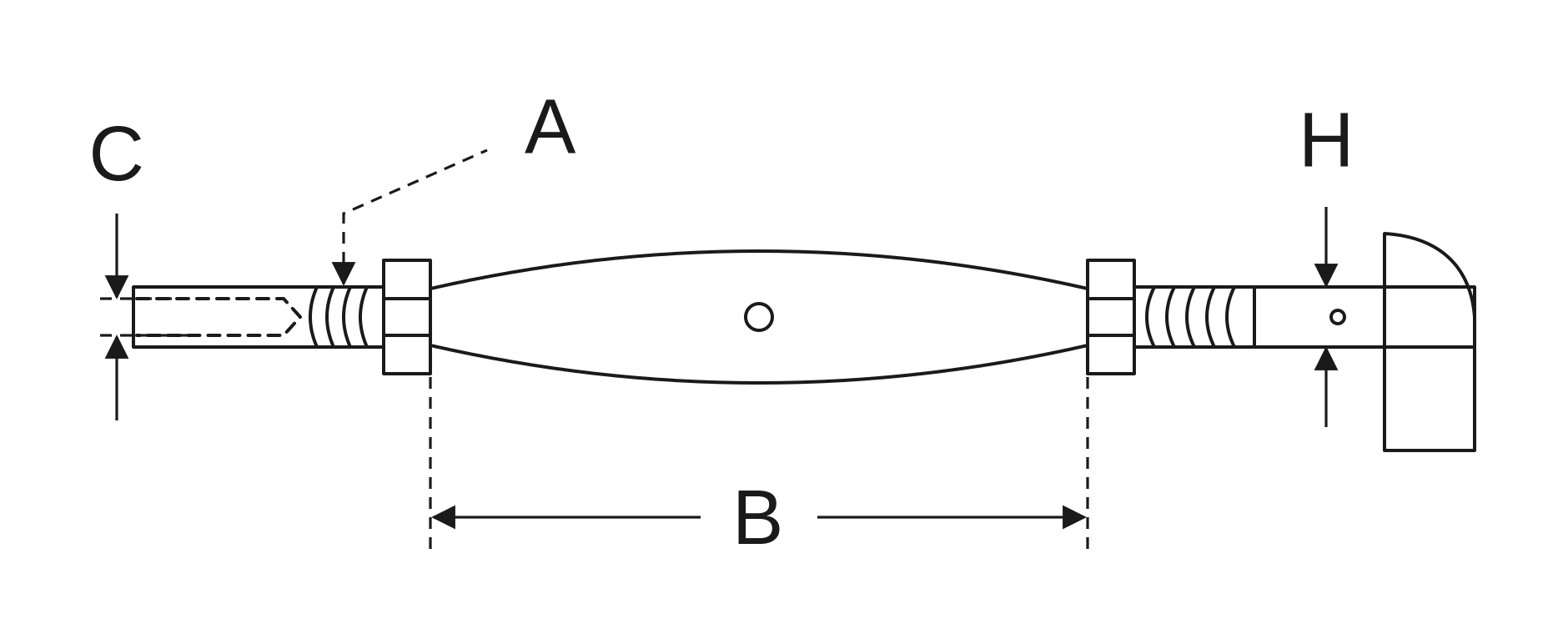

Drop pin and life line stud closed body turnbuckle in T316 stainless steel for 1/8 in. or 3/16 in. cable, with a hand swage or machine swage stud. Choose thread layout A or B to set which end has the right hand thread. The drawing and table below give the dimensions.
Recommended for ground level projects only. Not for overhead or human support. Can be used as an infill in a cable frame, but not by itself: it must be installed within a cable frame.
Dimensions by Size
| Part No. | Swage | C: Cable size | A: Thread | B | H |
|---|---|---|---|---|---|
| MT6PBHLDPST14-18A MT6PBHLDPST14-18B |
Hand Swage | 1/8″ | 1/4″-20 | 3-3/4″ | 0.212″ |
| MT6PBHLDPST14-316A MT6PBHLDPST14-316B |
Hand Swage | 3/16″ | 1/4″-20 | 3-3/4″ | 0.25″ |
| MT6PBMLDPST14-18A MT6PBMLDPST14-18B |
Machine Swage | 1/8″ | 1/4″-20 | 3-3/4″ | 0.212″ |
| MT6PBMLDPST14-316A MT6PBMLDPST14-316B |
Machine Swage | 3/16″ | 1/4″-20 | 3-3/4″ | 0.25″ |
All dimensions in inches unless noted. C = Cable size. A = Thread. B and H are as shown on the drawing. Each row applies to both thread layouts, A and B.
