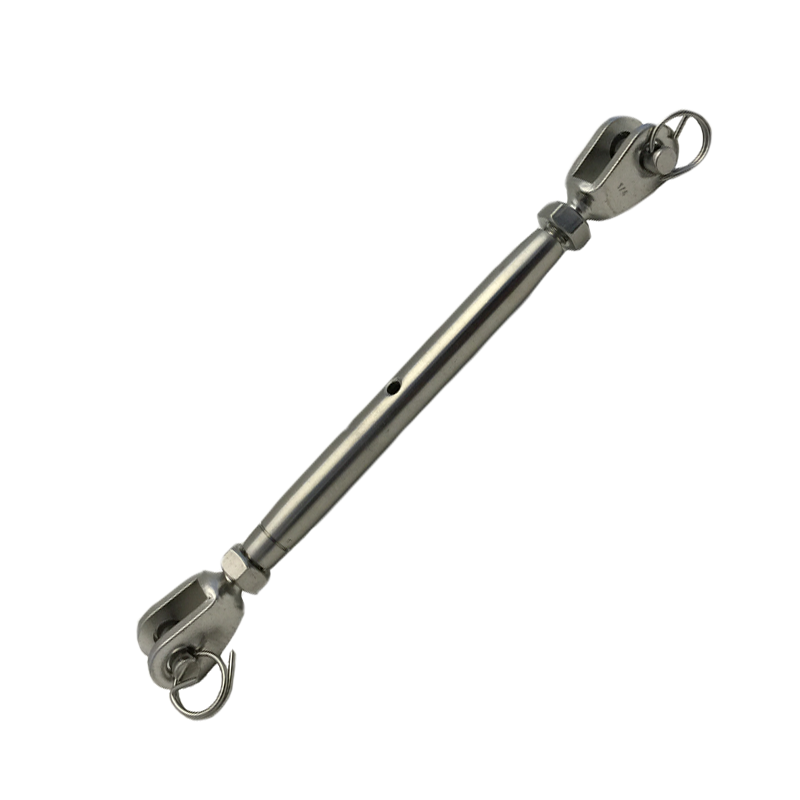

Stainless steel jaw and jaw turnbuckle with closed body

Jaw and Jaw Turnbuckle – Cable Railing

Price range: $9.41 through $24.63

-

Jaw and Jaw Turnbuckle
  • Closed body turnbuckle with a jaw on each end
  • T316 stainless steel construction
  • Five thread sizes: 3/16 in., 1/4 in., 5/16 in., 3/8 in. and 1/2 in. (standard thread, UNC)
  • Working load limit (WLL) of 350 lbs to 2,200 lbs depending on size (see table below)
  • Price is per each.
  • Shipping calculated at checkout
SKU: N/A Categories: ,

Description

Jaw and jaw closed body turnbuckle in T316 stainless steel, available in five thread sizes from 3/16 in. to 1/2 in. The drawing and table below give the dimensions and working load limit for each size.

Dimensions by Size

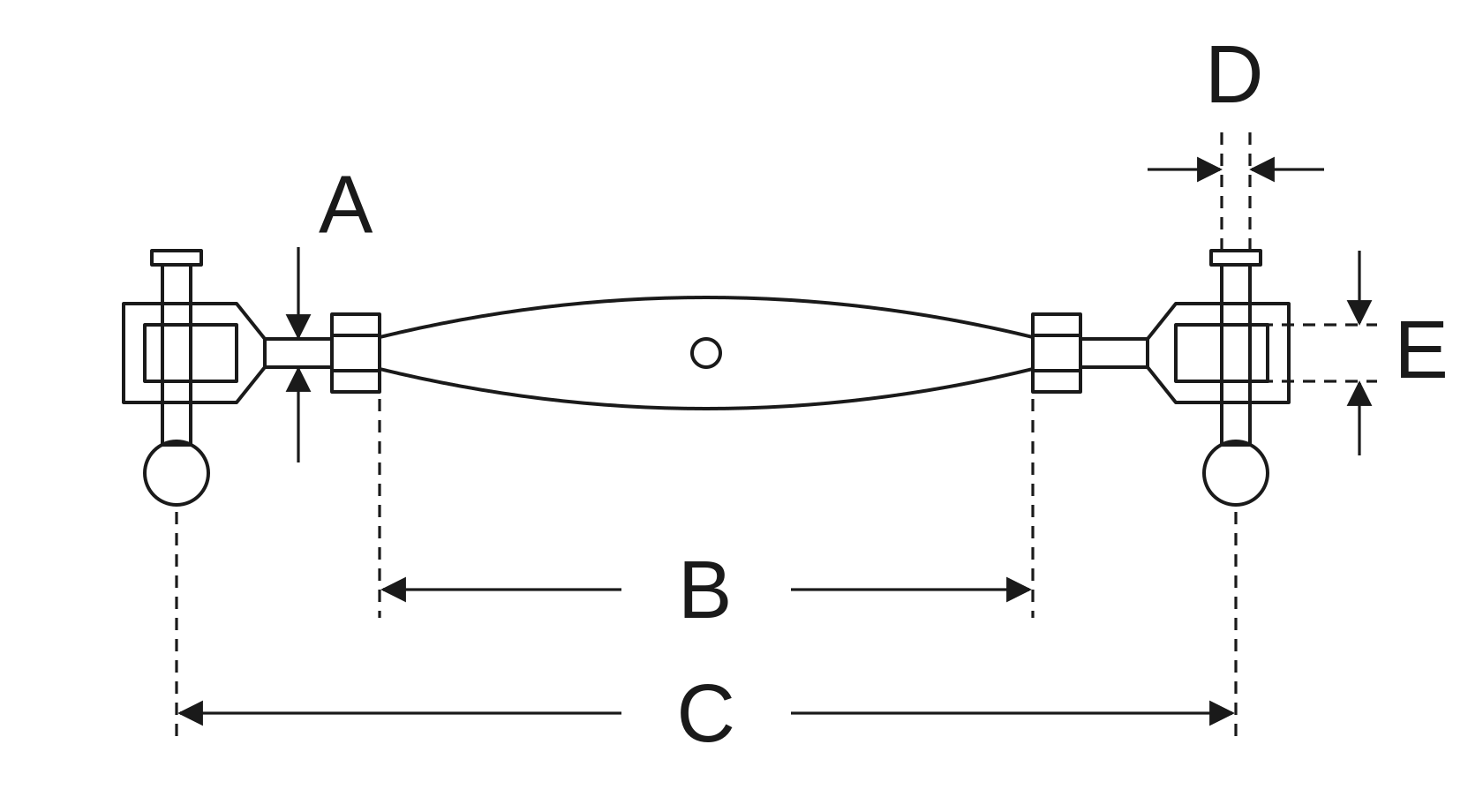

Jaw and Jaw Turnbuckle dimension drawing

Part No. A: Thread B C D E WLL (lbs)
MT6PBJJ-316 3/16″-24 3-1/4″ 5-3/16″ 3/16″ 1/4″ 350
MT6PBJJ-14 1/4″-20 3-3/4″ 5-7/8″ 1/4″ 11/32″ 460
MT6PBJJ-516 5/16″-18 4-5/32″ 6-3/8″ 5/16″ 3/8″ 900
MT6PBJJ-38 3/8″-16 4-3/4″ 8-3/4″ 3/8″ 1/2″ 1,300
MT6PBJJ-12 1/2″-13 5-7/8″ 9-5/8″ 1/2″ 19/32″ 2,200

All dimensions in inches unless noted. A = Thread. B, C, D and E are as shown on the drawing. WLL = working load limit in pounds.

Additional information

Size

3/16 in., 1/4 in., 5/16 in., 3/8 in., 1/2 in.
