Description

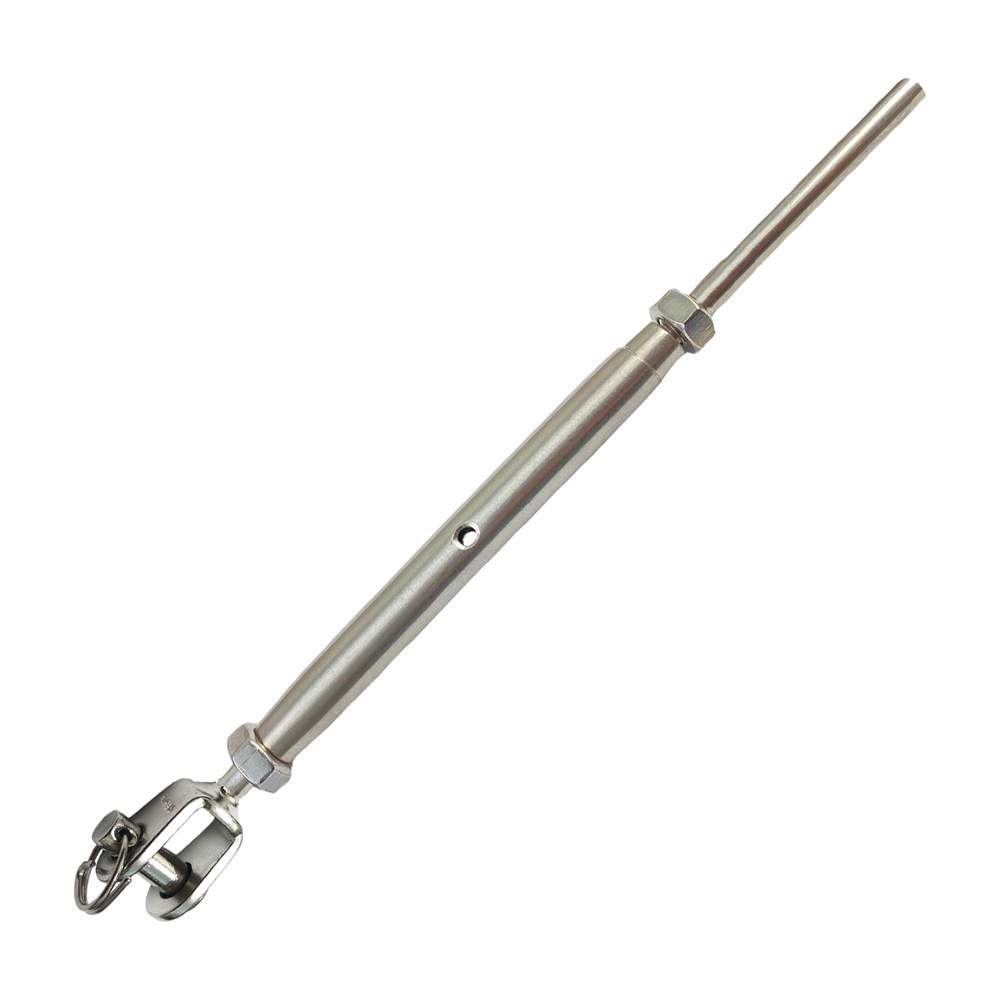

Jaw and life line stud closed body turnbuckle in T316 stainless steel, with a hand swage or machine swage stud. Choose the cable diameter and thread size, then thread layout A or B to set which end has the right hand thread. The drawing and table below give the dimensions.

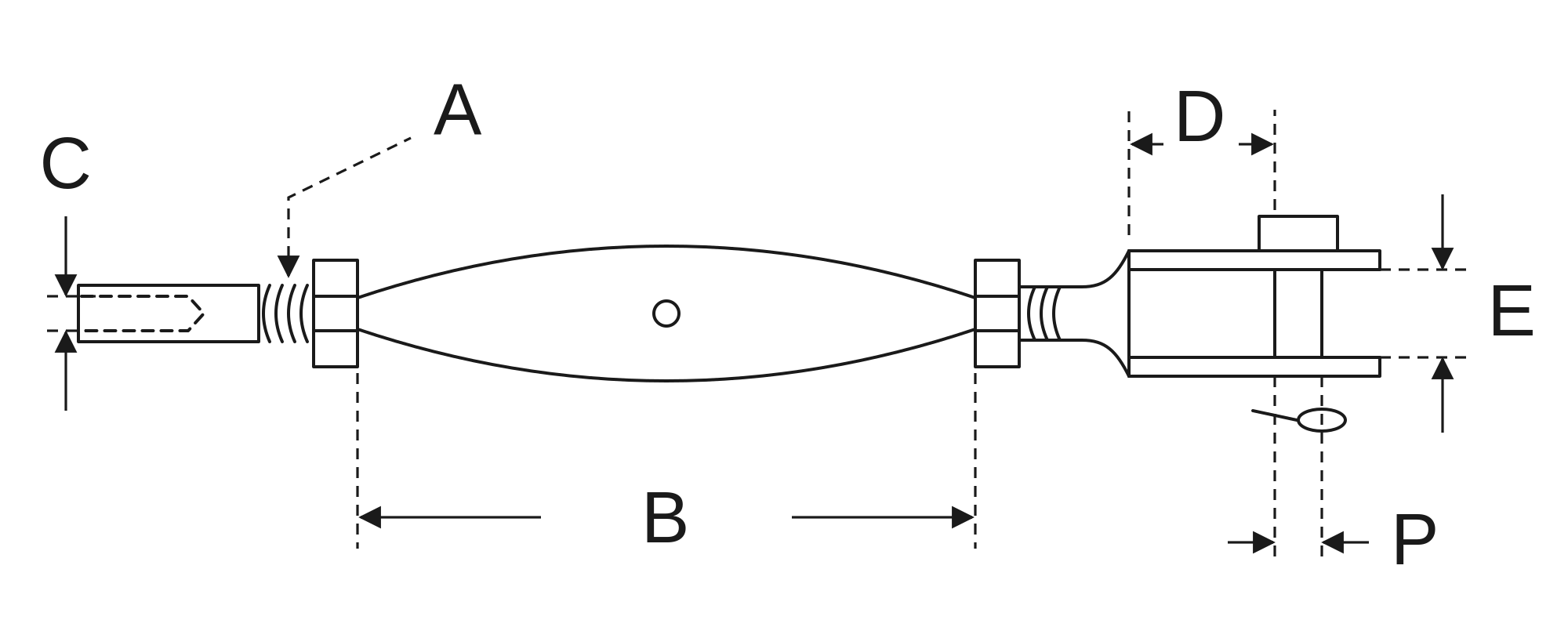

Dimensions by Size
| Part No. | Swage | C: Cable size | A: Thread | B | D | E | P |
|---|---|---|---|---|---|---|---|
| MT6PBHLJST14-18A MT6PBHLJST14-18B |
Hand Swage | 1/8″ | 1/4″-20 | 3-3/4″ | 0.42″ | 0.44″ | 0.23″ |
| MT6PBHLJST14-316A MT6PBHLJST14-316B |
Hand Swage | 3/16″ | 1/4″-20 | 3-3/4″ | 0.42″ | 0.44″ | 0.23″ |
| MT6PBHLJST516-14A MT6PBHLJST516-14B |
Hand Swage | 1/4″ | 5/16″-18 | 4-5/32″ | 0.45″ | 0.46″ | 0.31″ |
| MT6PBHLJST38-14A MT6PBHLJST38-14B |
Hand Swage | 1/4″ | 3/8″-16 | 4-5/32″ | 0.45″ | 0.46″ | 0.34″ |
| MT6PBMLJST14-18A MT6PBMLJST14-18B |
Machine Swage | 1/8″ | 1/4″-20 | 3-3/4″ | 0.42″ | 0.44″ | 0.23″ |
| MT6PBMLJST14-316A MT6PBMLJST14-316B |
Machine Swage | 3/16″ | 1/4″-20 | 3-3/4″ | 0.42″ | 0.44″ | 0.23″ |
| MT6PBMLJST516-14A MT6PBMLJST516-14B |
Machine Swage | 1/4″ | 5/16″-18 | 4-5/32″ | 0.45″ | 0.46″ | 0.31″ |
| MT6PBMLJST38-14A MT6PBMLJST38-14B |
Machine Swage | 1/4″ | 3/8″-16 | 4-5/32″ | 0.45″ | 0.46″ | 0.34″ |
All dimensions in inches unless noted. C = Cable size. A = Thread. B, D, E and P are as shown on the drawing. Each row applies to both thread layouts, A and B.
