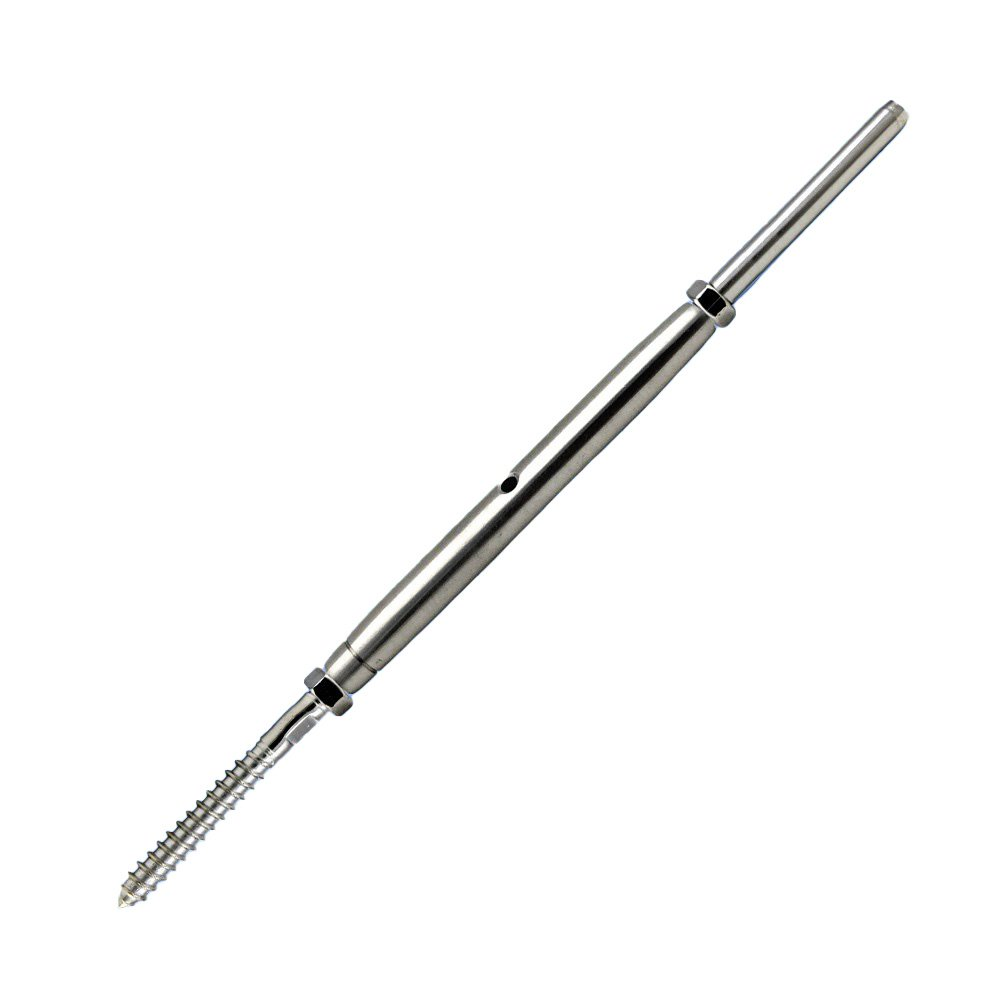

Stainless steel lag and life line stud turnbuckle

Lag and Life Line Stud Turnbuckle – Hand and Machine Swage

Price range: $14.45 through $17.53

-

Lag and Life Line Stud Turnbuckle – Hand and Machine Swage
  • Closed body turnbuckle with a lag (hanger bolt) on one end and a life line stud on the other
  • Hand swage stud for 1/8 in., 3/16 in. or 1/4 in. cable; machine swage stud for 1/8 in. or 3/16 in. cable (choose the swage type and cable diameter)
  • 1/4 in.-20 thread (standard thread, UNC); the 1/4 in. cable size uses a 5/16 in. thread
  • Lag end is right hand thread and life line stud end is left hand thread
  • T316 stainless steel construction
  • Price is per each.
  • Shipping calculated at checkout
SKU: N/A Categories: ,

Description

Lag and life line stud closed body turnbuckle in T316 stainless steel, with a hand swage or machine swage stud. The lag (hanger bolt) end has a right hand thread and the life line stud end has a left hand thread. The drawing and table below give the dimensions.

Dimensions by Size

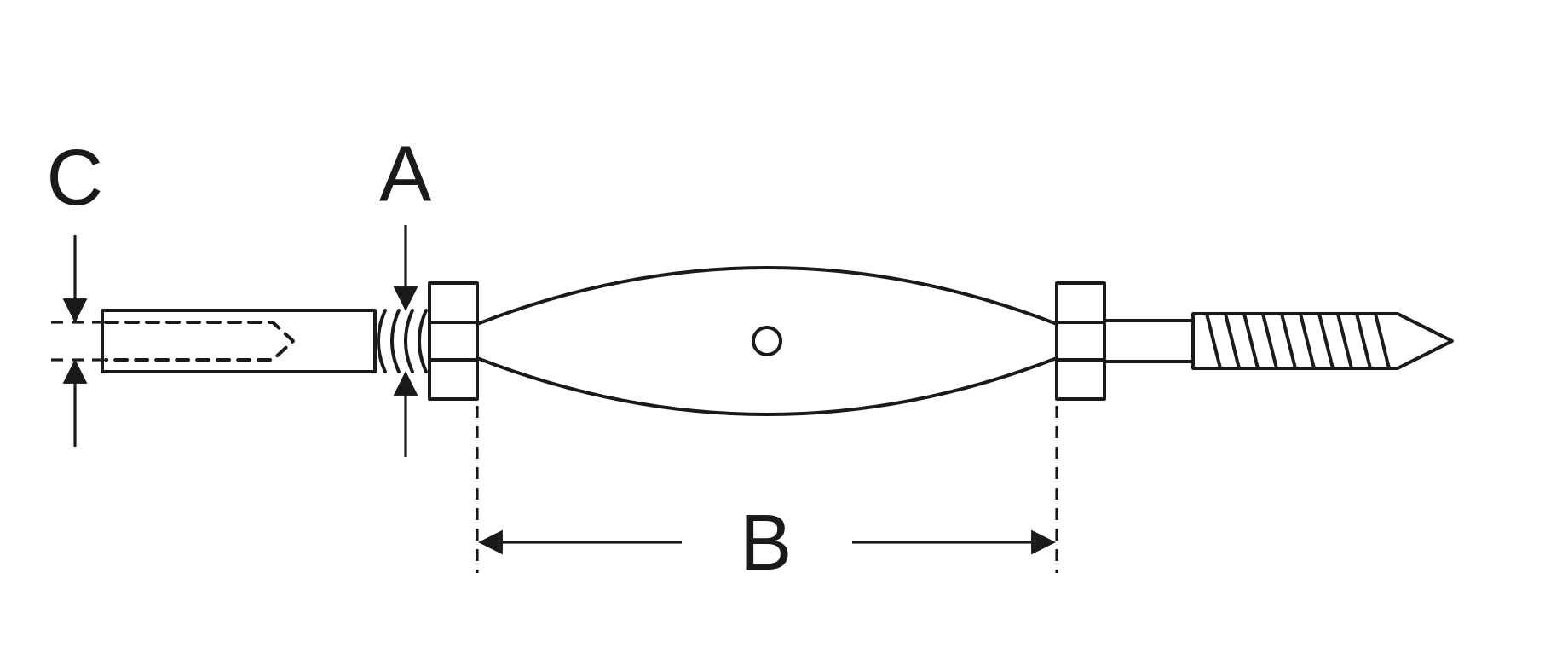

Lag and Life Line Stud Turnbuckle dimension drawing

Part No. Swage C: Cable size A: Thread B
MT6PBHLLST14-18A Hand Swage 1/8″ 1/4″-20 3-3/4″
MT6PBHLLST14-316A Hand Swage 3/16″ 1/4″-20 3-3/4″
MT6PBMLLST14-18A Machine Swage 1/8″ 1/4″-20 3-3/4″
MT6PBMLLST14-316A Machine Swage 3/16″ 1/4″-20 3-3/4″

All dimensions in inches unless noted. C = Cable size. A = Thread. B is as shown on the drawing. The hand swage 1/4 in. cable size (5/16 in. thread) is not listed in the dimensions table.

Additional information

Swage Type

Hand Swage, Machine Swage
Cable Diameter

1/8 in., 3/16 in., 1/4 in.
