Description

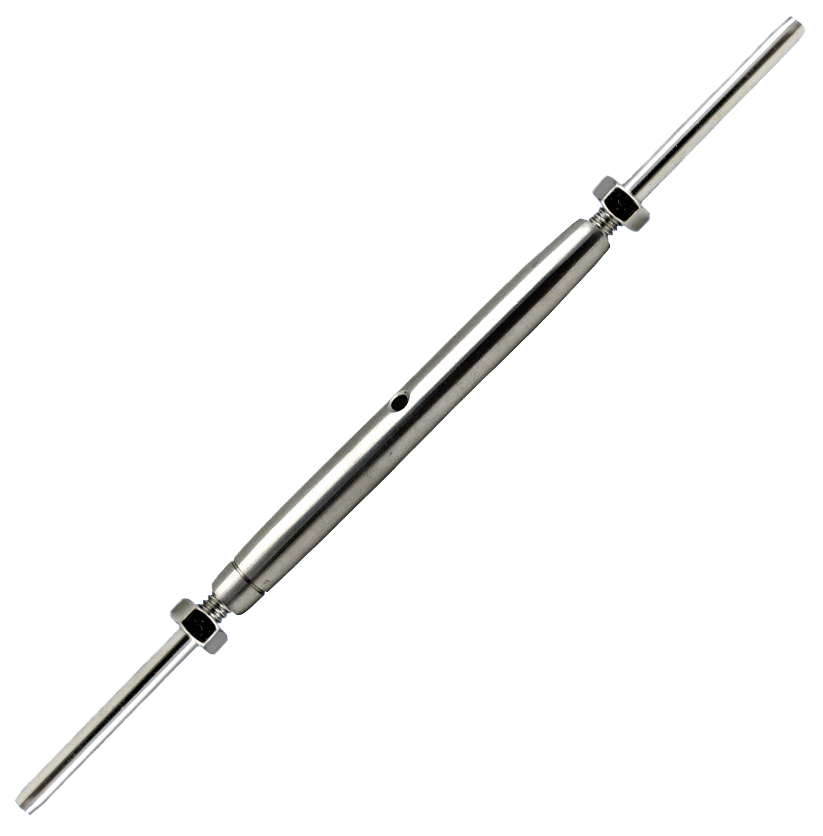

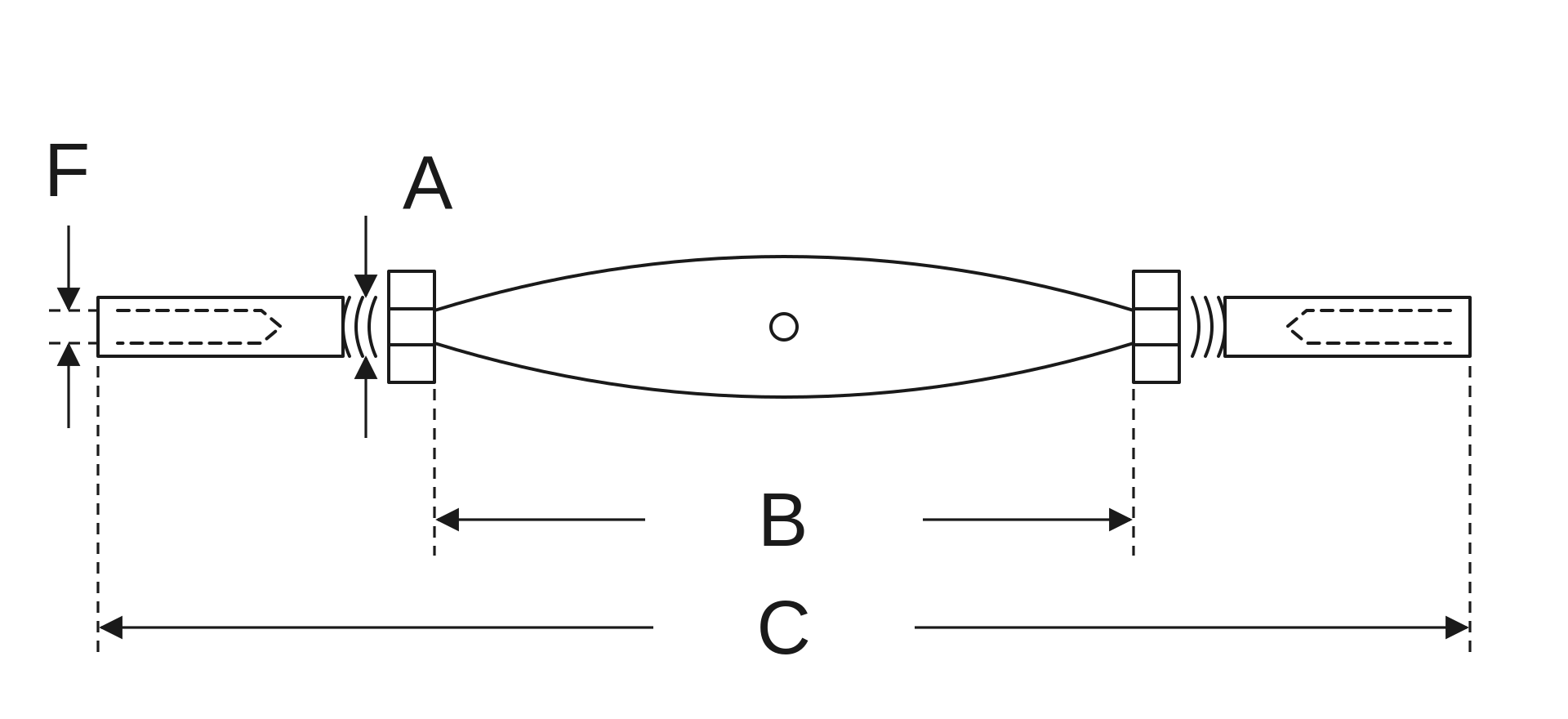

Life line stud and stud closed body turnbuckle in T316 stainless steel, with hand swage or machine swage studs. Choose the cable diameter, thread size and standard or fine thread (UNF). The drawing and table below give the dimensions.
Dimensions by Size
| Part No. | Swage | F: Cable size | A: Thread | B | C |
|---|---|---|---|---|---|
| MT6PBHLSST14-18A | Hand Swage | 1/8″ | 1/4″-20 | 3-3/4″ | 8-1/2″ |
| MT6PBHLSST14-18UNFA | Hand Swage | 1/8″ | 1/4″-28 | 3-3/4″ | 8-1/2″ |
| MT6PBHLSST14-316A | Hand Swage | 3/16″ | 1/4″-20 | 3-3/4″ | 8-1/2″ |
| MT6PBHLSST14-316UNFA | Hand Swage | 3/16″ | 1/4″-28 | 3-3/4″ | 8-1/2″ |
| MT6PBHLSST516-14A | Hand Swage | 1/4″ | 5/16″-18 | 4-5/32″ | 10-3/16″ |
| MT6PBHLSST516-14UNFA | Hand Swage | 1/4″ | 5/16″-24 | 4-5/32″ | 10-3/16″ |
| MT6PBHLSST38-14A | Hand Swage | 1/4″ | 3/8″-16 | 4-3/4″ | 10-1/2″ |
| MT6PBHLSST38-14UNFA | Hand Swage | 1/4″ | 3/8″-24 | 4-3/4″ | 10-1/2″ |
| MT6PBMLSST14-18A | Machine Swage | 1/8″ | 1/4″-20 | 3-3/4″ | 8-1/2″ |
| MT6PBMLSST14-18UNFA | Machine Swage | 1/8″ | 1/4″-28 | 3-3/4″ | 8-1/2″ |
| MT6PBMLSST14-316A | Machine Swage | 3/16″ | 1/4″-20 | 3-3/4″ | 8-1/2″ |
| MT6PBMLSST14-316UNFA | Machine Swage | 3/16″ | 1/4″-28 | 3-3/4″ | 8-1/2″ |
| MT6PBMLSST516-14A | Machine Swage | 1/4″ | 5/16″-18 | 4-5/32″ | 9-1/2″ |
| MT6PBMLSST516-14UNFA | Machine Swage | 1/4″ | 5/16″-24 | 4-5/32″ | 9-1/2″ |
| MT6PBMLSST38-14A | Machine Swage | 3/8″ | 3/8″-16 | 4-3/4″ | 10-1/2″ |
| MT6PBMLSST38-14UNFA | Machine Swage | 3/8″ | 3/8″-24 | 4-3/4″ | 10-1/2″ |
All dimensions in inches unless noted. F = Cable size. A = Thread. B and C are as shown on the drawing. Each row is one swage type, cable size and thread.
