Description

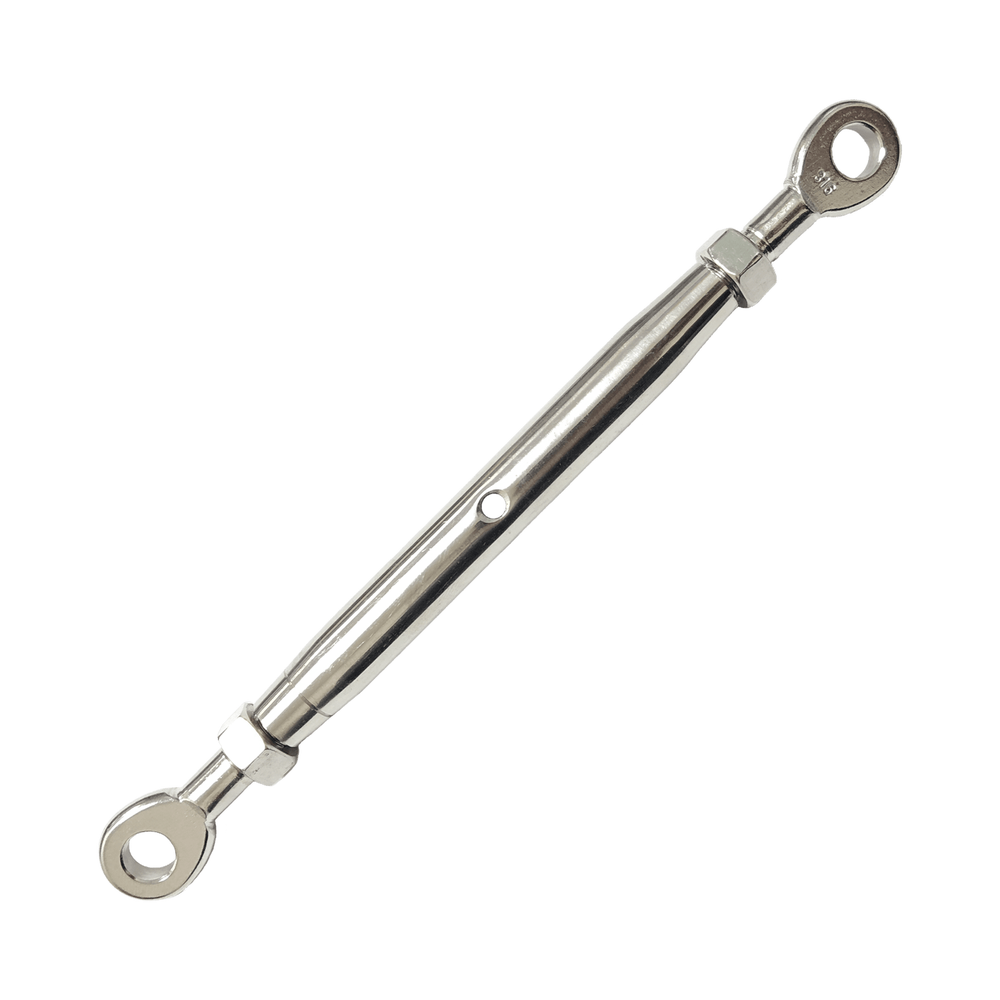

Marine eye and eye closed body turnbuckle in T316 stainless steel, with a marine eye on each end. Choose from four sizes, all in fine thread (UNF). The drawing and table below give the dimensions.
Dimensions by Size
| Part No. | A: Thread | B | C | D | E |
|---|---|---|---|---|---|
| MT6PBMEE316-472 | 3/16″-24 | 3-3/16″ | 5-1/8″ | 7/32″ | 1/2″ |
| MT6PBMEE14-531 | 1/4″-28 | 3-3/4″ | 5-15/16″ | 1/4″ | 9/16″ |
| MT6PBMEE516-630 | 5/16″-24 | 4-5/32″ | 7″ | 5/16″ | 11/16″ |
| MT6PBMEE38-748 | 3/8″-24 | 5″ | 8-1/2″ | 13/32″ | 29/32″ |

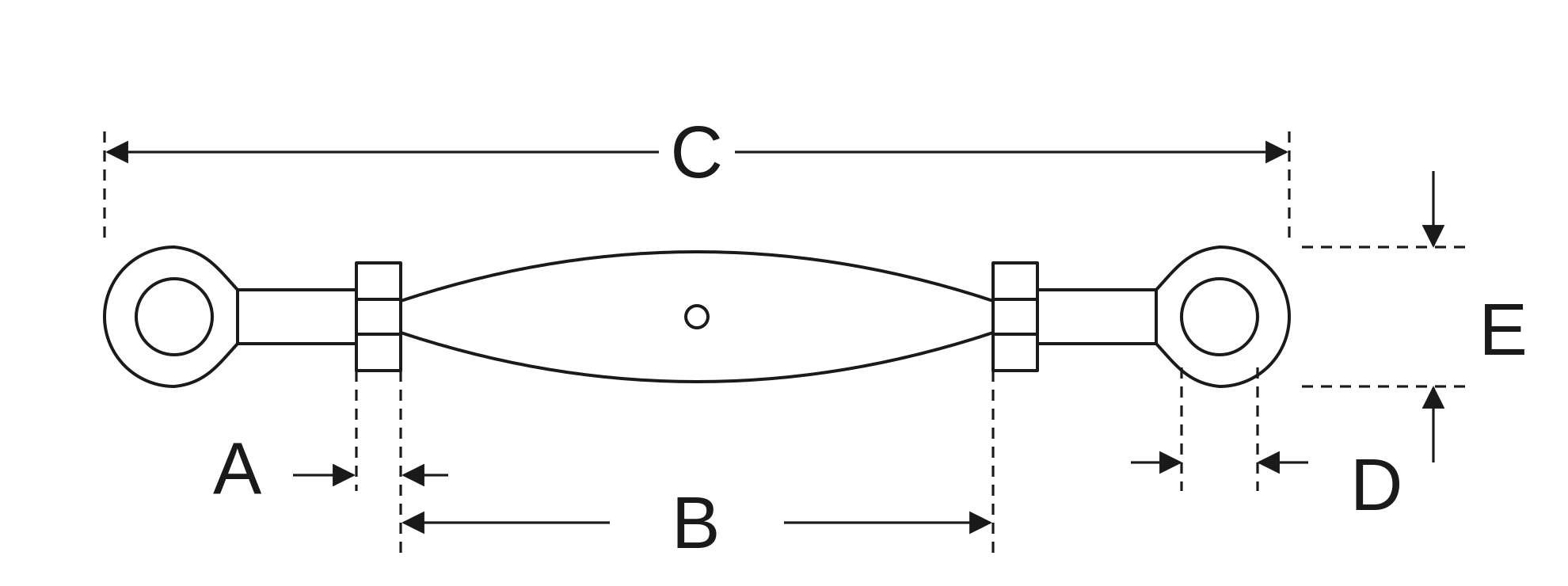

All dimensions in inches unless noted. A = Thread. B, C, D and E are as shown on the drawing.
