Description

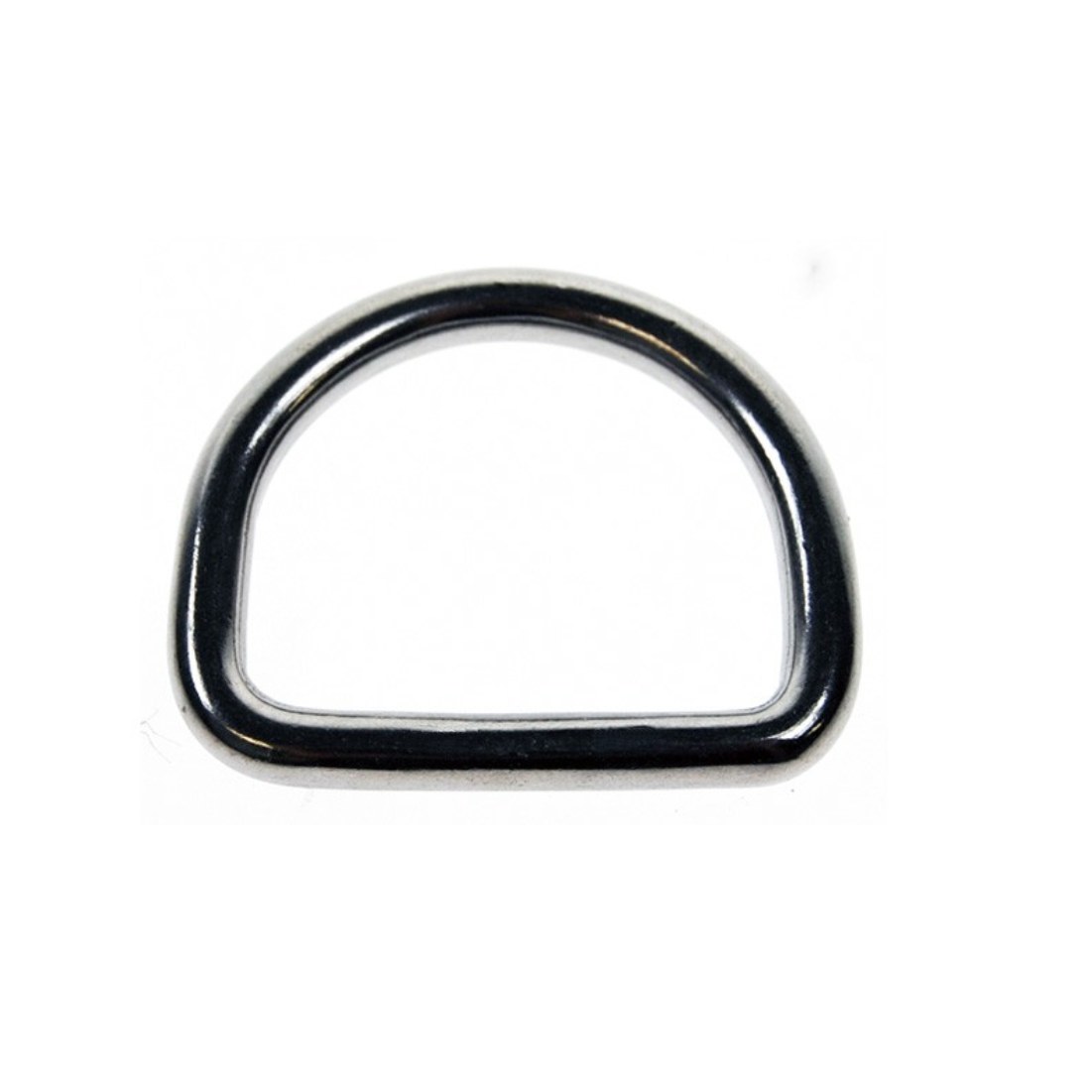

This welded D ring has a flat side for strap or webbing and a curved side for a snap or shackle. It is welded closed with no gap, and working load limits range from 100 to 800 lb by size.
Use it on bags, harnesses, tie-downs, boat covers and sewn webbing projects.
Specifications
| Material | 316 Stainless Steel (AISI 316) |
|---|---|
| Working load limit | 100 to 800 lb, by size |
| Sizes | 3mm x 15mm, 3mm x 30mm, 5mm x 30mm, 5mm x 40mm, 5mm x 50mm, 5mm x 60mm, 6mm x 40mm, 6mm x 50mm, 8mm x 36mm, 8mm x 50mm, 8mm x 68mm |
| Weight per piece | 0.01 to 0.18 lb, by size |
Dimensions by Size
| Part No. | Size | A: Wire diameter | W: Width (mm) | H: Height (mm) | Weight (lb) | WLL (lb) |
|---|---|---|---|---|---|---|
| MT6DR3-15MM | 3mm x 15mm | 1/8" | 15 | 12 | 0.01 | 100 |
| MT6DR3-30MM | 3mm x 30mm | 1/8" | 30 | 25 | 0.02 | 100 |
| MT6DR5-30MM | 5mm x 30mm | 3/16" | 30 | 27 | 0.03 | 300 |
| MT6DR5-40MM | 5mm x 40mm | 3/16’ | 40 | 32 | 0.04 | 300 |
| MT6DR5-50MM | 5mm x 50mm | 3/16" | 50 | 45 | 0.05 | 300 |
| MT6DR5-60MM | 5mm x 60mm | 3/16" | 60 | 60 | 0.07 | 300 |
| MT6DR6-40MM | 6mm x 40mm | 1/4" | 40 | 35 | 0.07 | 500 |
| MT6DR6-50MM | 6mm x 50mm | 1/4" | 50 | 48 | 0.08 | 500 |
| MT6DR8-36MM | 8mm x 36mm | 5/16" | 36 | 36 | 0.11 | 800 |
| MT6DR8-50MM | 8mm x 50mm | 5/16" | 50 | 40 | 0.14 | 800 |

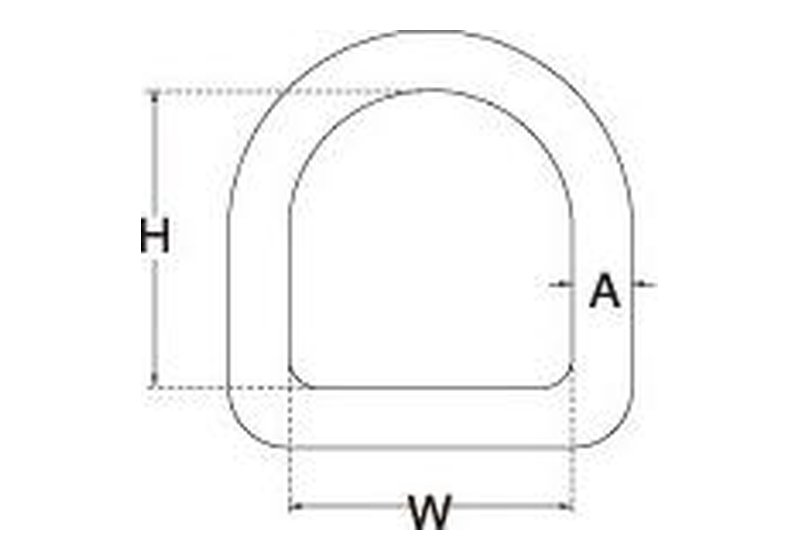

All dimensions in inches unless noted. A = Wire diameter, W = Width (mm), H = Height (mm).
Ships direct. Shipping is calculated at checkout.
