Description

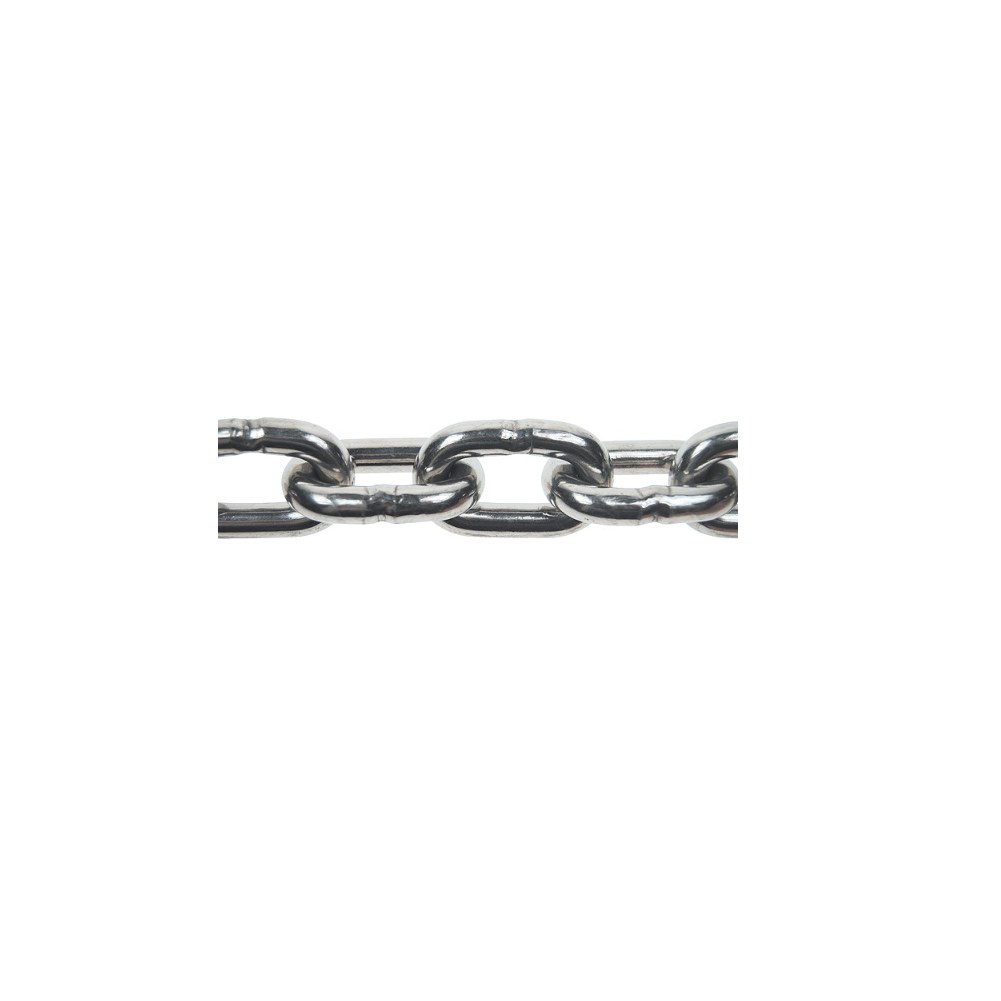

316 stainless chain holds up to salt water and weather without rusting. It is welded short-link chain, offered in several wire diameters.
Use it for anchor leaders, hanging planters and lights, gates, security and decorative rigging.
Specifications
| Material | 316 Stainless Steel (AISI 316) |
|---|---|
| Working load limit | 360 to 9,800 lb, by size |
| Reel length | 100 ft, 200 ft, 300 ft, 400 ft, 500 ft, 1,000 ft, 1,500 ft |
| Sizes | 1/8" x 1,500 ft Reel, 5/32" x 1,500 ft Reel, 3/16" x 1,000 ft Reel, 1/4" x 1,000 ft Reel, 5/16" x 500 ft Reel, 3/8" x 400 ft Reel, 1/2" x 500 ft Reel, 5/8" x 100 ft Reel, 1/2" x 200 ft Reel, 3/8" x 300 ft Reel |
| Weight per piece | 0.25 to 5.5 lb, by size |
Dimensions by Size
| Part No. | Size | A: Wire diameter | W: Inside width | L: Inside length | Weight (lb) | WLL (lb) |
|---|---|---|---|---|---|---|
| MT6CHN30-18 | 1/8" x 1,500 ft Reel | 1/8" | 0.27" | 0.95" | 0.25 | 500 |
| MT6CHN30-316 | 3/16" x 1,000 ft Reel | 3/16" | 0.40" | 0.95" | 0.38 | 930 |
| MT6CHN30-14 | 1/4" x 1,000 ft Reel | 1/4" | 0.47" | 1.25" | 0.70 | 1,570 |
| MT6CHN30-516 | 5/16" x 500 ft Reel | 5/16" | 0.45" | 1.30" | 0.95 | 2,400 |
| MT6CHN30-38 | 3/8" x 400 ft Reel | 3/8" | 0.57" | 1.38" | 1.40 | 3,550 |
| MT6CHN30-12 | 1/2" x 500 ft Reel | 1/2" | 0.80" | 1.75" | 2.60 | 6,500 |
| MT6CHN30-58 | 5/8" x 100 ft Reel | 5/8" | 0.85" | 2.16" | 3.30 | 9,800 |
| MT4CHN30-12 | 1/2" x 200 ft Reel | 1/2" | 0.80" | 1.75" | 2.60 | 6,500 |
| MT4CHN30-38 | 3/8" x 300 ft Reel | 3/8" | 0.57" | 1.38" | 1.40 | 3,550 |

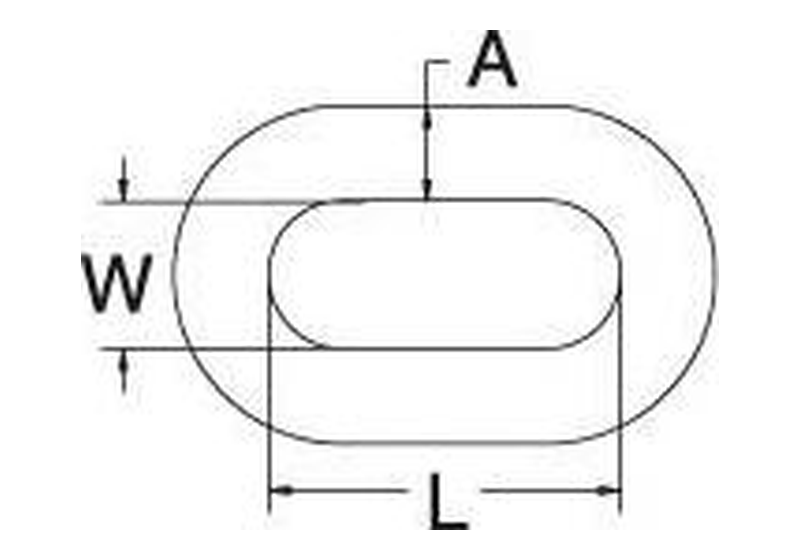

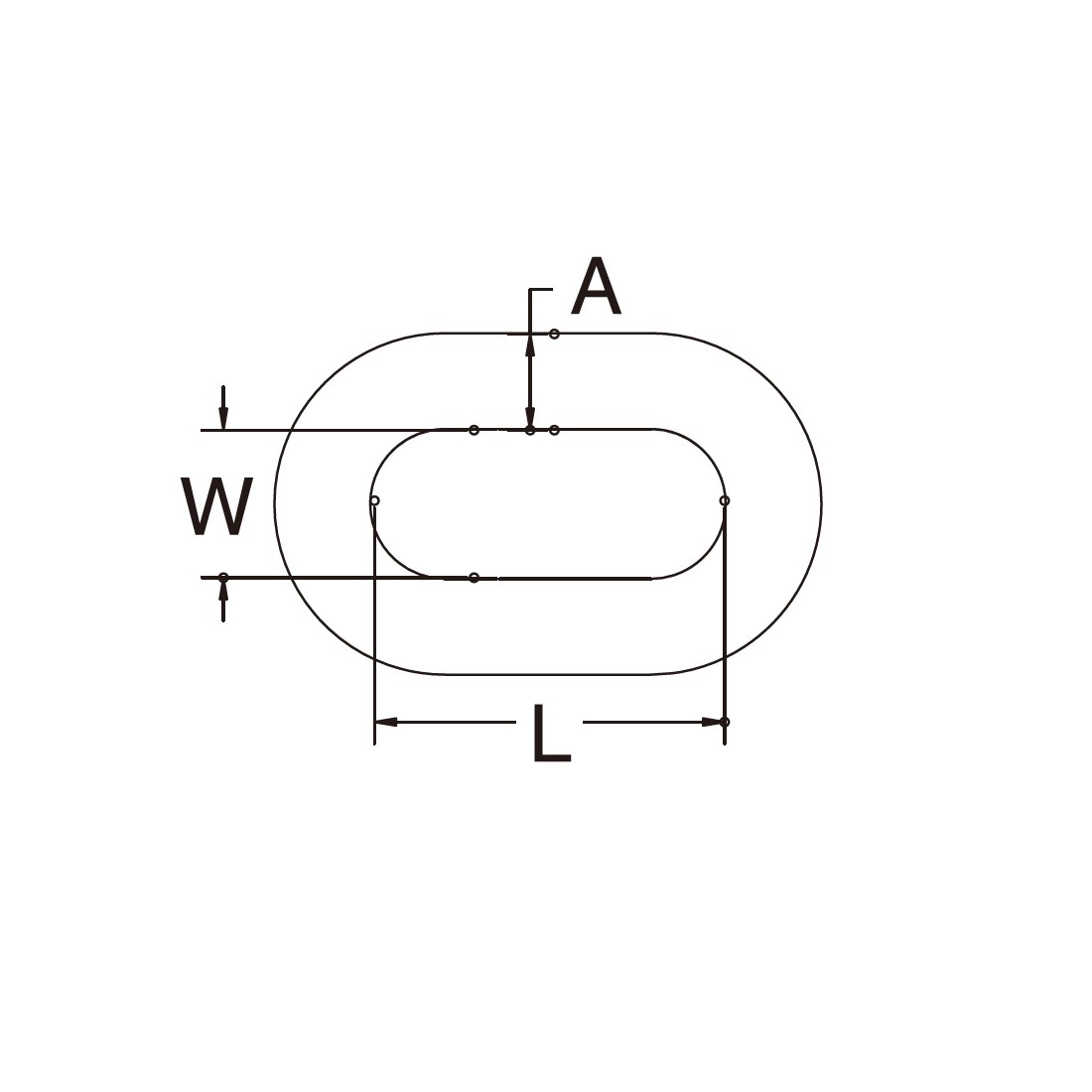

All dimensions in inches unless noted. A = Wire diameter, W = Inside width, L = Inside length.
Ships direct. Shipping is calculated at checkout.
