Description

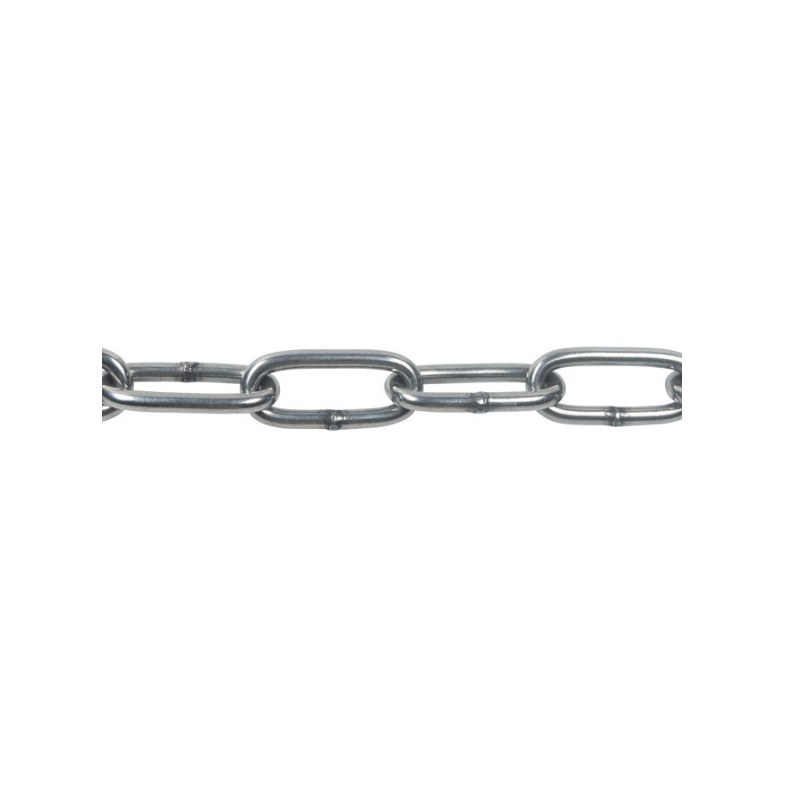

Long link chain has longer, narrower links than short-link chain, so shackles, hooks and quick links pass through easily, and it uses less metal per foot.
Use it for hanging fixtures, gates, decorative chain and adjustable hangers.
Specifications
| Material | 316 Stainless Steel (AISI 316) |
|---|---|
| Working load limit | 360 to 1,200 lb, by size |
| Reel length | 1,000 ft, 1,500 ft |
| Sizes | 1/8" x 1,500 ft Reel, 3/16" x 1,000 ft Reel, 1/4" x 1,000 ft Reel |
| Weight per piece | 0.12 to 0.42 lb, by size |

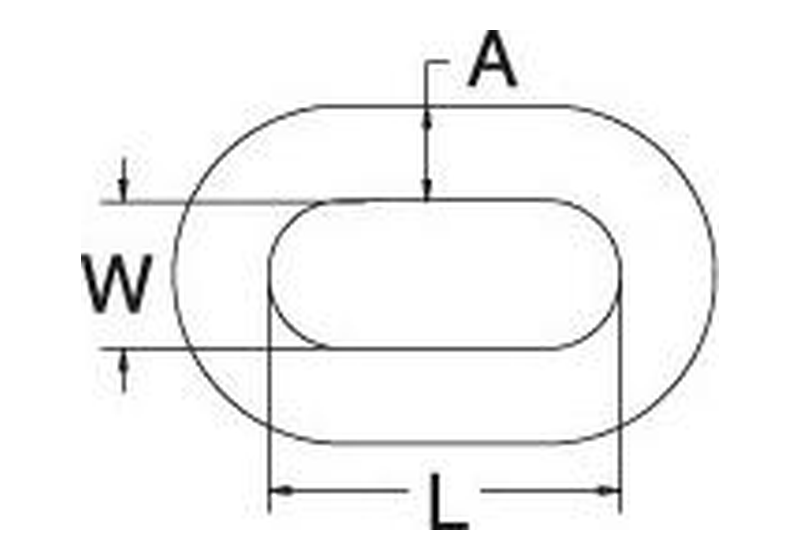

Dimensions by Size
| Part No. | Size | A: Wire diameter | W: Inside width | L: Inside length | Weight (lb) | WLL (lb) |
|---|---|---|---|---|---|---|
| MT6LLCHN-18 | 1/8" x 1,500 ft Reel | 0.125" | 0.23" | 1.02" | 0.12 | 360 |
| MT6LLCHN-316 | 3/16" x 1,000 ft Reel | 0.1875" | 0.40" | 1.42" | 0.28 | 880 |
| MT6LLCHN-14 | 1/4" x 1,000 ft Reel | 0.225" | 0.48" | 1.65" | 0.42 | 1,200 |
All dimensions in inches unless noted. A = Wire diameter, W = Inside width, L = Inside length.
Ships direct. Shipping is calculated at checkout.
