Description

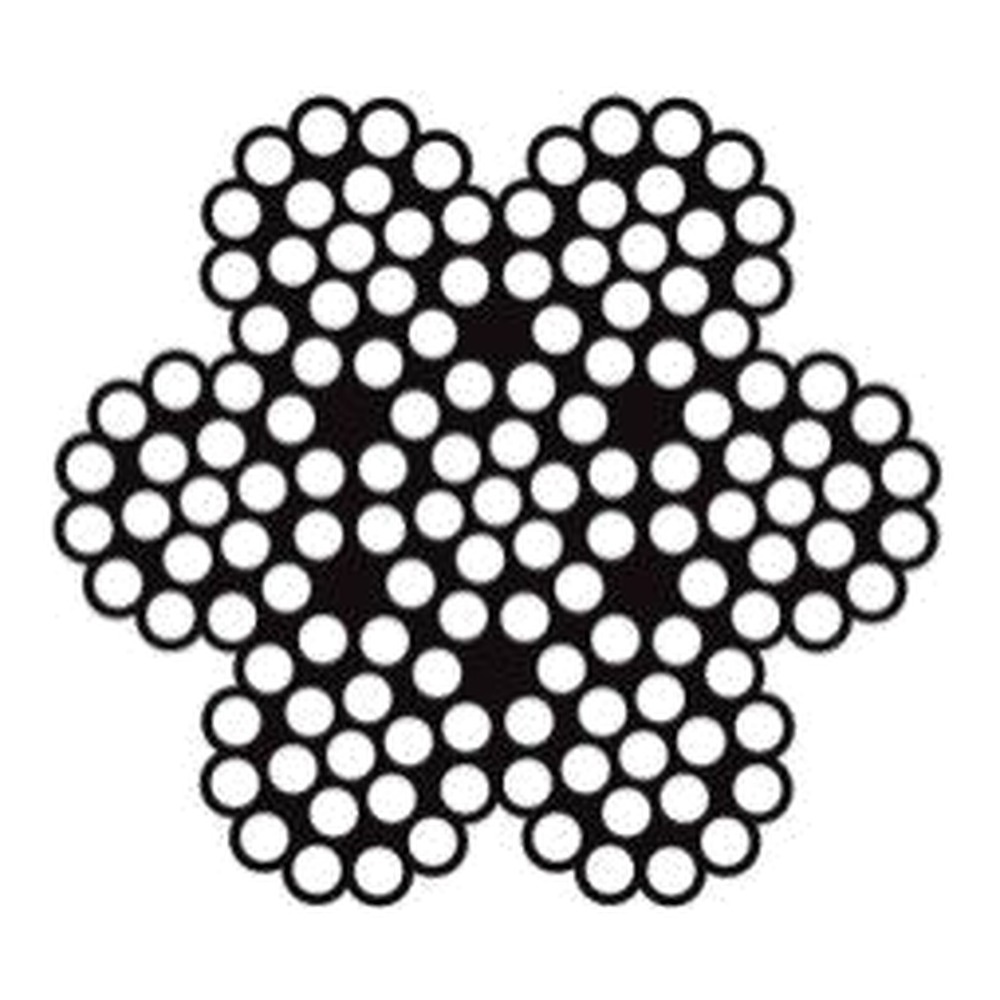

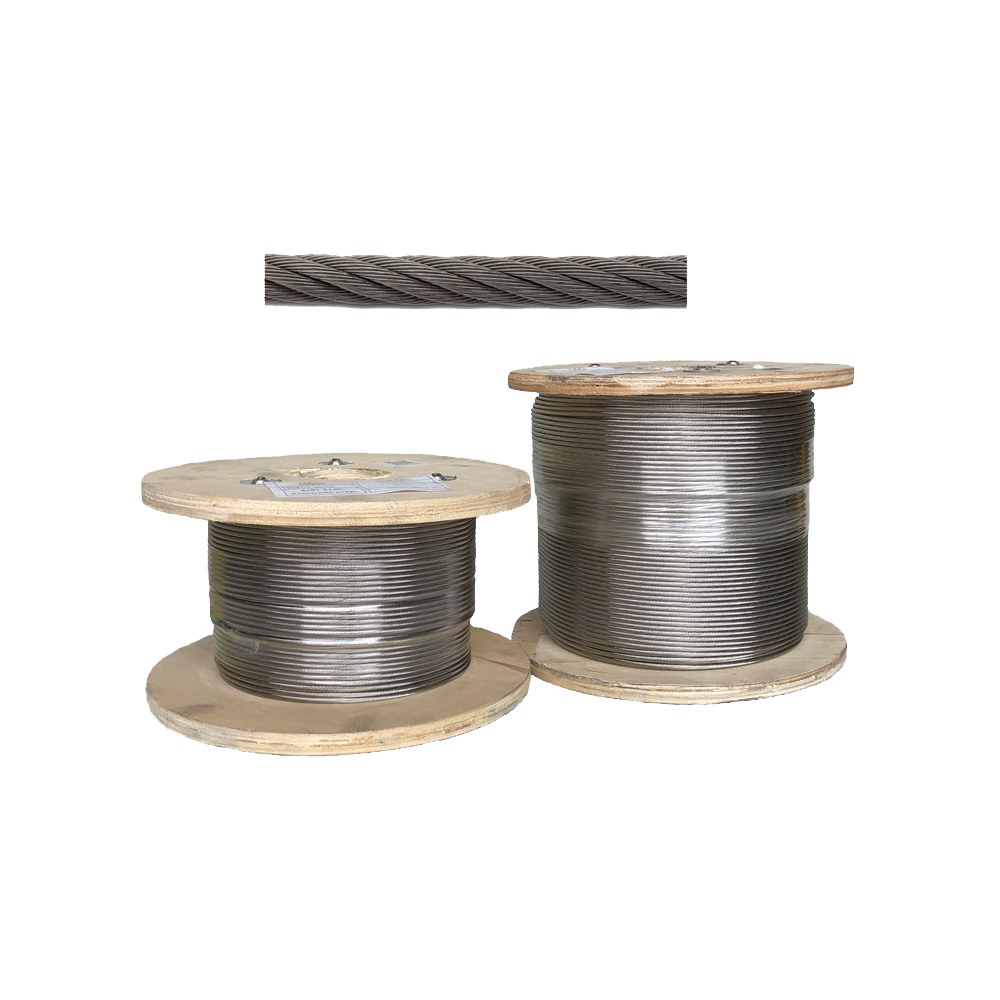

7×19 stainless wire rope is the flexible choice, with 133 wires that bend easily around pulleys and sheaves. This rope is 316 low-carbon stainless, sold by the reel in 1/8″, 3/16″ and 1/4″ diameters.
It is used for running rigging, winches, pulleys, garage and gate cables, lanyards and cable railings that need a softer bend.
Features
- Low carbon 316 alloy
Specifications
| Material | 316 Stainless Steel (AISI 316) |
|---|---|
| Working load limit | Varies by diameter, rated at 350 lb (smallest) to 1,280 lb (largest); see the table below |
| Construction | 7X19 |
| Reel length | 500 ft, 1,000 ft |
| Sizes | 1/8″ x 500 ft Reel, 1/8″ x 1,000 ft Reel, 3/16″ x 500 ft Reel, 3/16″ x 1,000 ft Reel, 1/4″ x 500 ft Reel, 1/4″ x 1,000 ft Reel |
| Weight per piece | 16 to 115 lb, by size |
Working Load Limit by Diameter
| Size | Working load limit (lb) |
|---|---|
| 1/8″ | 350 |
| 3/16″ | 740 |
| 1/4″ | 1,280 |
Working load vs. breaking strength: The working load limit is the most weight the cable is rated to carry in normal, everyday use. Breaking strength is the point where the cable would fail, and it is always much higher than the working load. Always size cable by its working load, never by its breaking strength.
Ships direct. Shipping is calculated at checkout.
5,000 ft reels available in 1/8 in., 3/16 in. and 1/4 in. Other diameters also available. Call 573-559-0090 for a quote.
