Description

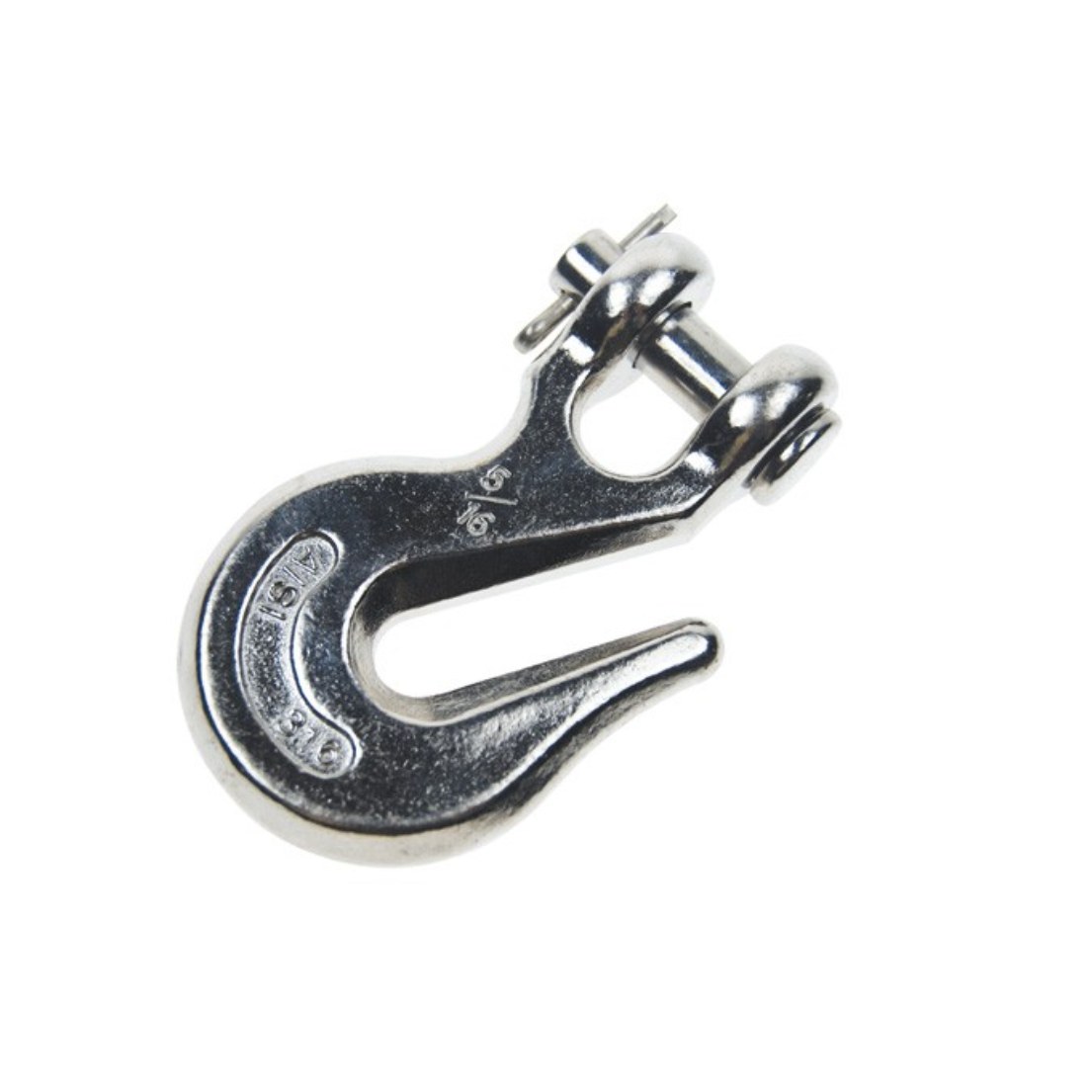

A grab hook has a narrow throat that fits over a chain link and holds it, which lets you shorten or anchor chain at any point. This clevis grab hook attaches with a pin-and-clevis end, so no extra link is needed.
It is used on tie-down chains, trailer safety chains and boat anchor rodes.
Specifications
| Material | 316 Stainless Steel (AISI 316) |
|---|---|
| Working load limit | 990 to 2,200 lb, by size |
| Sizes | 1/4", 5/16", 3/8" |
| Weight per piece | 0.36 to 0.9 lb, by size |
Dimensions by Size
| Part No. | Size | Chain size | B: Jaw width | E: Throat opening | P: Pin diameter | R: Reach | Weight (lb) | WLL (lb) |
|---|---|---|---|---|---|---|---|---|
| MT6CGHK-14 | 1/4" | 1/4" | 7/16" | 11/32" | 11/32" | 1-3/4" | 0.36 | 990 |
| MT6CGHK-516 | 5/16" | 5/16" | 1/2" | 7/16" | 7/16" | 2-1/8" | 0.65 | 1,540 |
| MT6CGHK-38 | 3/8" | 3/8" | 9/16" | 15/32" | 15/32" | 2-7/16" | 0.90 | 2,200 |

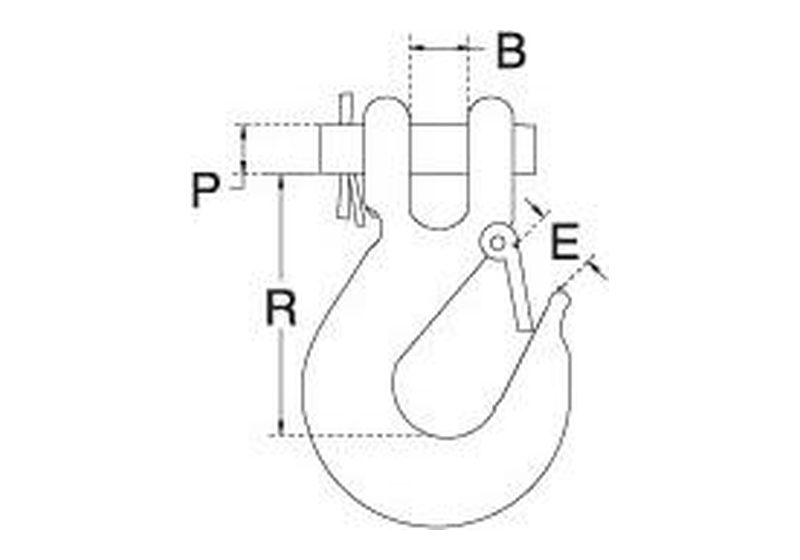

All dimensions in inches unless noted. B = Jaw width, E = Throat opening, P = Pin diameter, R = Reach.
Ships direct. Shipping is calculated at checkout.
