Description

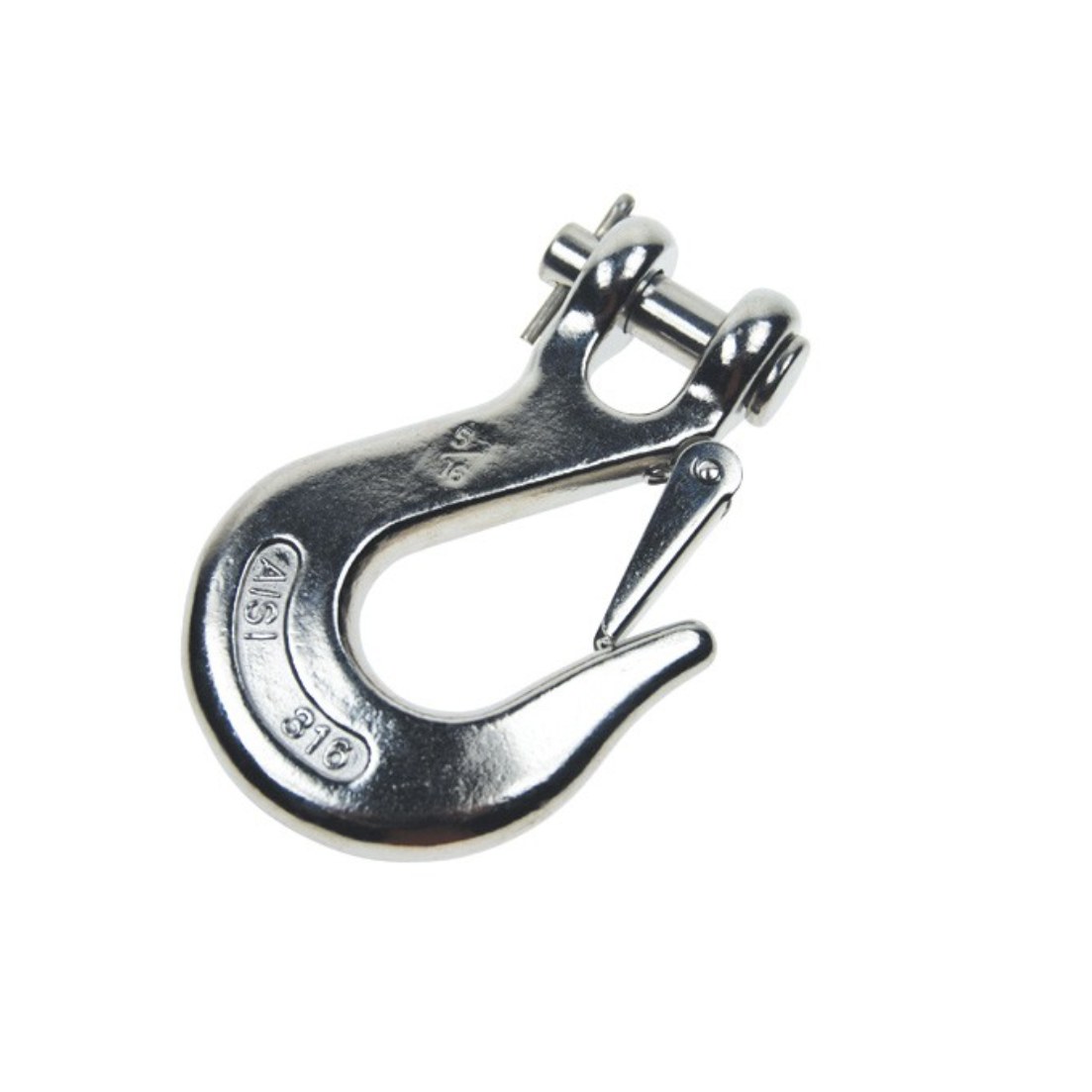

This clevis slip hook with latch has a rounded throat and a spring latch that keeps slings and rings from slipping out. It pins directly to chain or a fitting, and working load limits range from 880 to 2,640 lb by size.
Use it at the end of chain slings, hoist lines and tie-downs.
Specifications
| Material | 316 Stainless Steel (AISI 316) |
|---|---|
| Working load limit | 880 to 2,640 lb, by size |
| Sizes | 1/4", 5/16", 3/8", 15/32" |
| Weight per piece | 0.42 to 2.36 lb, by size |
Dimensions by Size
| Part No. | Size | Chain size | B: Jaw width | E: Throat opening | P: Pin diameter | R: Reach | Weight (lb) | WLL (lb) |
|---|---|---|---|---|---|---|---|---|
| MT6CSHK-14L | 1/4" | 1/4" | 7/16" | 9/16" | 3/8" | 2-9/16" | 0.42 | 880 |
| MT6CSHK-516L | 5/16" | 5/16" | 1/2" | 19/32" | 7/16" | 2-3/4" | 0.76 | 1,320 |
| MT6CSHK-38L | 3/8" | 3/8" | 5/8" | 7/8" | 1/2" | 3-1/4" | 1.18 | 1,760 |
| MT6CSHK-12L | 15/32" | 1/2" | 1/2" | 1-3/32" | 5/8" | 4" | 2.36 | 2,640 |
All dimensions in inches unless noted. B = Jaw width, E = Throat opening, P = Pin diameter, R = Reach.
Ships direct. Shipping is calculated at checkout.
