Description
A spring-loaded sliding bolt closes the gate on this fixed eye bolt snap, and webbing or rope goes through the eye. WLL ranges from 110 to 550 lb, depending on size.
Bolt snaps are common on horse tack, dog leashes, bag straps and boat covers.
Specifications
| Material | 316 Stainless Steel (AISI 316) |
|---|---|
| Working load limit | 110 to 550 lb, by size |
| Sizes | 3/8", 5/8", 3/4", 7/8" |
| Weight per piece | 0.06 to 0.19 lb, by size |
Dimensions by Size
| Part No. | Size | A: Eye inside diameter | B: Overall length | C: Overall height | D: Eye wall thickness | E: Gate opening | Weight (lb) | WLL (lb) |
|---|---|---|---|---|---|---|---|---|
| MT6FENP-10MM | 3/8" | 3/8" | 2-1/8" | 7/8" | 5/32" | 7/32" | 0.06 | 110 |
| MT6FENP-16MM | 5/8" | 5/8" | 2-7/8" | 1-1/4" | 3/16" | 7/16" | 0.10 | 220 |
| MT6FENP-19MM | 3/4" | 3/4" | 3-3/16" | 1-5/16" | 7/32" | 15/32" | 0.12 | 330 |
| MT6FENP-22MM | 7/8" | 7/8" | 3-13/16" | 1-1/2" | 1/4" | 1/2" | 0.19 | 550 |

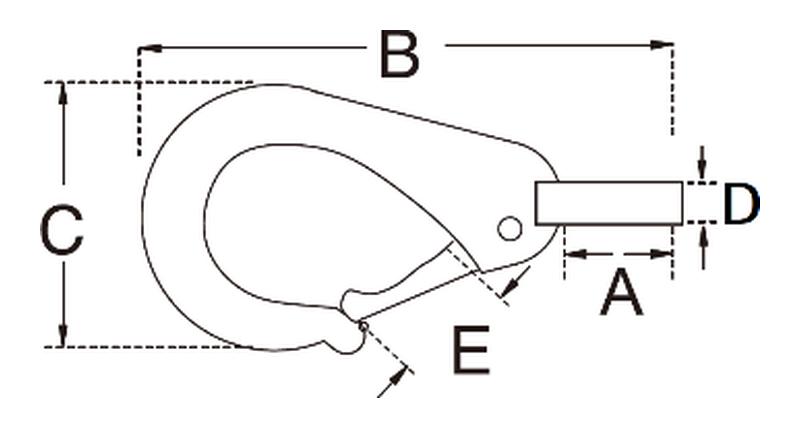

All dimensions in inches unless noted. A = Eye inside diameter, B = Overall length, C = Overall height, D = Eye wall thickness, E = Gate opening.
