Description

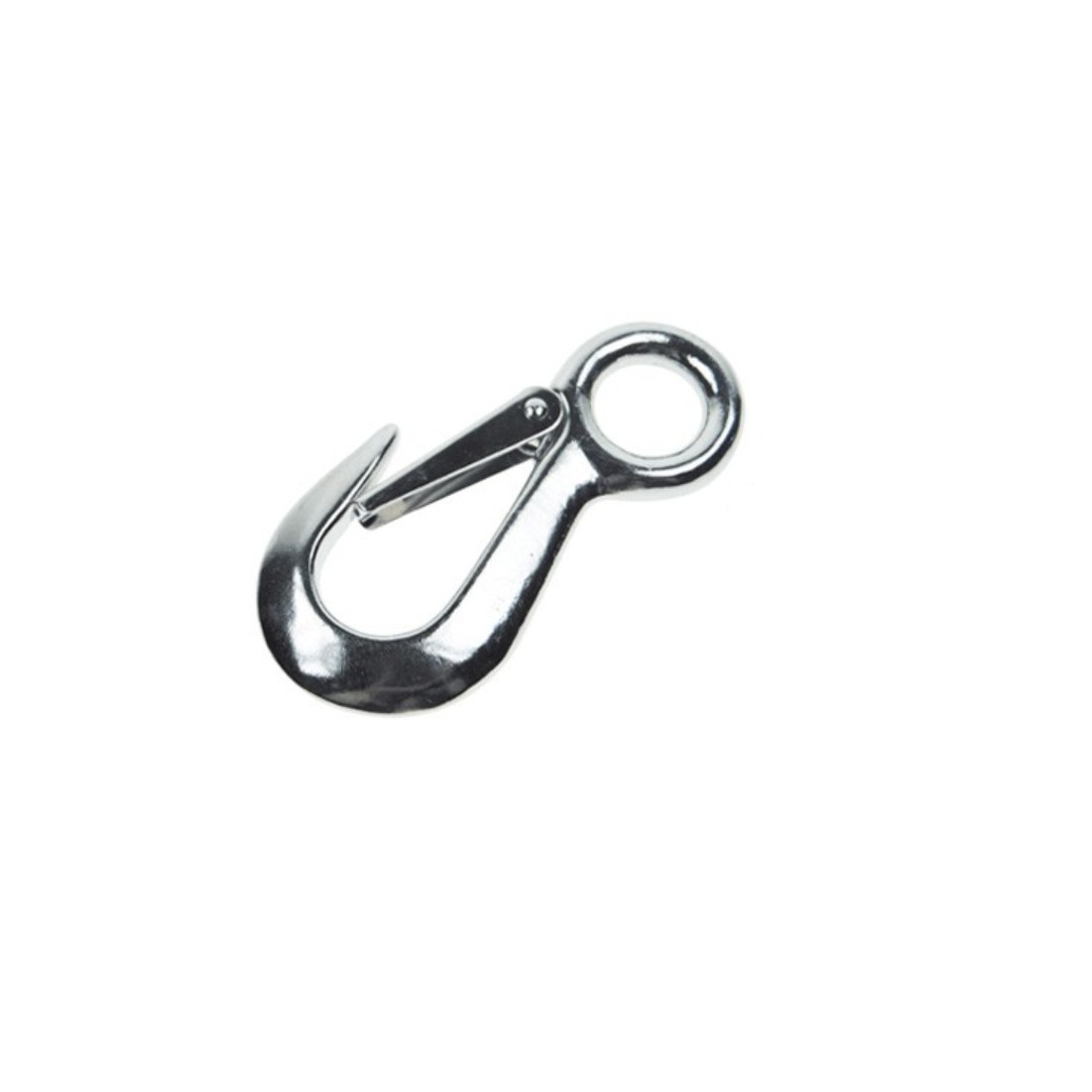

This large eye slip hook has an oversized eye that fits thick rope, webbing or a big shackle. A spring latch closes the throat. The working load limit ranges from 220 lb on the 4" hook to 2,200 lb on the largest.
It is used on rope hoists, block and tackle, and lines where a standard eye is too small.
Specifications
| Material | 316 Stainless Steel (AISI 316) |
|---|---|
| Working load limit | 220 to 2,200 lb, by size |
| Sizes | 4", 4-3/4", 6-1/2" |
| Weight per piece | 0.25 to 0.75 lb, by size |

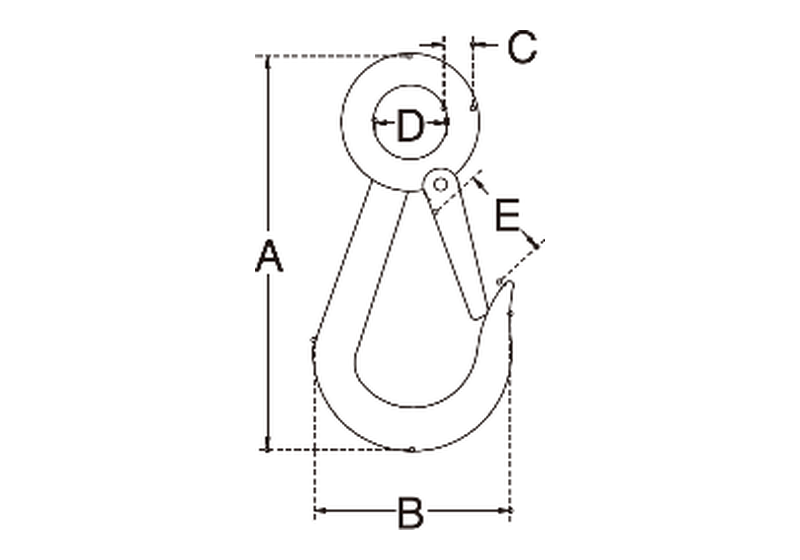

Dimensions by Size
| Part No. | Size | A: Overall length | B: Hook width | C: Eye wall thickness | D: Eye inside diameter | E: Throat opening | Weight (lb) | WLL (lb) |
|---|---|---|---|---|---|---|---|---|
| MT6FEHK-34L | 4" | 4-1/8" | 1-7/8" | 5/16" | 3/4" | 11/16" | 0.25 | 220 |
| MT6FEHK-118L | 4-3/4" | 4-5/8" | 2-1/16" | 11/32" | 1-3/32" | 3/4" | 0.38 | 300 |
All dimensions in inches unless noted. A = Overall length, B = Hook width, C = Eye wall thickness, D = Eye inside diameter, E = Throat opening.
Ships direct. Shipping is calculated at checkout.
