Description

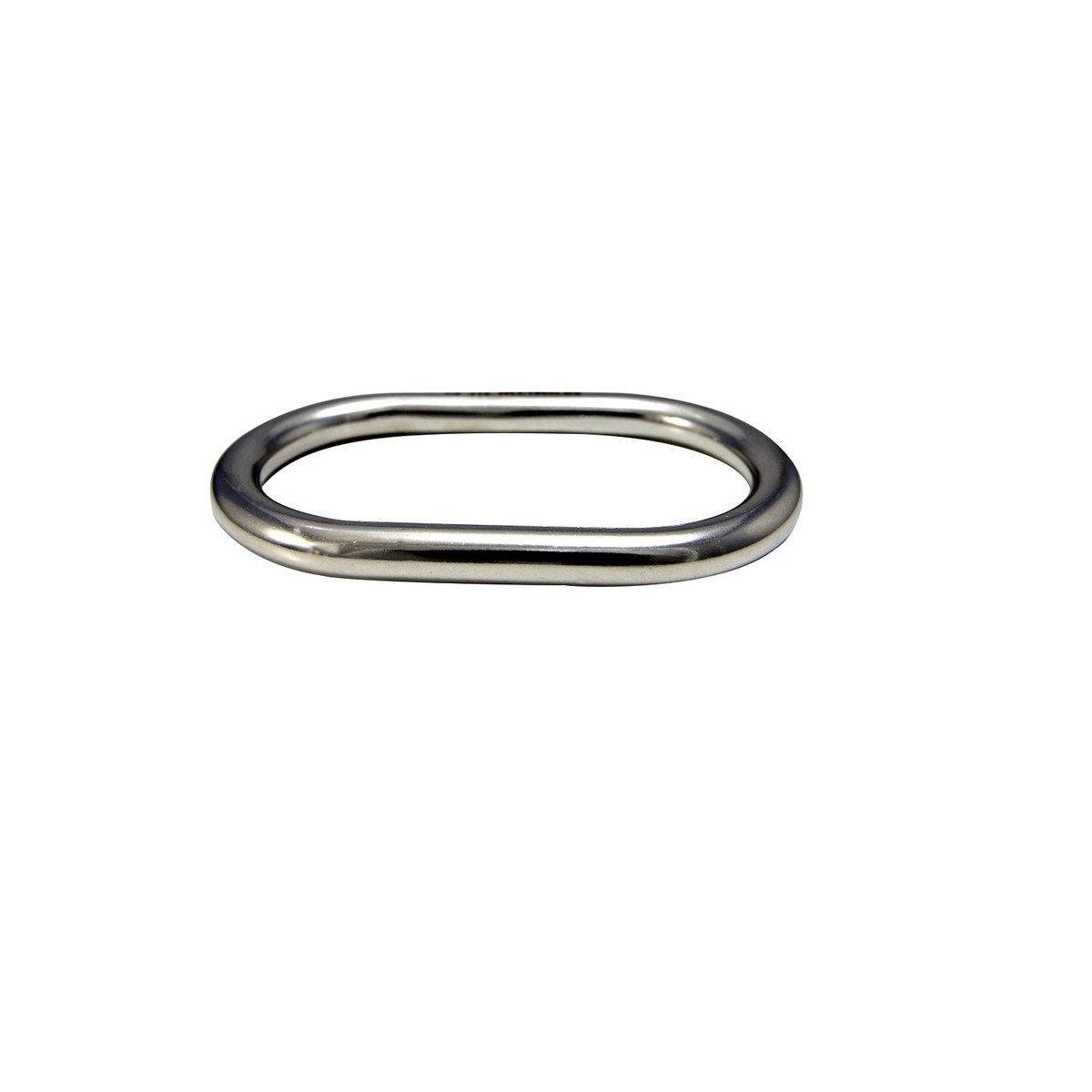

An oval master link is the large top ring of a multi-leg sling. It goes on the crane hook while the legs hang below.
Use it to build chain and wire rope slings, join several legs at one point or make a heavy lifting ring.
Specifications
| Material | 316 Stainless Steel (AISI 316) |
|---|---|
| Working load limit | 1,500 to 18,000 lb, by size |
| Sizes | 3/8" x 2", 1/2" x 2-1/2", 5/8" x 3" (T6ML-58), 5/8" x 3" (T6ML-58-S), 3/4" x 3-1/2" (T6ML-34), 3/4" x 3-1/2" (T6ML-34-S), 7/8" x 3-5/8", 1" x 3-1/2" (T6ML-1), 1" x 3-1/2" (T6ML-1-S), 1-1/4" x 4-1/4" (T6ML-114), 1-1/4" x 4-1/4" (T6ML-114-S), 14" x 10-3/8" |
| Weight per piece | 0.35 to 15.5 lb, by size |
Dimensions by Size
| Part No. | Size | A: Wire diameter | B: Inside width | C: Inside length | Weight (lb) | WLL (lb) |
|---|---|---|---|---|---|---|
| MT6ML-38 | 3/8" x 2" | 3/8" | 2" | 3-1/2" | 0..35 | 1,500 |
| MT6ML-12 | 1/2" x 2-1/2" | 1/2" | 2-1/2" | 4-3/4" | 0.80 | 2,000 |
| MT6ML-58 | 5/8" x 3" (T6ML-58) | 5/8" | 3" | 5-3/4" | 1.45 | 2,850 |
| MT6ML-58-S | 5/8" x 3" (T6ML-58-S) | 5/8" | 3" | 5-3/4" | 1.45 | 2,850 |
| MT6ML-34 | 3/4" x 3-1/2" (T6ML-34) | 3/4" | 3-1/2" | 6-1/2" | 2.35 | 3,800 |
| MT6ML-34-S | 3/4" x 3-1/2" (T6ML-34-S) | 3/4" | 3-1/2" | 6-1/2" | 2.35 | 3,800 |
| MT6ML-78 | 7/8" x 3-5/8" | 7/8" | 3-5/8" | 6-3/4" | 3.45 | 5,500 |
| MT6ML-1 | 1" x 3-1/2" (T6ML-1) | 1" | 3-1/2 | 7" | 4.40 | 7,800 |
| MT6ML-1-S | 1" x 3-1/2" (T6ML-1-S) | 1" | 3-1/2 | 7" | 4.40 | 7,800 |
| MT6ML-114 | 1-1/4" x 4-1/4" (T6ML-114) | 1-1/4" | 4-1/4" | 9" | 9.25 | 11,500 |
| MT6ML-114-S | 1-1/4" x 4-1/4" (T6ML-114-S) | 1-1/4" | 4-1/4" | 9" | 9.25 | 11,500 |
| MT6ML-112 | 14" x 10-3/8" | 1-1/2" | 5-1/4" | 10-3/8" | 15.50 | 54,300 |

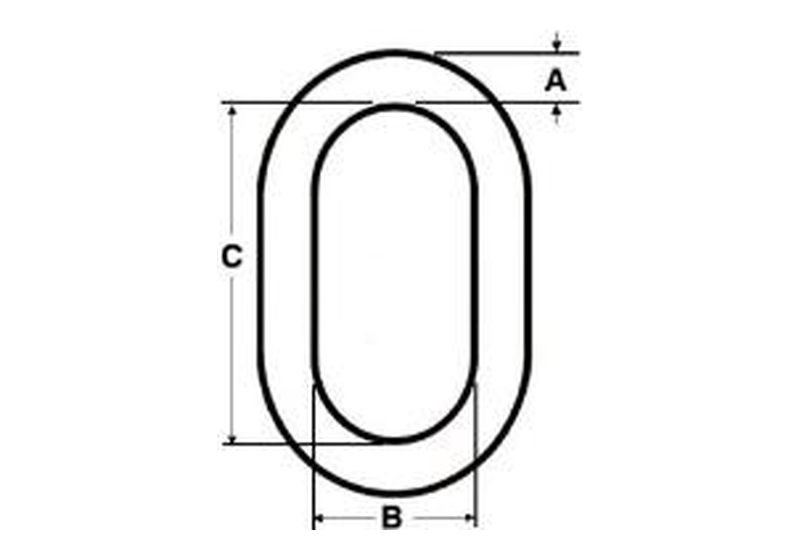

All dimensions in inches unless noted. A = Wire diameter, B = Inside width, C = Inside length.
Ships direct. Shipping is calculated at checkout.
