Description

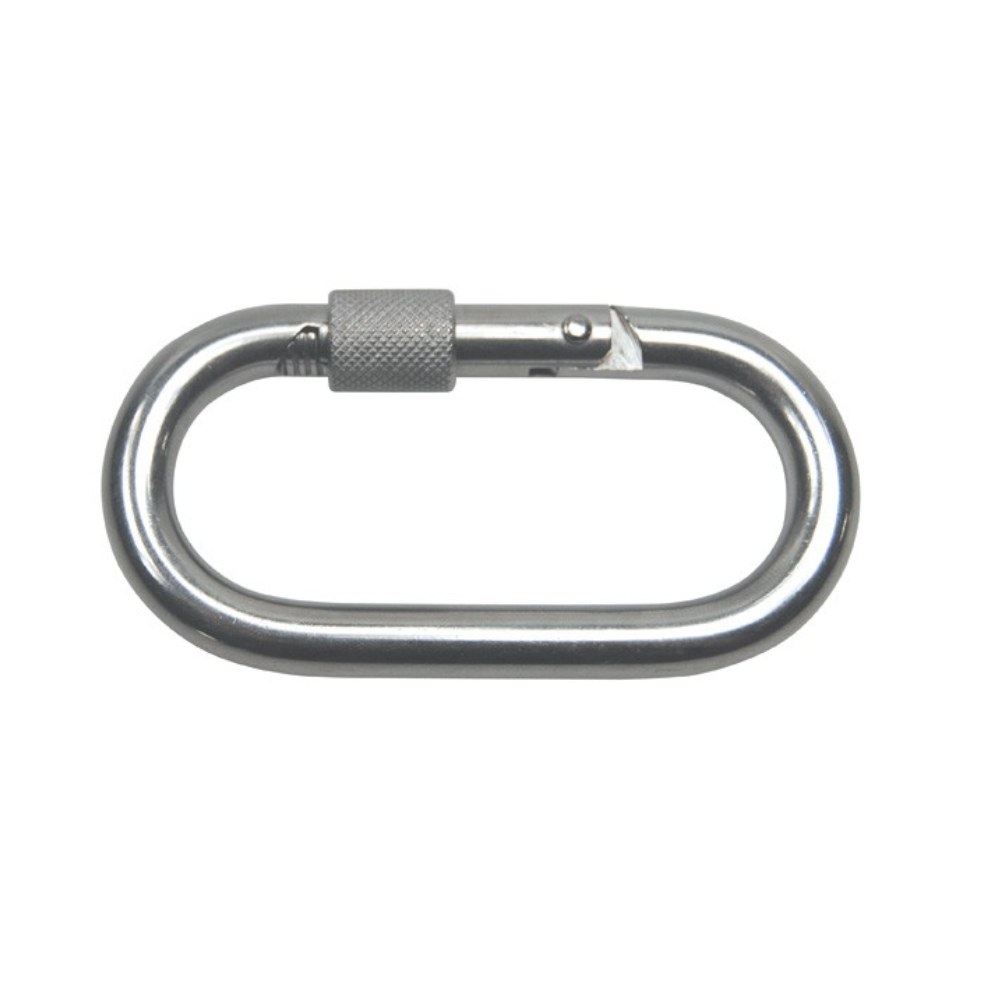

This oval snap hook with screw lock lets you thread the nut over the gate for a connection that will not open on its own. It has a higher working load limit than the plain oval hook, from 250 lb at 1/4" up to 1,000 lb.
It is a good choice for semi-permanent connections such as hanging planters, swing chains and anchored covers.
Specifications
| Material | 316 Stainless Steel (AISI 316) |
|---|---|
| Working load limit | 250 to 1,000 lb, by size |
| Sizes | 1/4", 5/16", 3/8", 7/16" |
| Weight per piece | 0.06 to 0.4 lb, by size |
Dimensions by Size
| Part No. | Size | A: Wire diameter | B: Overall length | C: Overall height | D: Gate opening | Weight (lb) | WLL (lb) |
|---|---|---|---|---|---|---|---|
| MT6OVHK-14S | 1/4" | 1/4" | 2-3/8" | 1-3/16" | 1/4" | 0.06 | 200 |
| MT6OVHK-516S | 5/16" | 5/16" | 3-3/16" | 1-9/16" | 5/16" | 0.15 | 550 |
| MT6OVHK-38S | 3/8" | 3/8" | 4" | 2" | 3/8" | 0.29 | 650 |
| MT6OVHK-716S | 7/16" | 7/16" | 4-3/4" | 2-3/8" | 7/8" | 0.40 | 1,000 |
All dimensions in inches unless noted. A = Wire diameter, B = Overall length, C = Overall height, D = Gate opening.
Ships direct. Shipping is calculated at checkout.
