Description

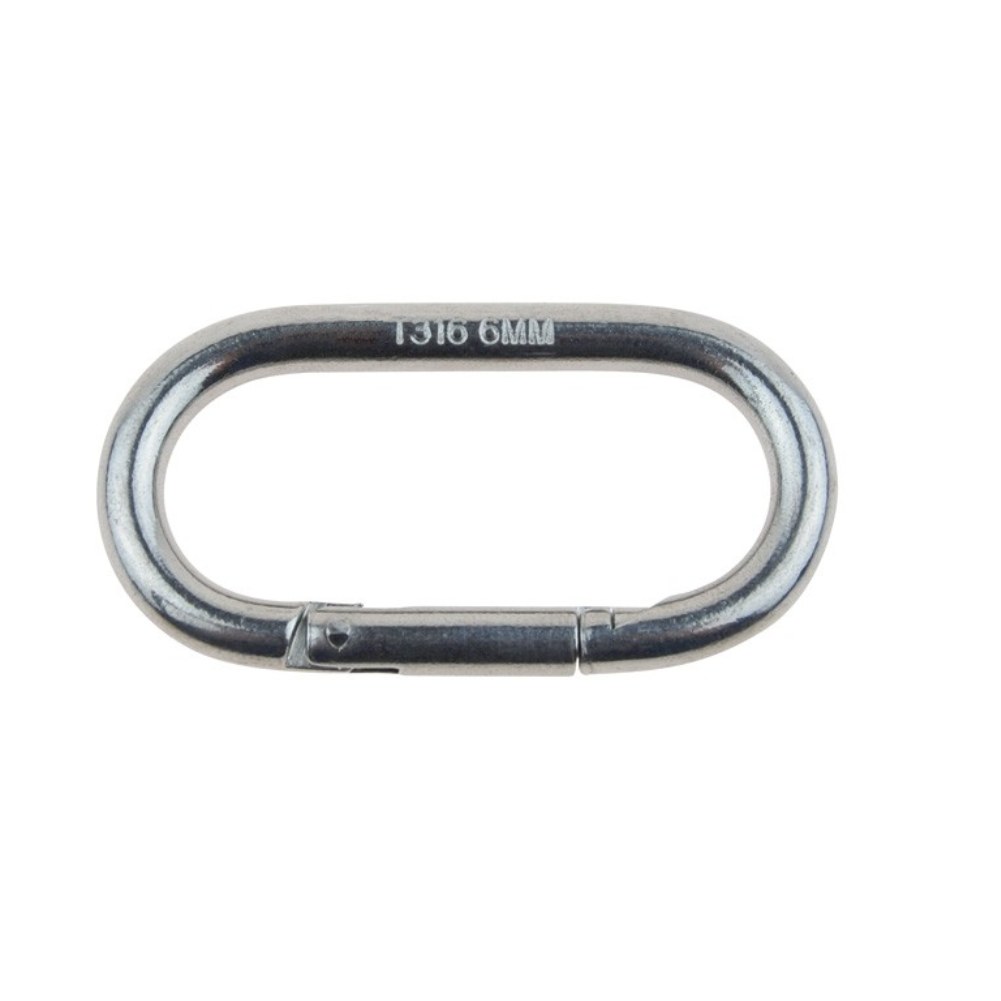

The rounded shape of this 316 stainless oval snap hook lets the load settle at the bottom of the hook. It has a straight spring gate with a working load limit from 150 lb on the 1/4" size to 700 lb on the 7/16".
Use it on boat fenders, tarp and cover tie-downs, chain ends and light rigging around the house or dock.
Specifications
| Material | 316 Stainless Steel (AISI 316) |
|---|---|
| Working load limit | 150 to 700 lb, by size |
| Sizes | 1/4", 5/16", 3/8", 7/16" |
| Weight per piece | 0.06 to 0.4 lb, by size |
Dimensions by Size
| Part No. | Size | A: Wire diameter | B: Overall length | C: Overall height | D: Gate opening | Weight (lb) | WLL (lb) |
|---|---|---|---|---|---|---|---|
| MT6OVHK-14 | 1/4" | 1/4" | 2-3/8" | 1-3/16" | 3/8" | 0.06 | 150 |
| MT6OVHK-516 | 5/16" | 5/16" | 3-7/32" | 1-5/8" | 9/16" | 0.15 | 400 |
| MT6OVHK-38 | 3/8" | 3/8" | 4" | 2" | 5/8" | 0.29 | 550 |
| MT6OVHK-716 | 7/16" | 7/16" | 4-3/4" | 2-3/8" | 7/8" | 0.40 | 700 |

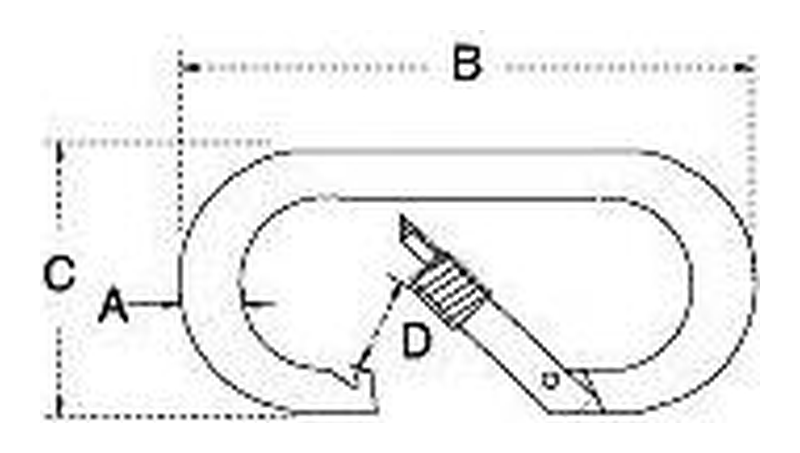

All dimensions in inches unless noted. A = Wire diameter, B = Overall length, C = Overall height, D = Gate opening.
Ships direct. Shipping is calculated at checkout.
