Description

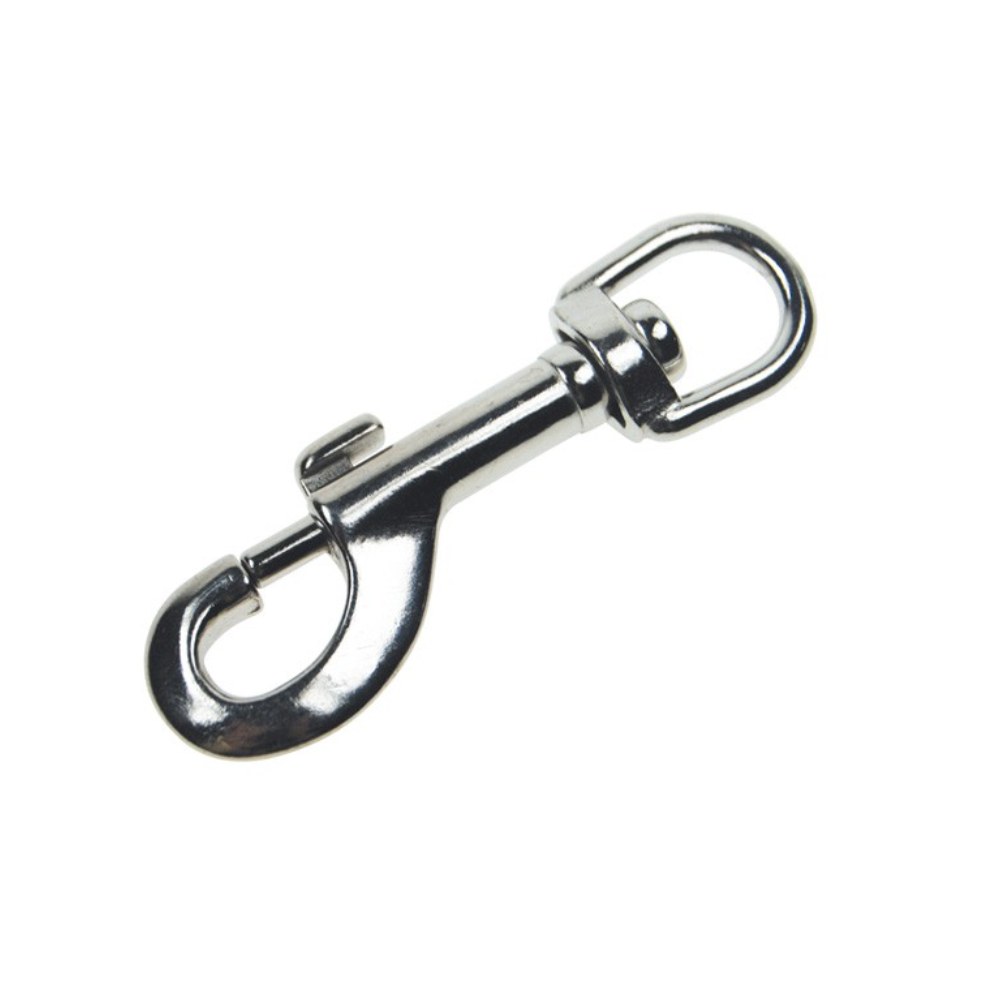

This swivel eye bolt snap turns freely at the eye, so a strap or rope will not wind up when the load moves. The WLL is 120 to 360 lb, depending on size.
It is a favorite for dog leashes, horse tack, flag halyards and cover straps.
Features
- Swivel action to reduce line twist
Specifications
| Material | 316 Stainless Steel (AISI 316) |
|---|---|
| Working load limit | 120 to 360 lb, by size |
| Sizes | 7/16", 9/16", 5/8", 3/4", 1-1/4" |
| Weight per piece | 0.05 to 0.24 lb, by size |
Dimensions by Size
| Part No. | Size | A: Eye inside diameter | B: Gate opening | C: Overall length | Weight (lb) | WLL (lb) |
|---|---|---|---|---|---|---|
| MT6SEBNP-10MM | 7/16" | 7/16" | 5/16" | 2-1/2" | 0.05 | 120 |
| MT6SEBNP-12MM | 9/16" | 9/16" | 3/8" | 3-5/16" | 0.07 | 160 |
| MT6SEBNP-16MM | 5/8" | 5/8" | 3/8" | 3-1/2" | 0.10 | 350 |
| MT6SEBNP-19MM | 3/4" | 3/4" | 3/8" | 3-3/4" | 0.15 | 360 |
| MT6SEBNP-32MM | 1-1/4" | 1-1/4" | 1/2" | 4-3/4" | 0.24 | 320 |

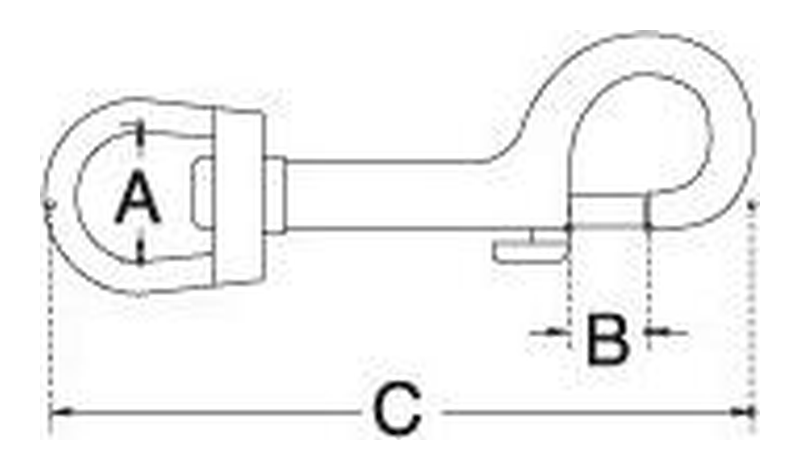

All dimensions in inches unless noted. A = Eye inside diameter, B = Gate opening, C = Overall length.
Ships direct. Shipping is calculated at checkout.
