Description

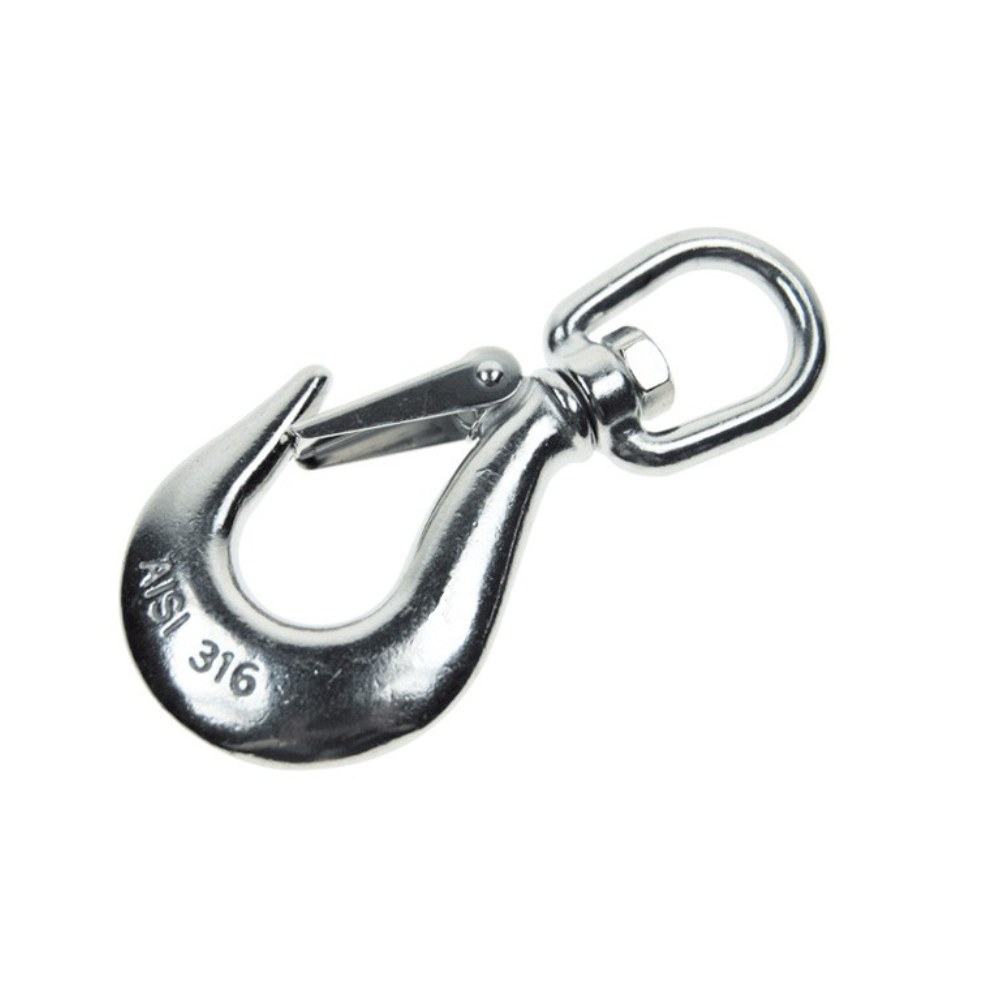

The eye on this swivel eye hook with latch turns 360 degrees, so the load can rotate without twisting the line above it. A spring latch keeps slings in place, and the WLL is 880 to 2,640 lb, depending on size.
Use it on hoist lines, block and tackle and hanging loads that need to turn.
Features
- Swivel action to reduce line twist
Specifications
| Material | 316 Stainless Steel (AISI 316) |
|---|---|
| Working load limit | 880 to 2,640 lb, by size |
| Sizes | 1/4", 5/16", 3/8", 1/2" |
| Weight per piece | 0.04 to 2.3 lb, by size |

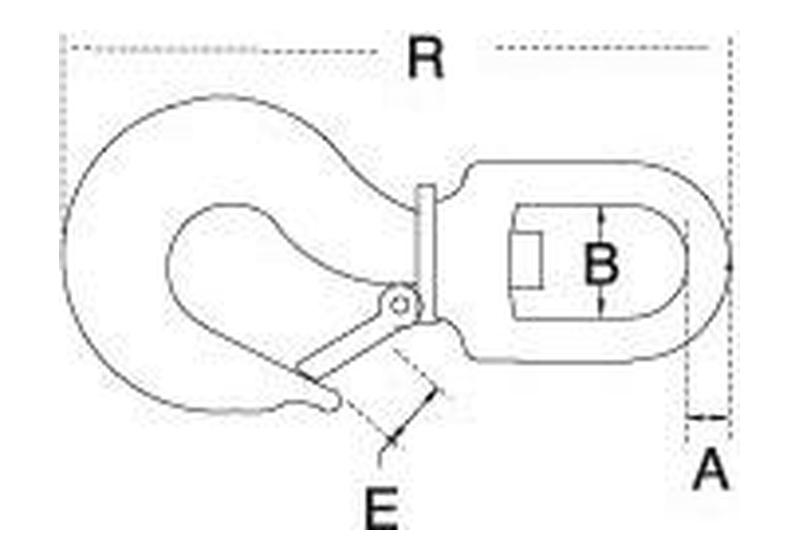

Dimensions by Size
| Part No. | Size | B: Eye inside diameter | E: Throat opening | R: Overall length | Weight (lb) | WLL (lb) |
|---|---|---|---|---|---|---|
| MT6SEHK-14L | 1/4" | 7/8" | 5/8" | 4" | 0.04 | 880 |
| MT6SEHK-516L | 5/16" | 1-1/8" | 3/4" | 5" | 0.70 | 1,320 |
| MT6SEHK-38L | 3/8" | 1-3/16" | 7/8" | 6" | 1.18 | 1,760 |
| MT6SEHK-12L | 1/2" | 1-3/8" | 1-3/16" | 8" | 2.30 | 2,640 |
All dimensions in inches unless noted. B = Eye inside diameter, E = Throat opening, R = Overall length.
Ships direct. Shipping is calculated at checkout.
