Description

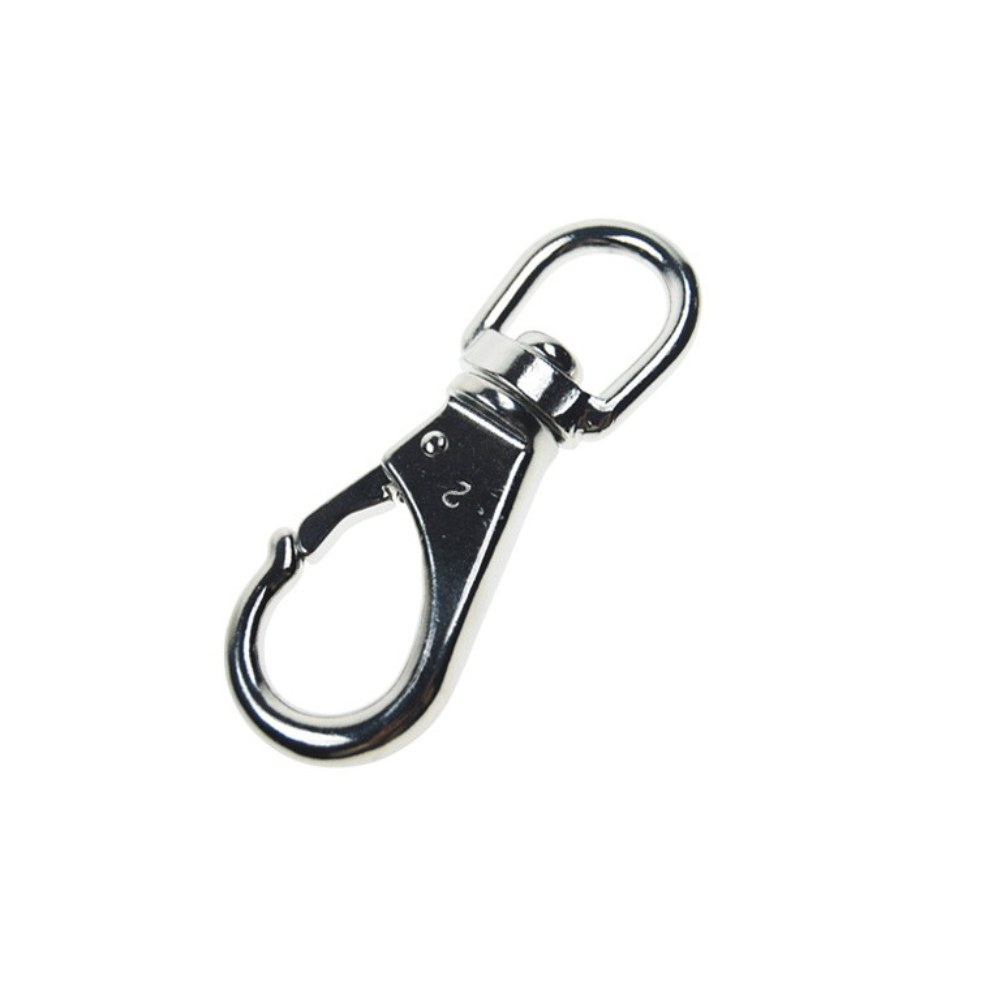

This compact swivel eye snap has a spring gate and an eye that turns. It is smaller and lighter than a bolt snap, so it suits light-duty lines.
Use it on flag halyards, key and tool lanyards and light marine lines.
Features
- Swivel action to reduce line twist
Specifications
| Material | 316 Stainless Steel (AISI 316) |
|---|---|
| Working load limit | 120 to 220 lb, by size |
| Sizes | 1/2", 13mm, 5/8", 3/4", 7/8", 21mm |
| Weight per piece | 0.1 to 0.75 lb, by size |
Dimensions by Size
| Part No. | Size | A: Eye inside diameter | B: Eye wire thickness | C: Gate opening | D: Overall length | Weight (lb) | WLL (lb) |
|---|---|---|---|---|---|---|---|
| MT6SENP-13MM | 1/2" | 9/16" | 5/32" | 1/4" | 2-9/16" | 0.10 | 120 |
| MT6SENP-13MM-S | 13mm | 9/16" | 5/32" | 1/4" | 2-9/16" | 0.10 | 120 |
| MT6SENP-16MM | 5/8" | 5/8" | 3/16" | 3/8" | 3-3/8" | 0.13 | 140 |
| MT6SENP-19MM | 3/4" | 3/4" | 1/4" | 1/2" | 3-7/8" | 0.19 | 160 |
| MT6SENP-21MM | 7/8" | 1" | 9/32" | 1/2" | 4-5/8" | 0.33 | 220 |
| MT6SENP-21MM-S | 21mm | 1" | 9/32" | 1/2" | 4-5/8" | 0.33 | 220 |

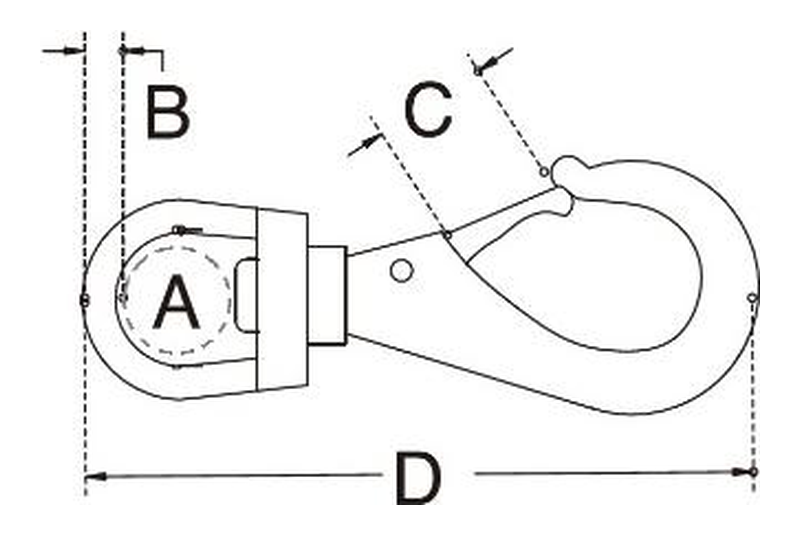

All dimensions in inches unless noted. A = Eye inside diameter, B = Eye wire thickness, C = Gate opening, D = Overall length.
