Description

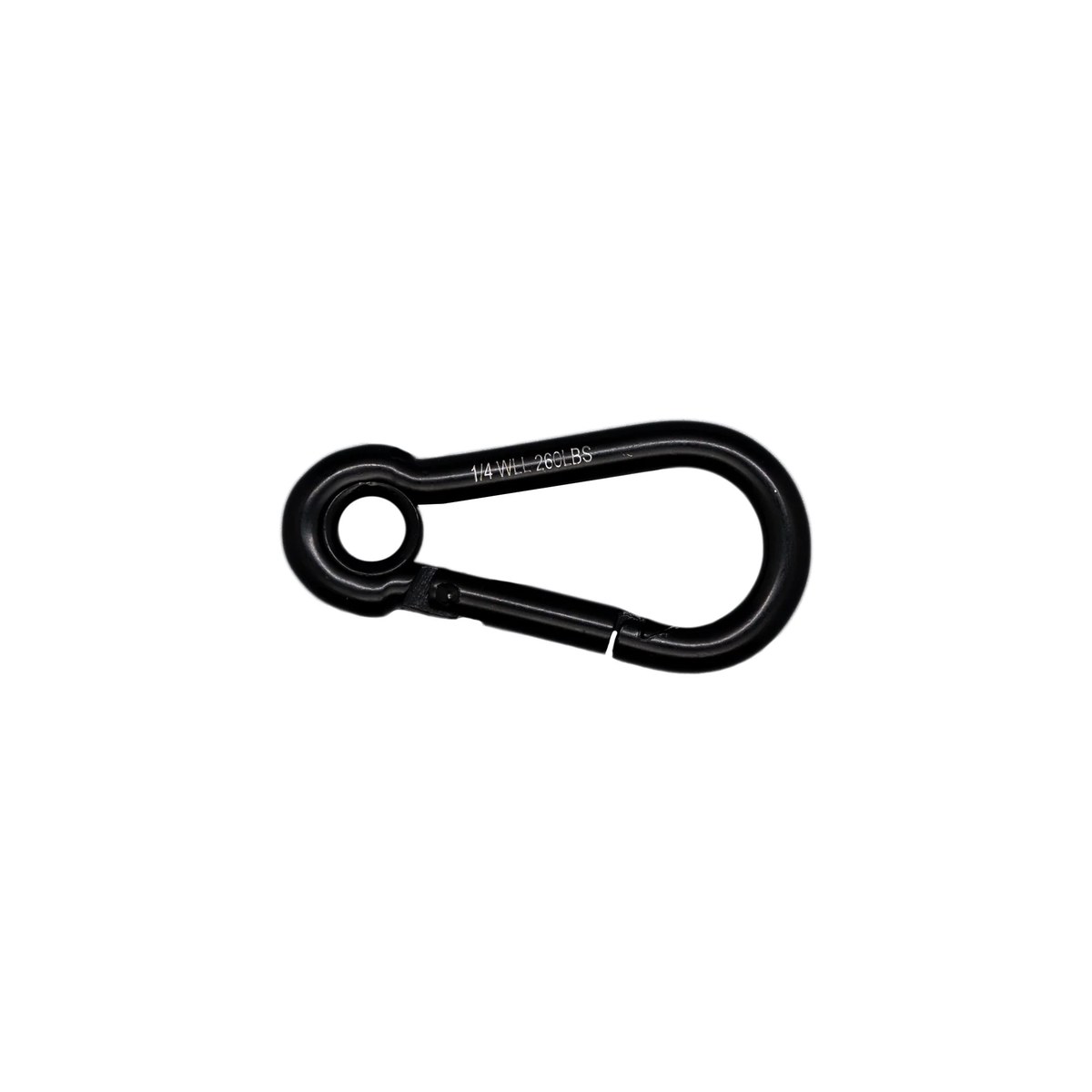

This carbon steel fixed eye snap has a solid, non-swiveling eye, which makes it a simple, low-cost clip for webbing, rope and straps.
Use it on bags, tarps, tie-downs and light-duty fasteners.
Features
- Eyelet end for attaching to rope or webbing
Specifications
| Material | Steel |
|---|---|
| Working load limit | 507 lb |
| Weight per piece | 0.15 lb |
Dimensions by Size
| Part No. | Size | A: Wire diameter | C: Eyelet inside diameter | D: Overall length | E: Gate opening | Weight (lb) | WLL (lb) |
|---|---|---|---|---|---|---|---|
| MCBSNAP-516E | 5/16" | 3/8" | 3-1/8" | 3/8" | 0.15 | 507 |
All dimensions in inches unless noted. A = Wire diameter, C = Eyelet inside diameter, D = Overall length, E = Gate opening.
Ships direct. Shipping is calculated at checkout.
