Description

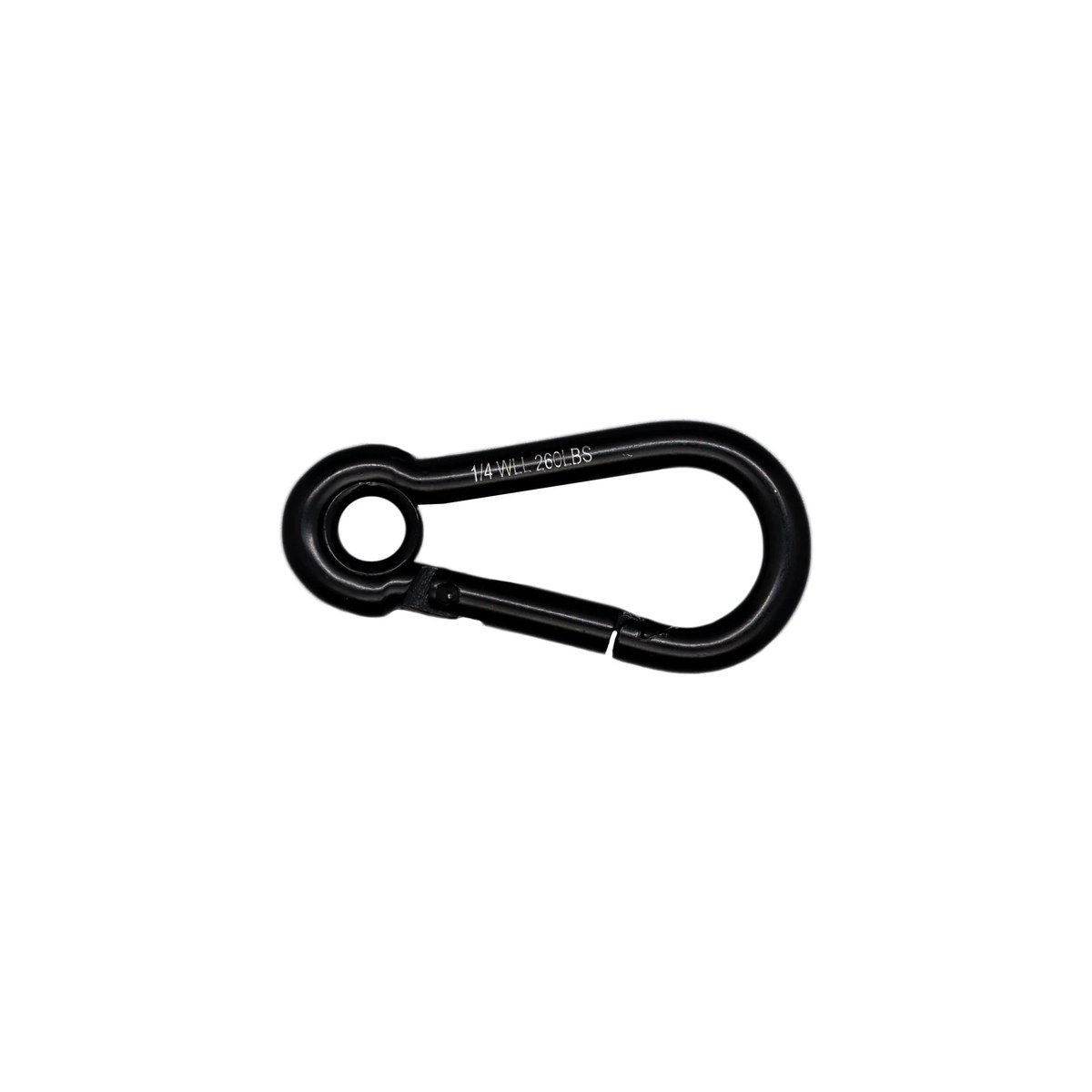

A carbon steel bolt snap is an economical spring-gate snap for dry, indoor or light-duty use, where stainless is more than you need.
It is used on pet leads, flag halyards, key rings, tarps and gear bags.
Features
- Eyelet end for attaching to rope or webbing
Specifications
| Material | Steel |
|---|---|
| Working load limit | 105 to 395 lb, by size |

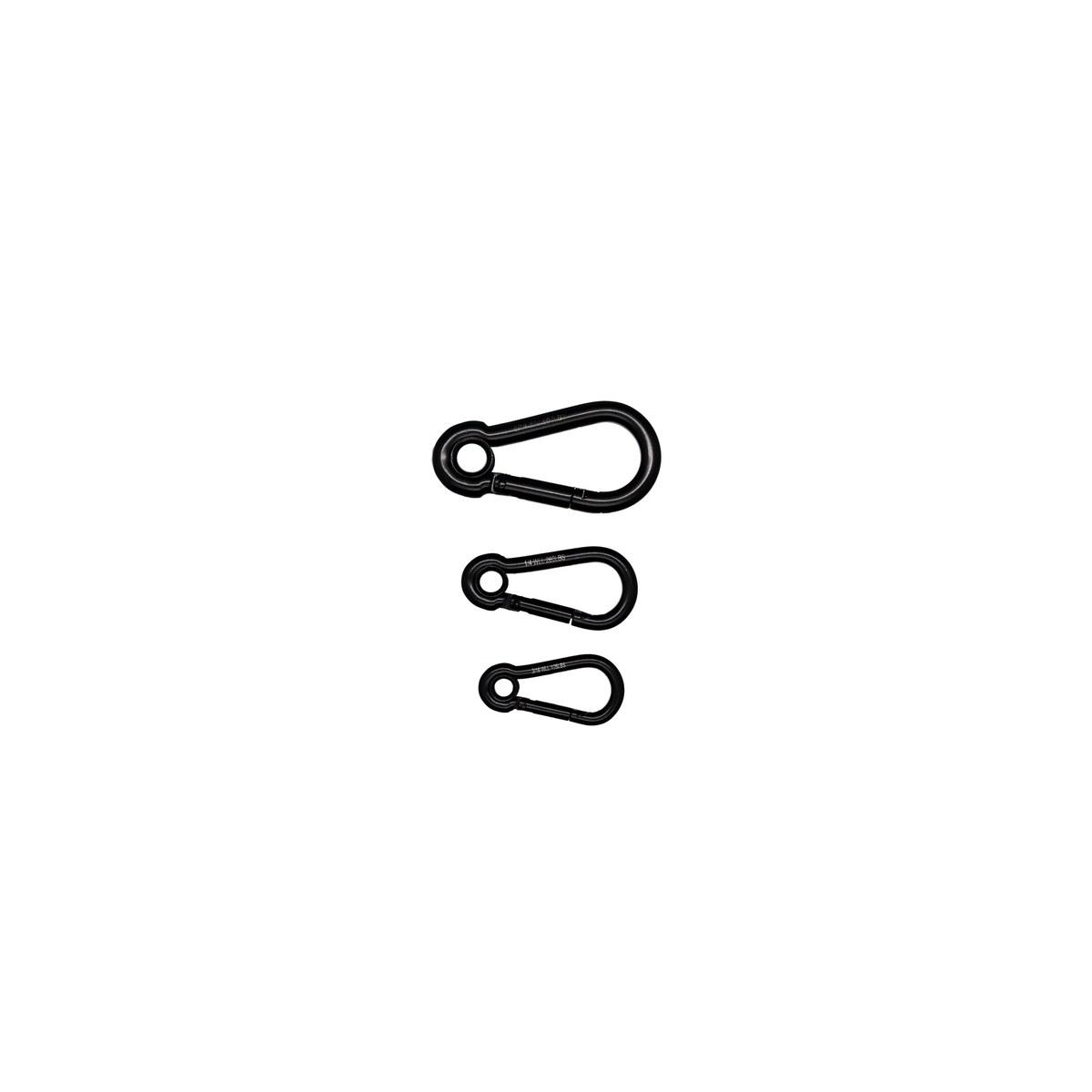

| Sizes | 1/4", 1/4" With Eyelet, 3/16" With Eyelet |
| Weight per piece | 0.04 to 0.06 lb, by size |
Dimensions by Size
| Part No. | Size | A: Wire diameter | B: Eye inside diameter | C: Eye outside height | D: Overall length | E: Gate opening | Weight (lb) | WLL (lb) |
|---|---|---|---|---|---|---|---|---|
| MCBSNAP-14 | 1/4" | 1/4" | 1/4" | 11/32" | 2-3/8" | 11/32" | 0.06 | 395 |
| MCBSNAP-14E | 1/4" With Eyelet | 1/4" | 9/32" | 2-3/8" | 5/16" | 395 | 0.06 | |
| MCBSNAP-316E | 3/16" With Eyelet | 3/16" | 1/4" | 2" | 1/4" | 105 | 0.04 |
All dimensions in inches unless noted. A = Wire diameter, B = Eye inside diameter, C = Eye outside height, D = Overall length, E = Gate opening.
Ships direct. Shipping is calculated at checkout.
