Description

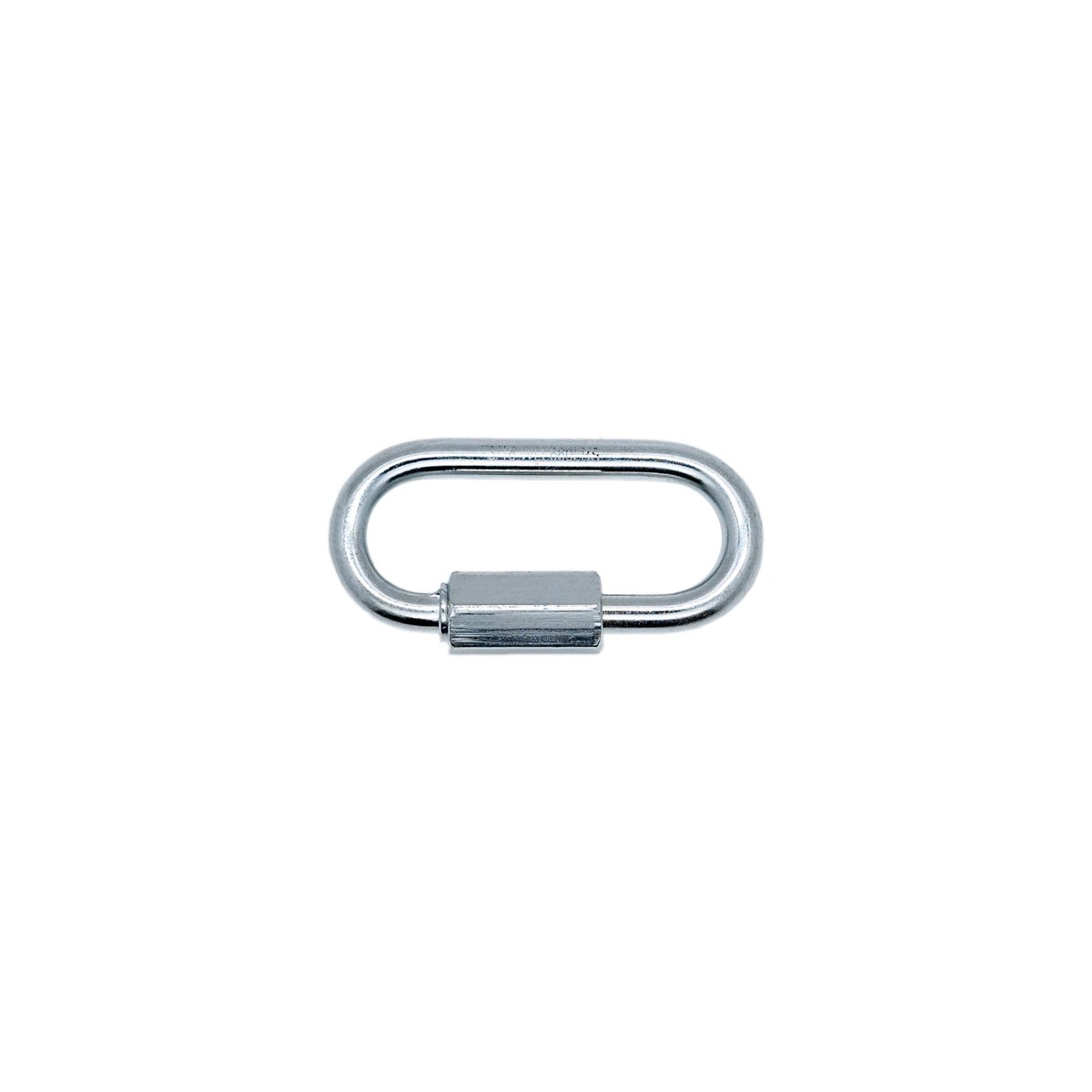

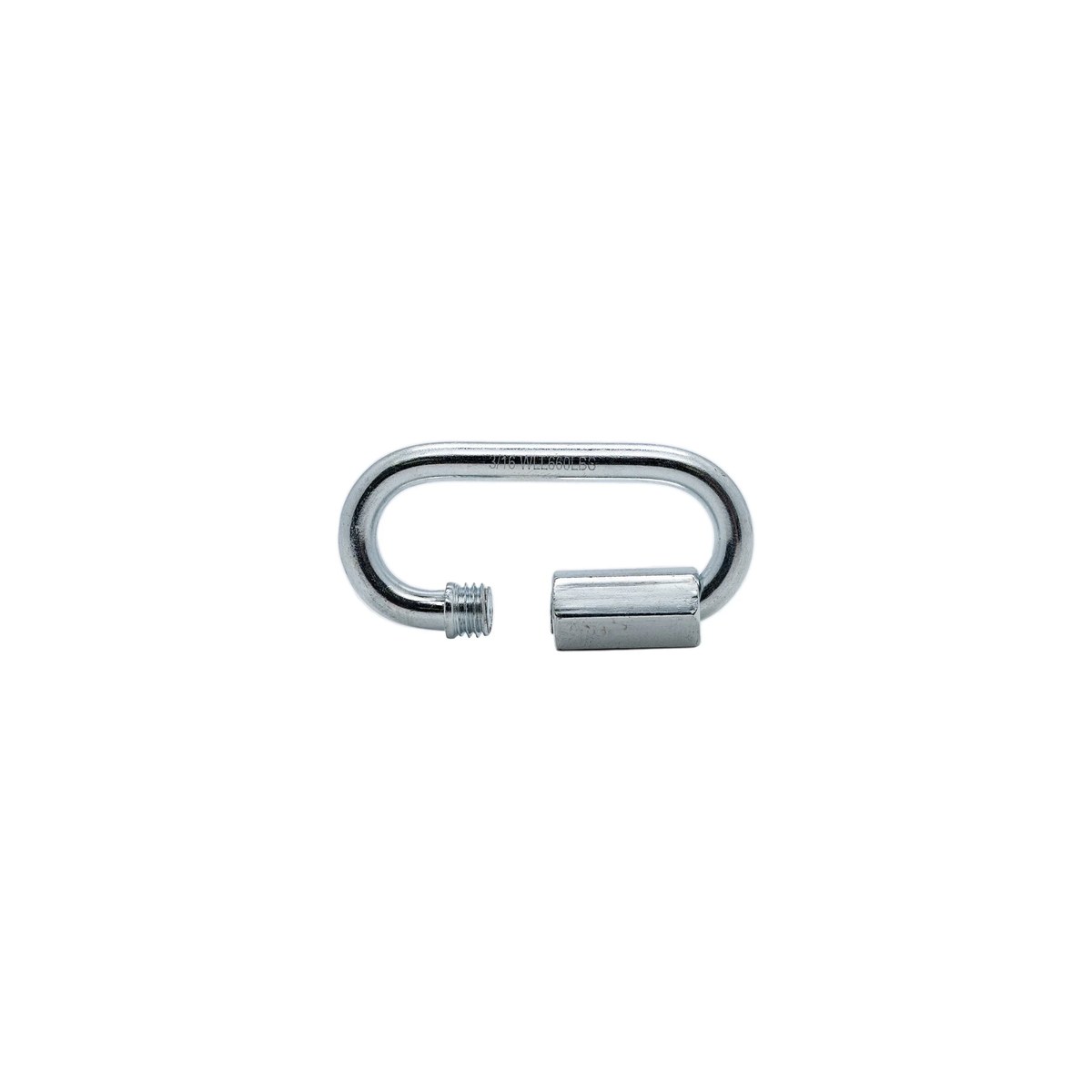

A zinc plated quick link opens with a threaded sleeve so you can join chain, rope eyes and hardware without tools.
Use it for indoor and light-duty connections such as swings, signs, chain and tie-downs.
Features
- Zinc plated finish
Specifications
| Working load limit | 610 lb |
|---|---|
| Weight per piece | 0.05 lb |
Dimensions by Size
| Part No. | Size | A: Wire diameter | B: Inside length | C: Inside width | D: Gate opening | L: Overall length | Weight (lb) | WLL (lb) |
|---|---|---|---|---|---|---|---|---|
| MZQKL-316 | 3/16″ | 1-19/32″ | 33/64″ | 9/32″ | 2″ | 0.06 | 610 |

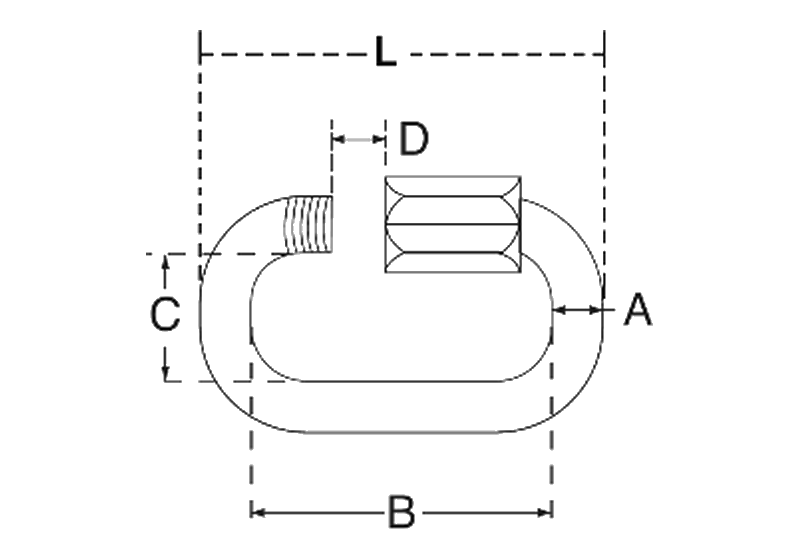

All dimensions in inches unless noted. A = Wire diameter, B = Inside length, C = Inside width, D = Gate opening, L = Overall length.
Ships direct. Shipping is calculated at checkout.
