Description

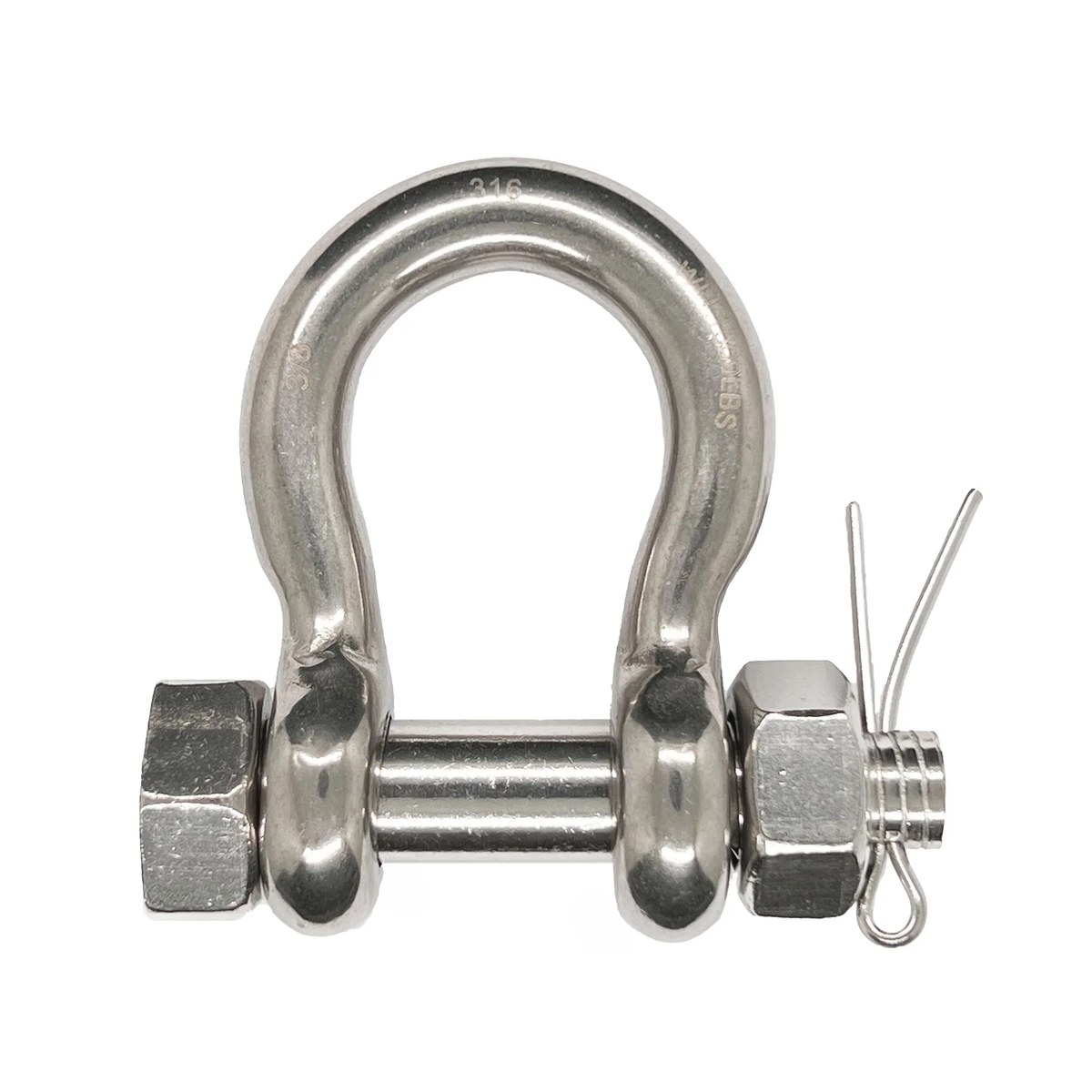

This bolt pin anchor shackle is secured with a bolt, a nut and a cotter pin, so it cannot back out under vibration or rotation. The pin is one size larger than the body for extra strength. The WLL is 880 to 10,000 lb, depending on size.
Use it for long-term or permanent rigging such as mooring connections, suspended loads and structural tie-backs.
Features
- Precision cast body
- Cast construction
- Bolt pin with nut for semi-permanent connections
Specifications
| Material | 316 Stainless Steel (AISI 316) |
|---|---|
| Working load limit | 880 to 10,000 lb, by size |
| Sizes | 3/16", 1/4", 5/16", 3/8", 7/16", 1/2", 5/8", 3/4", 7/8", 1" |
| Weight per piece | 0.04 to 4.6 lb, by size |
Dimensions by Size
| Part No. | Size | A: Body diameter | B: Pin diameter | C: Inside width | D: Inside length | Weight (lb) | WLL (lb) |
|---|---|---|---|---|---|---|---|
| MT6BPASHK-316 | 3/16" | 3/16" | 1/4" | 3/8" | 7/8" | 0.06 | 1,000 |
| MT6BPASHK-14 | 1/4" | 1/4" | 5/16" | 15/32" | 1" | 0.12 | 1,100 |
| MT6BPASHK-516 | 5/16" | 5/16" | 3/8" | 5/8" | 1-1/4" | 0.21 | 1,300 |
| MT6BPASHK-38 | 3/8" | 3/8" | 15/32" | 5/8" | 1-1/2" | 0.30 | 1,500 |
| MT6BPASHK-716 | 7/16" | 7/16" | 1/2" | 3/4" | 1-5/8" | 0.45 | 2,000 |
| MT6BPASHK-12 | 1/2" | 1/2" | 5/8" | 7/8" | 1-7/8" | 0.70 | 3,000 |
| MT6BPASHK-58 | 5/8" | 5/8" | 3/4" | 1-1/16" | 2-5/16" | 1.30 | 4,000 |
| MT6BPASHK-34 | 3/4" | 3/4" | 7/8" | 1-5/16" | 2-15/16" | 2.55 | 6,000 |
| MT6BPASHK-78 | 7/8" | 7/8" | 1" | 1-1/2" | 3-7/16" | 3.40 | 8,000 |
| MT6BPASHK-1 | 1" | 1" | 1-1/8" | 1-5/8" | 3-3/4" | 4.80 | 10,000 |
All dimensions in inches unless noted. A = Body diameter, B = Pin diameter, C = Inside width, D = Inside length.
Ships direct. Shipping is calculated at checkout.
