Description

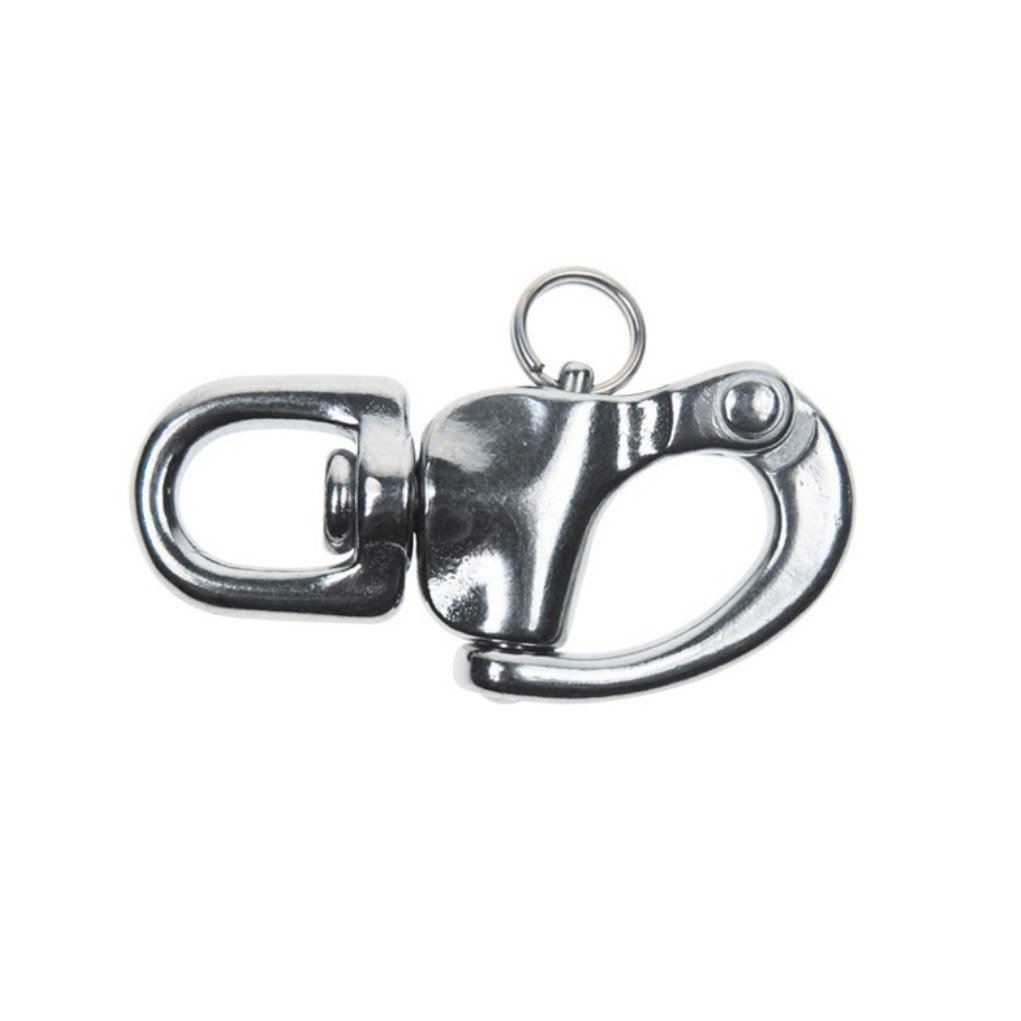

Pull the pin on this eye swivel snap shackle and it opens right away, even under load. The swivel eye keeps lines from twisting.
Sailors use it on halyards, spinnaker sheets and other lines that need to be released fast.
Features
- Swivel action to reduce line twist
Specifications
| Material | 316 Stainless Steel (AISI 316) |
|---|---|
| Working load limit | 1,000 to 2,100 lb, by size |
| Sizes | 1/2", 3/4", 1" |
| Weight per piece | 0.15 to 0.75 lb, by size |
Dimensions by Size
| Part No. | Size | L: Overall length | A: Snap opening | B: Eye inside width | Weight (lb) | WLL (lb) |
|---|---|---|---|---|---|---|
| MT6ESNHK-70MM | 1/2" | 2-3/4" | 1/2" | 1/2" | 0.15 | 1,000 |
| MT6ESNHK-87MM | 3/4" | 3-1/2" | 3/4" | 5/8" | 0.26 | 1,500 |
| MT6ESNHK-124MM | 1" | 5" | 1" | 1" | 0.75 | 2,100 |

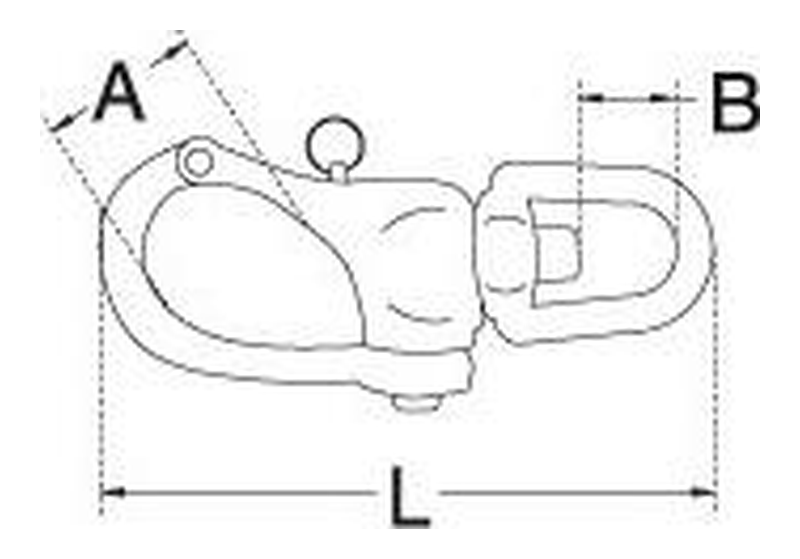

All dimensions in inches unless noted. L = Overall length, A = Snap opening, B = Eye inside width.
Ships direct. Shipping is calculated at checkout.
