Description

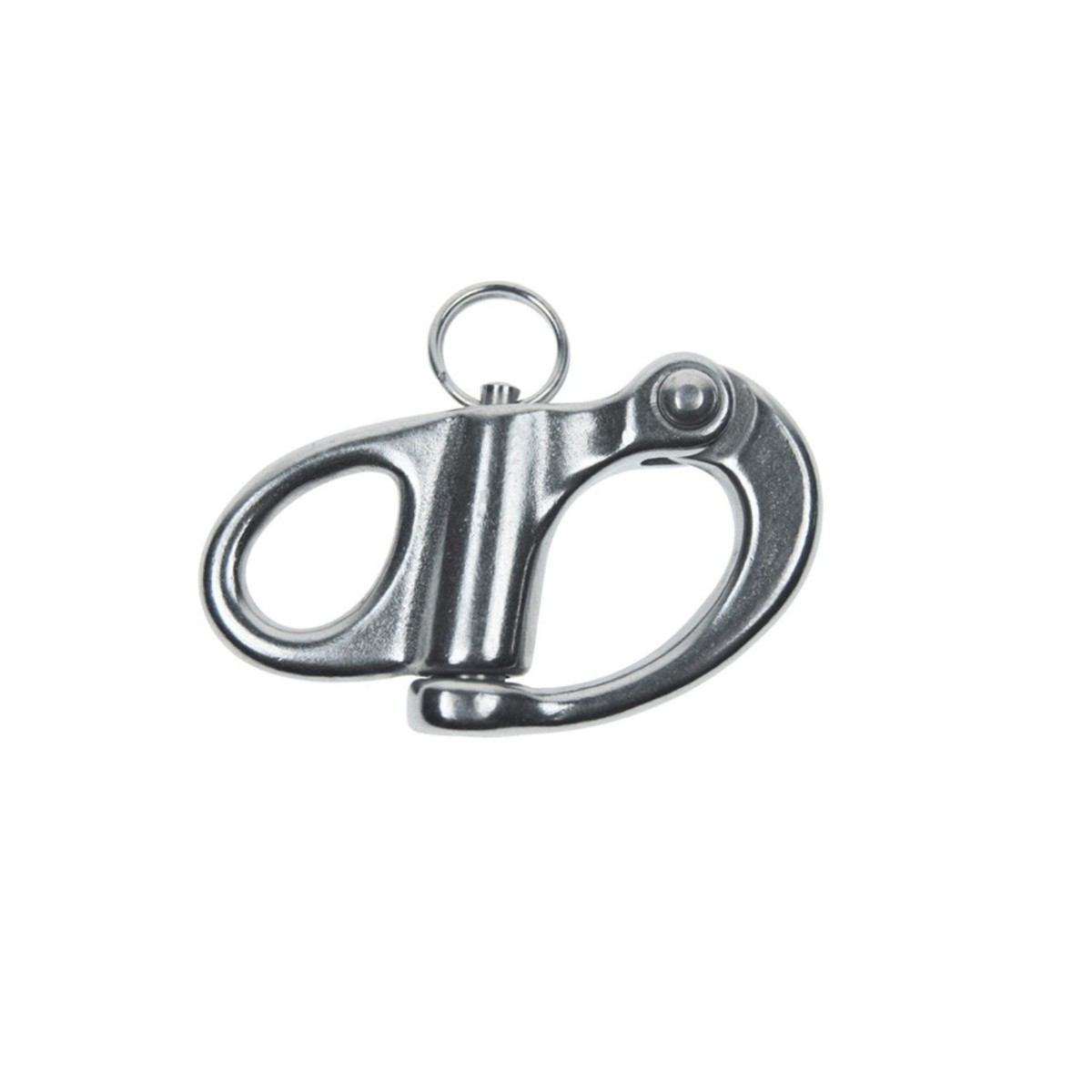

This fixed snap shackle opens with a pull of the pin, even under load. The eye is fixed, so it is lighter and simpler than a swivel model. Working load limits range from 1,000 to 2,100 lb by size.
Sailors use it on spinnaker sheets, halyards, tethers and other lines that need a fast release.
Specifications
| Material | 316 Stainless Steel (AISI 316) |
|---|---|
| Working load limit | 1,000 to 2,100 lb, by size |
| Sizes | 52mm, 66mm, 96mm |
| Weight per piece | 0.1 to 0.52 lb, by size |
Dimensions by Size
| Part No. | Size | L: Overall length | A: Snap opening | B: Eye inside width | Weight (lb) | WLL (lb) |
|---|---|---|---|---|---|---|
| MT6FSNHK-52 | 52mm | 2″ | 1/2″ | 3/8″ | 0.10 | 1,000 |
| MT6FSNHK-66 | 66mm | 2-3/4″ | 3/4″ | 1/2″ | 0.20 | 1,500 |
| MT6FSNHK-99 | 96mm | 3-3/4″ | 1″ | 3/4″ | 0.52 | 2,100 |
All dimensions in inches unless noted. L = Overall length, A = Snap opening, B = Eye inside width.
Ships direct. Shipping is calculated at checkout.
