Description

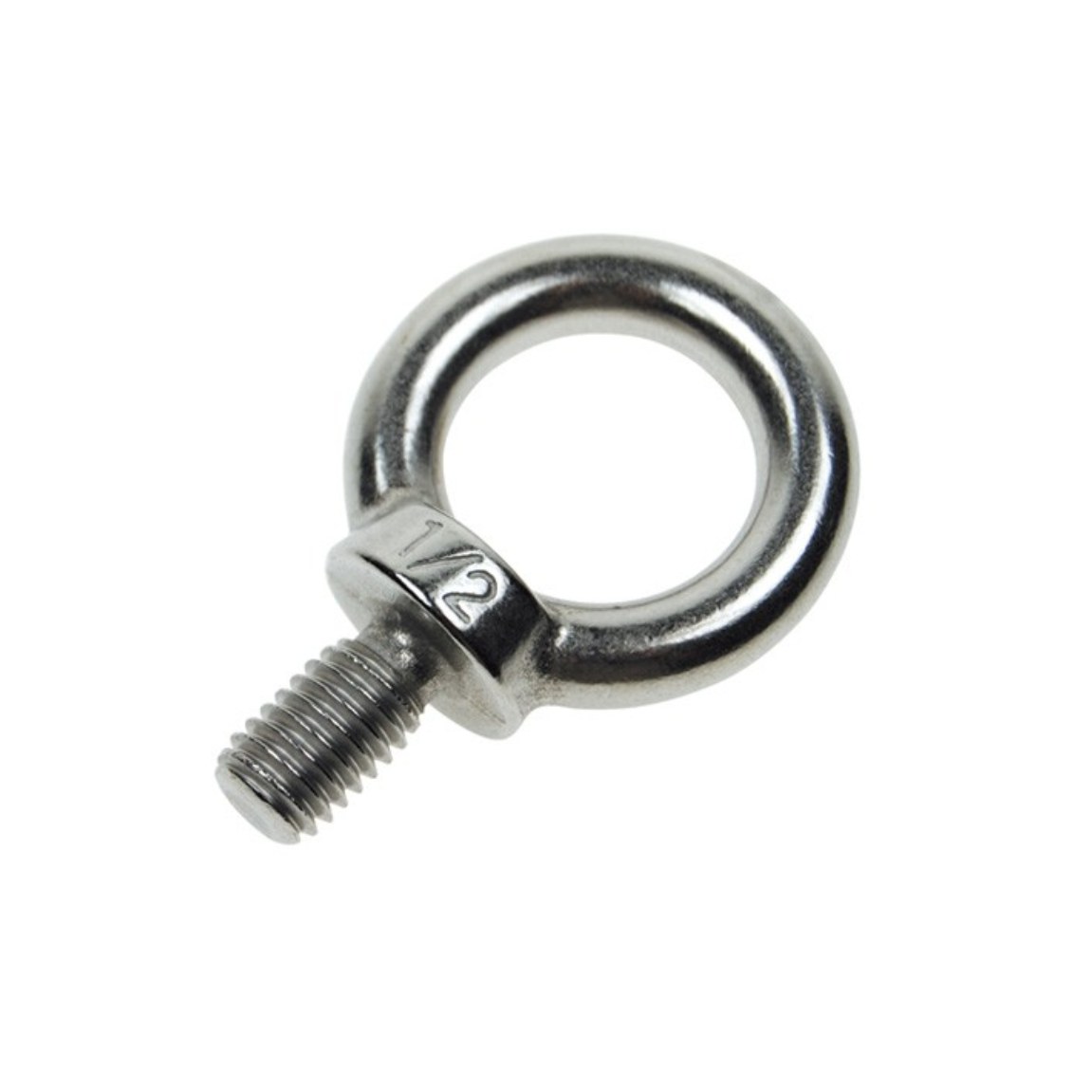

A collar under the eye of this lifting eye bolt seats against the surface and spreads the load. Thread it into a tapped hole for a solid lifting point. WLL ranges from 400 to 9,500 lb, depending on size.
Use it on motors, machinery, molds and enclosures that need to be lifted or tied down.
Specifications
| Material | 316 Stainless Steel (AISI 316) |
|---|---|
| Working load limit | 400 to 9,500 lb, by size |
| Sizes | 1/4", 5/16", 3/8", 1/2", 5/8", 3/4", 7/8", 1" |
| Weight per piece | 0.05 to 1.4 lb, by size |

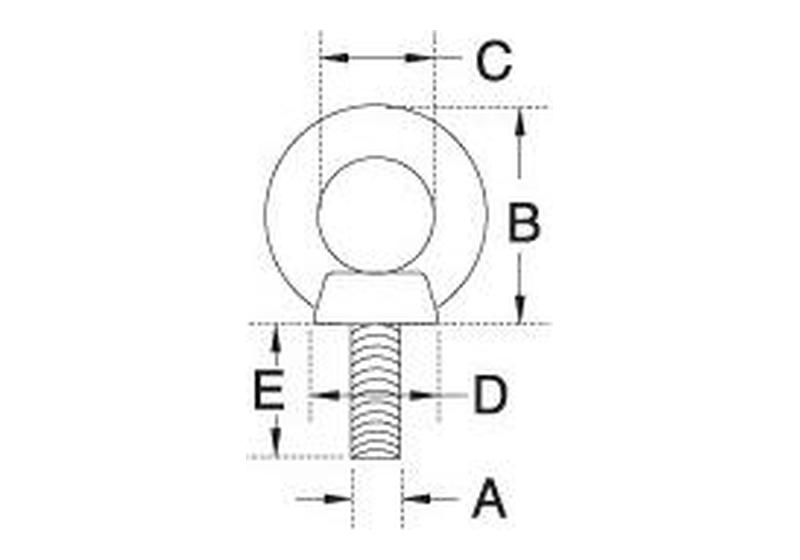

Dimensions by Size
| Part No. | Size | A: Thread size | B: Eye outside height | E: Thread length | Weight (lb) | WLL (lb) |
|---|---|---|---|---|---|---|
| MT6LIEB-14 | 1/4" | 1/4" | 1" | 1/2" | 0.05 | 400 |
| MT6LIEB-516 | 5/16" | 5/16" | 1-1/4" | 5/8" | 0.07 | 800 |
| MT6LIEB-38 | 3/8" | 3/8" | 1-5/8" | 11/16" | 0.11 | 1,350 |
| MT6LIEB-12 | 1/2" | 1/2" | 2" | 7/8" | 0.30 | 2,100 |
| MT6LIEB-58 | 5/8" | 5/8" | 2-5/16" | 1-1/16" | 0.45 | 3,800 |
| MT6LIEB-34 | 3/4" | 3/4" | 2-3/4" | 1-1/8" | 0.70 | 6,200 |
| MT6LIEB-78 | 7/8" | 7/8" | 3-1/4" | 1-3/8" | 1.30 | 8,200 |
| MT6LIEB-1 | 1" | 1" | 3-7/16" | 1-3/8" | 1.40 | 9,500 |
All dimensions in inches unless noted. A = Thread size, B = Eye outside height, E = Thread length.
