Description

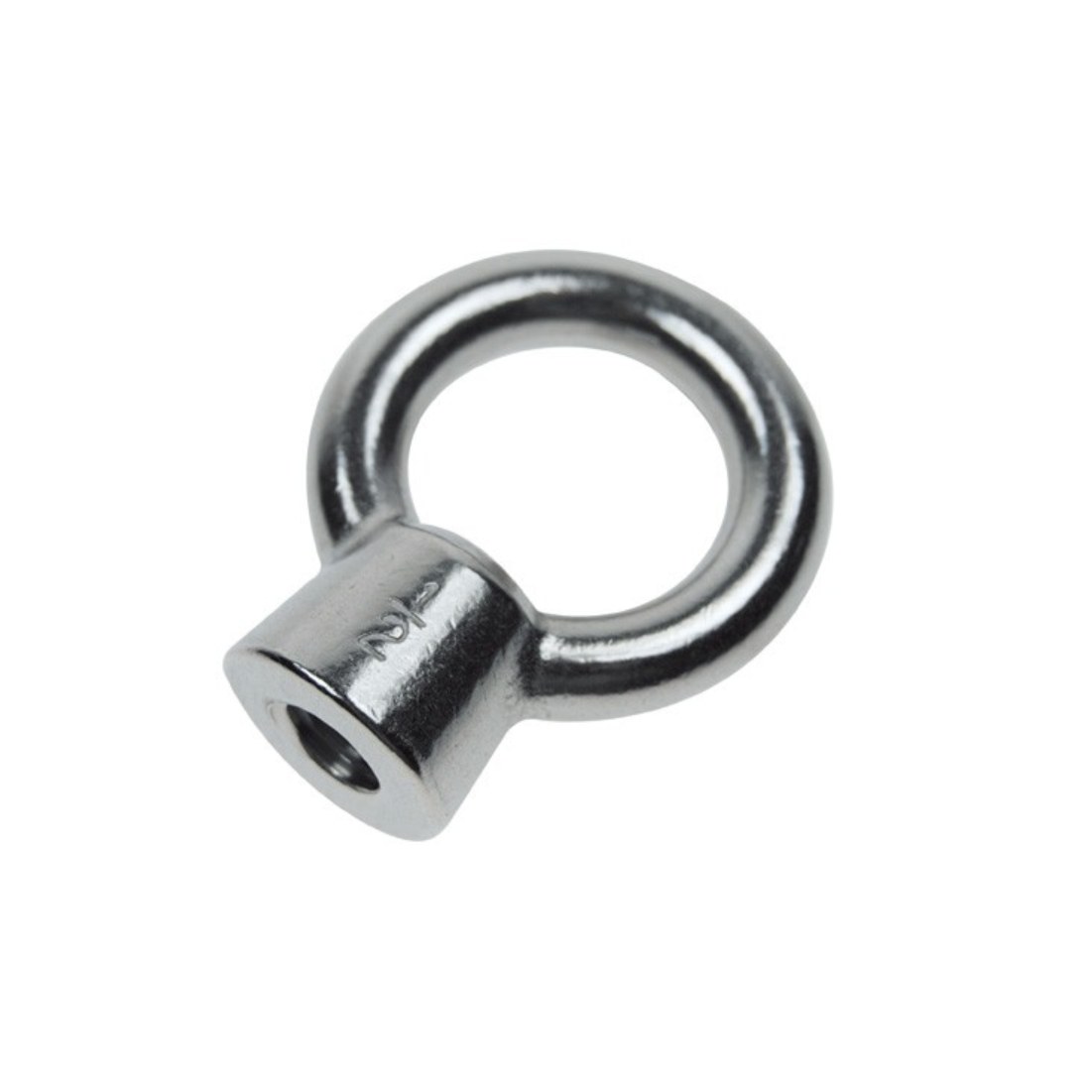

Thread a lifting eye nut onto a stud or bolt and you have an instant lifting or tie-down point. Ratings run from 400 lb on the 1/4" to 9,000 lb on the largest size.
Use it on machinery, engines, enclosures and structural studs, and as a removable rigging point.
Specifications
| Material | 316 Stainless Steel (AISI 316) |
|---|---|
| Working load limit | 400 to 9,000 lb, by size |
| Sizes | 1/4", 5/16", 3/8", 1/2", 5/8", 3/4", 7/8", 1", 1-1/4", 3/8 Metric |
| Weight per piece | 0.05 to 0.8 lb, by size |
Dimensions by Size
| Part No. | Size | Tap size | A: Eye section thickness | B: Overall height | D: Base width | Weight (lb) | WLL (lb) |
|---|---|---|---|---|---|---|---|
| MT6LEN-14 | 1/4" | 1/4" | 3/16" | 1-3/16" | 1/2" | 0.05 | 400 |
| MT6LEN-516 | 5/16" | 5/16" | 7/32" | 1-1/2" | 5/8" | 0.05 | 800 |
| MT6LEN-38 | 3/8" | 3/8" | 5/16" | 1-7/8" | 3/4" | 0.12 | 1,000 |
| MT6LEN-12 | 1/2" | 1/2" | 3/8" | 2-3/8" | 1" | 0.30 | 2,000 |
| MT6LEN-58 | 5/8" | 5/8" | 7/16" | 2-11/16" | 1-5/64" | 0.35 | 3,200 |
| MT6LEN-34 | 3/4" | 3/4" | 5/8" | 3-3/8" | 1-5/16" | 0.80 | 4,700 |
| MT6LEN-78 | 7/8" | 7/8" | 3/4" | 3-7/8" | 1-19/32" | 5,800 | |
| MT6LEN-1 | 1" | 1" | 1" | 4-5/16" | 1-3/4" | 7,500 | |
| MT6LEN-114 | 1-1/4" | 1-1/4" | 1-1/4" | 5-3/8" | 2-9/32" | 9,000 | |
| MT6LEN-38M | 3/8 Metric | M10 | 5/16" | 1-7/8" | 3/4" | 0.12 | 1,000 |

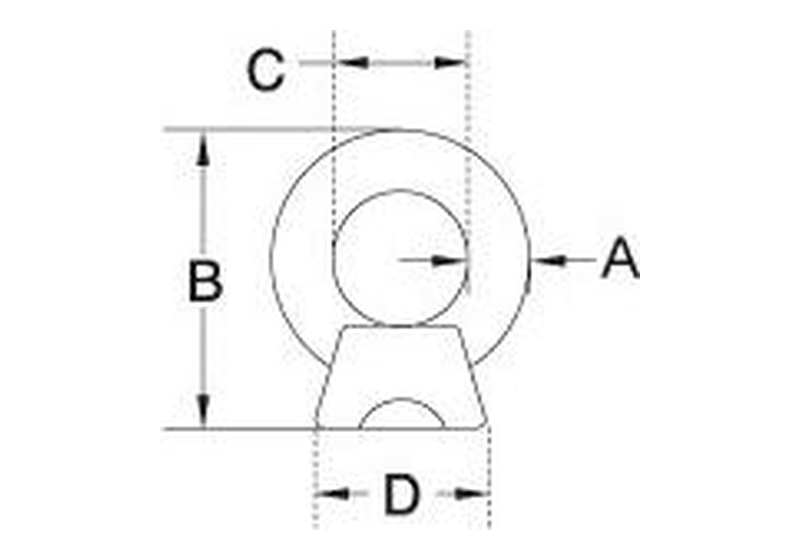

All dimensions in inches unless noted. A = Eye section thickness, B = Overall height, D = Base width.
Ships direct. Shipping is calculated at checkout.
