Description

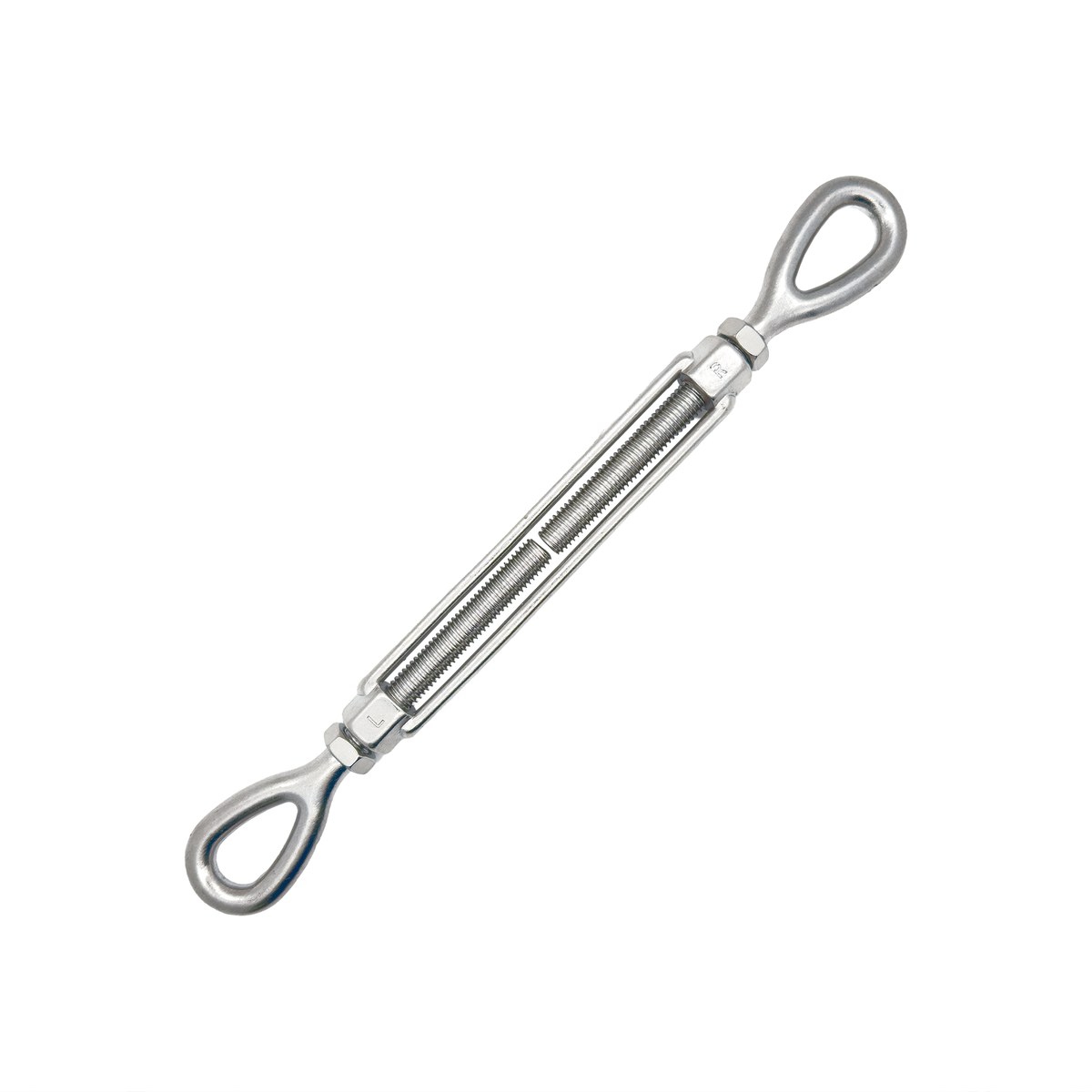

A US style eye and eye turnbuckle is heavier than the European pattern and comes in longer take-up lengths. Sizes run from 1/4" x 4" (575 lb) to 1" x 12" (9,250 lb).
Use it for guy wires, structural cable bracing, mooring and heavy rigging.
Features
- UNC threading
Specifications
| Material | 316 Stainless Steel (AISI 316) |
|---|---|
| Working load limit | 575 to 9,250 lb, by size |
| Sizes | 1/4" x 4", 5/16" x 4-1/2", 3/8" x 6", 1/2" x 6", 1/2" x 12", 5/8" x 6", 5/8" x 12", 3/4" x 6", 3/4" x 12", 1" x 6", 1" x 12" |
| Weight per piece | 1 to 13.5 lb, by size |
Dimensions by Size
| Part No. | Size | A: Thread size | B: Body length | WLL (lb) |
|---|---|---|---|---|
| MT6OBTBK-EE14-4US | 1/4" x 4" | 1/4" | 4" | 500 |
| MT6OBTBK-EE516-412US | 5/16" x 4-1/2" | 5/16" | 4-1/2" | 800 |
| MT6OBTBK-EE38-6US | 3/8" x 6" | 3/8" | 6" | 1,200 |
| MT6OBTBK-EE12-6US | 1/2" x 6" | 1/2" | 6" | 2,200 |
| MT6OBTBK-EE12-12US | 1/2" x 12" | 1/2" | 12" | 2,200 |
| MT6OBTBK-EE58-6US | 5/8" x 6" | 5/8" | 6" | 2,800 |
| MT6OBTBK-EE58-12US | 5/8" x 12" | 5/8" | 12" | 2,800 |
| MT6OBTBK-EE34-6US | 3/4" x 6" | 3/4" | 6" | 3,500 |
| MT6OBTBK-EE34-12US | 3/4" x 12" | 3/4" | 12" | 3,500 |
| MT6OBTBK-EE1-6US | 1" x 6" | 1" | 6" | 5,500 |
| MT6OBTBK-EE1-12US | 1" x 12" | 1" | 12" | 5,500 |

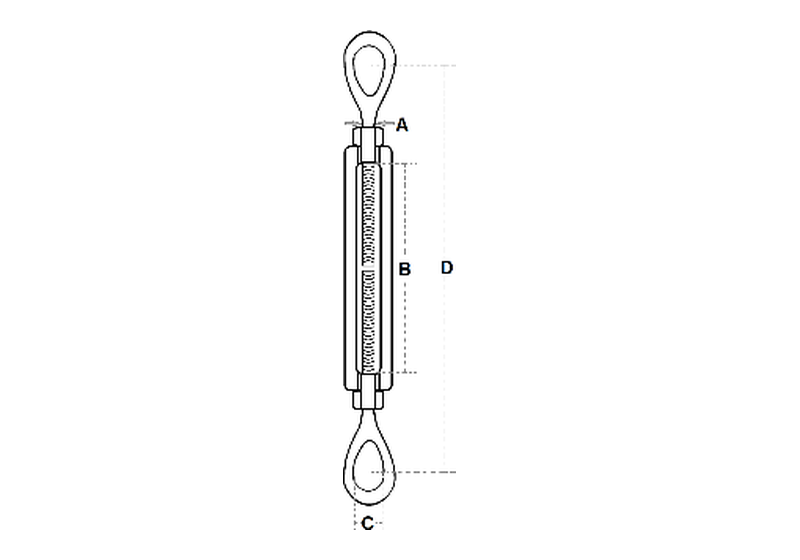

All dimensions in inches unless noted. A = Thread size, B = Body length.
