Description

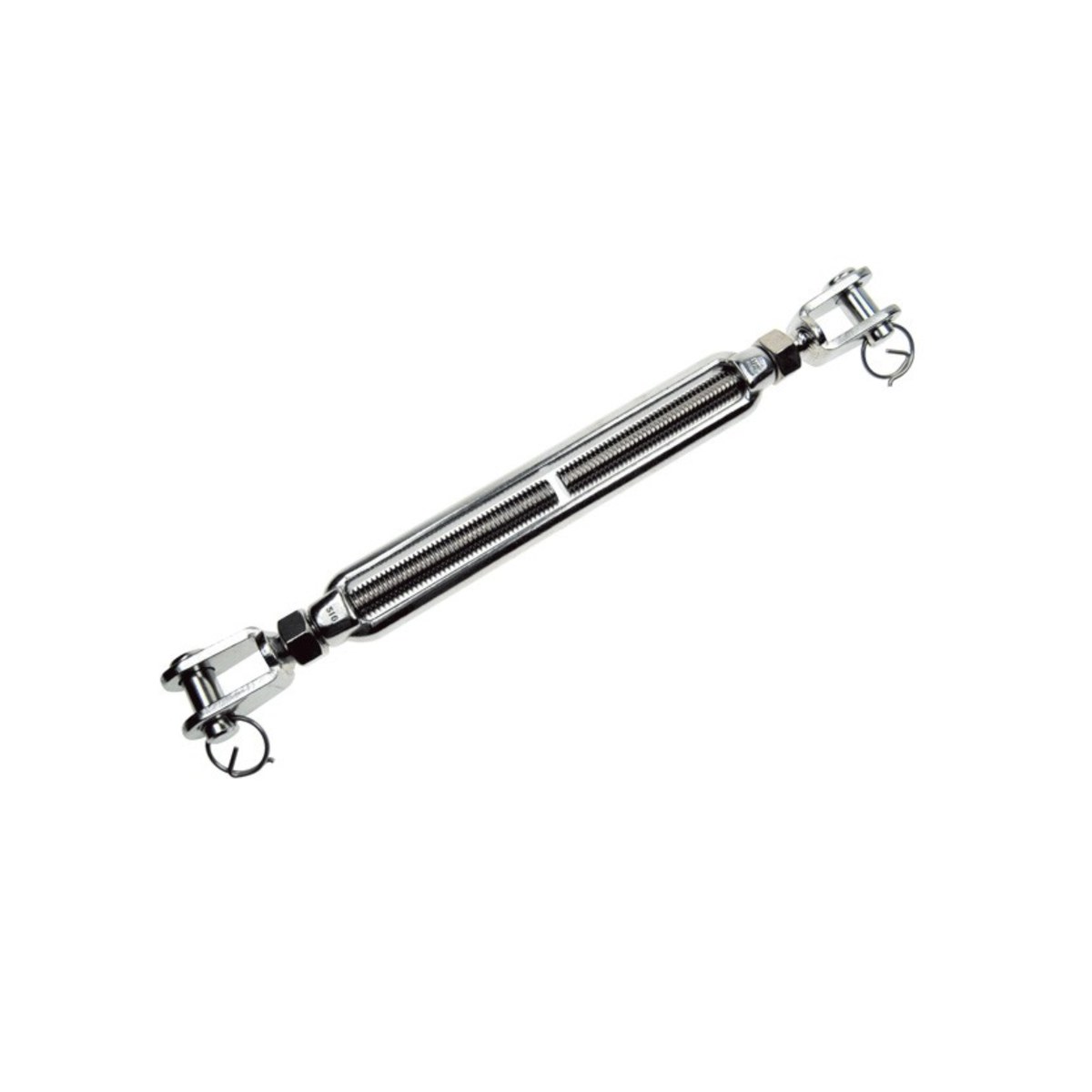

A European jaw and jaw turnbuckle has a clevis jaw at each end that pins directly to tabs, eyes and plates. The open body lets you see the thread engagement. Working load limits range from 350 to 2,200 lb by size.
Use it to tension shade sails, gates, stays and rigging that ends in a tab or eye.
Features
- UNC threading
Specifications
| Material | 316 Stainless Steel (AISI 316) |
|---|---|
| Working load limit | 350 to 2,200 lb, by size |
| Sizes | 3/16" x 2.22", 1/4" x 2.73", 5/16" x 3.69", 3/8" x 4.72", 1/2" x 6.53", 3/16" x 2.22" Metric |
| Weight per piece | 0.13 to 1.5 lb, by size |

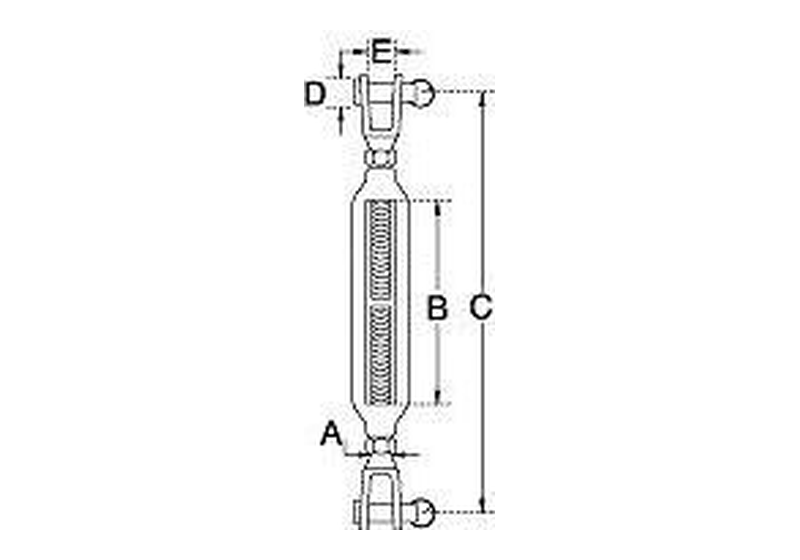

Dimensions by Size
| Part No. | Size | A: Thread size | B: Body length | C: Overall length, closed | D: Pin diameter | E: Jaw opening | Weight (lb) | WLL (lb) |
|---|---|---|---|---|---|---|---|---|
| MT6OBTBK-JJ316 | 3/16" x 2.22" | 3/16" | 2.25" | 4.70" | 0.19" | 0.33" | 0.13 | 350 |
| MT6OBTBK-JJ14 | 1/4" x 2.73" | 1/4" | 2.72" | 5.38" | 0.23" | 0.42" | 0.24 | 458 |
| MT6OBTBK-JJ516 | 5/16" x 3.69" | 5/16" | 3.70" | 7.12" | 0.31" | 0.38" | 0.36 | 900 |
| MT6OBTBK-JJ38 | 3/8" x 4.72" | 3/8" | 4.82" | 8.75" | 0.36" | 0.50" | 0.66 | 1,300 |
| MT6OBTBK-JJ12 | 1/2" x 6.53" | 1/2" | 6.68" | 12.25" | 0.47" | 0.62" | 1.50 | 2,200 |
| MT6OBTBK-JJ316M | 3/16" x 2.22" Metric | M5 | 2.25" | 4.70" | 0.19" | 0.33" | 0.13 | 350 |
All dimensions in inches unless noted. A = Thread size, B = Body length, C = Overall length, closed, D = Pin diameter, E = Jaw opening.
Ships direct. Shipping is calculated at checkout.
