Description

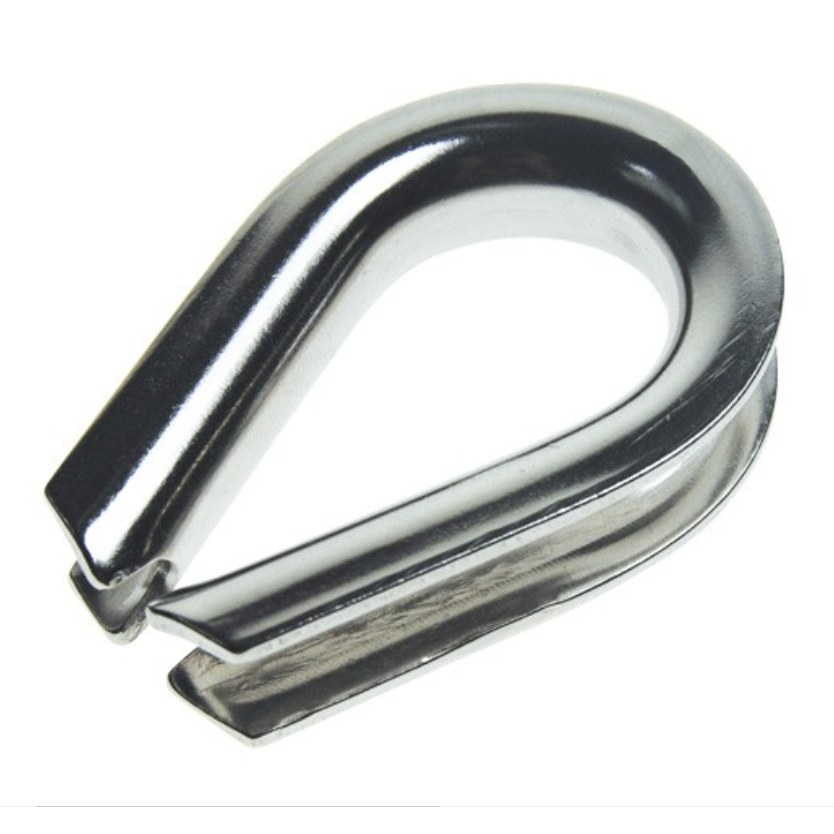

The heavy duty wire rope thimble is made from heavier stainless with a deeper groove than our light-duty version, so it holds its shape under higher loads.
Use it in slings, winch lines, mooring cables and any eye that sees heavy or repeated loading.
Specifications
| Material | 316 Stainless Steel (AISI 316) |
|---|---|
| Sizes | 1/8", 3/16", 1/4", 5/16", 3/8", 1/2", 5/8", 3/4", 7/8", 1", 1-1/4" |
| Weight per piece | 0.02 to 4.2 lb, by size |
Dimensions by Size
| Part No. | Size | A: Wire rope size | B: Inside width | C: Inside length | D: Material thickness | Weight (lb) |
|---|---|---|---|---|---|---|
| MT6THMB-18H | 1/8" | 1/8" | 19/32" | 1-7/32" | 0.040 | 0.018 |
| MT6THMB-316H | 3/16" | 3/16" | 3/4" | 1-7/16" | 0.055" | 0.03 |
| MT6THMB-14H | 1/4" | 1/4" | 7/8" | 1-5/8" | 0.068" | 0.06 |
| MT6THMB-516H | 5/16" | 5/16" | 1-1/16" | 1-7/8" | 0.085" | 0.10 |
| MT6THMB-38H | 3/8" | 3/8" | 1-1/8" | 2-1/8" | 0.12" | 0.28 |
| MT6THMB-12H | 1/2" | 1/2" | 1-7/16" | 2-3/4" | 0.155" | 0.50 |
| MT6THMB-58H | 5/8" | 5/8" | 1-3/4" | 3-1/4" | 0.18" | 0.72 |
| MT6THMB-34H | 3/4" | 3/4" | 2" | 3-3/4" | 0.23" | 1.20 |
| MT6THMB-78H | 7/8" | 7/8" | 2-1/4" | 4-1/4" | 0.24" | 1.46 |
| MT6THMB-1H | 1" | 1" | 2-1/4" | 4-1/2" | 0.25" | 2.40 |
| MT6THMB-114H | 1-1/4" | 1-1/4" | 3" | 5-3/4" | 0.25" | 4.20 |

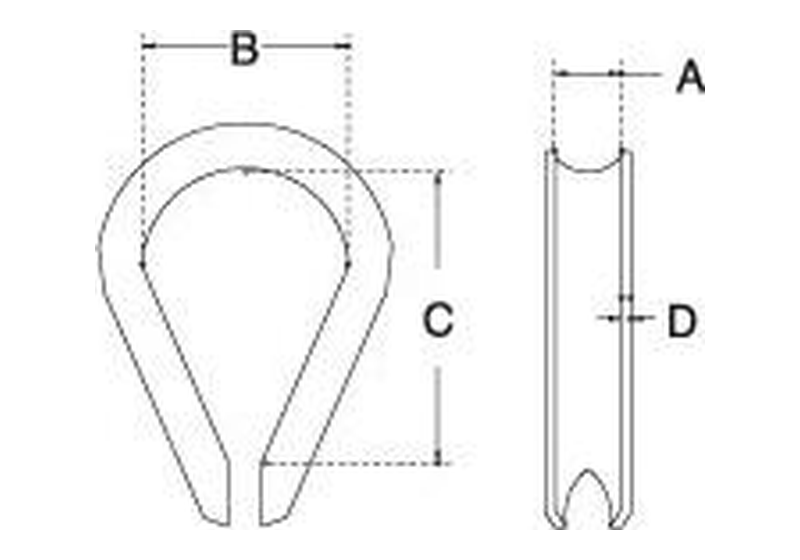

All dimensions in inches unless noted. A = Wire rope size, B = Inside width, C = Inside length, D = Material thickness.
Ships direct. Shipping is calculated at checkout.
