Description

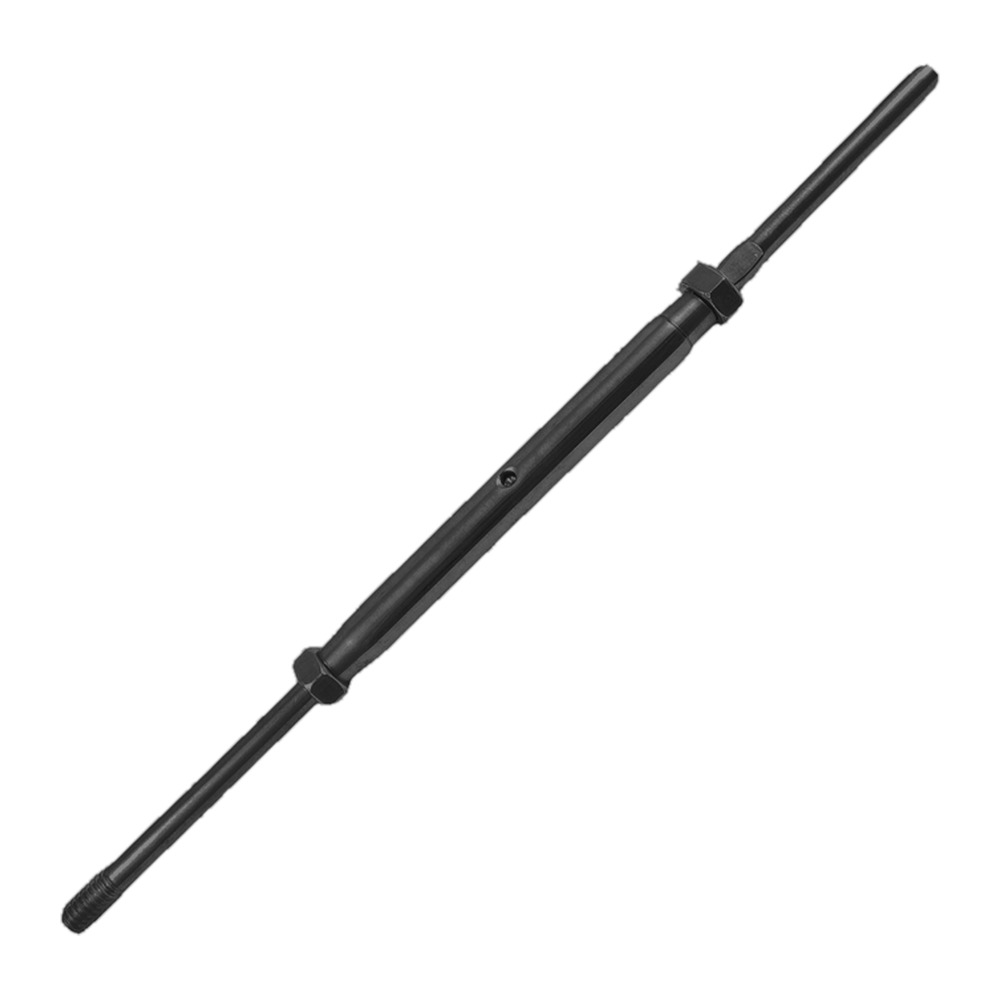

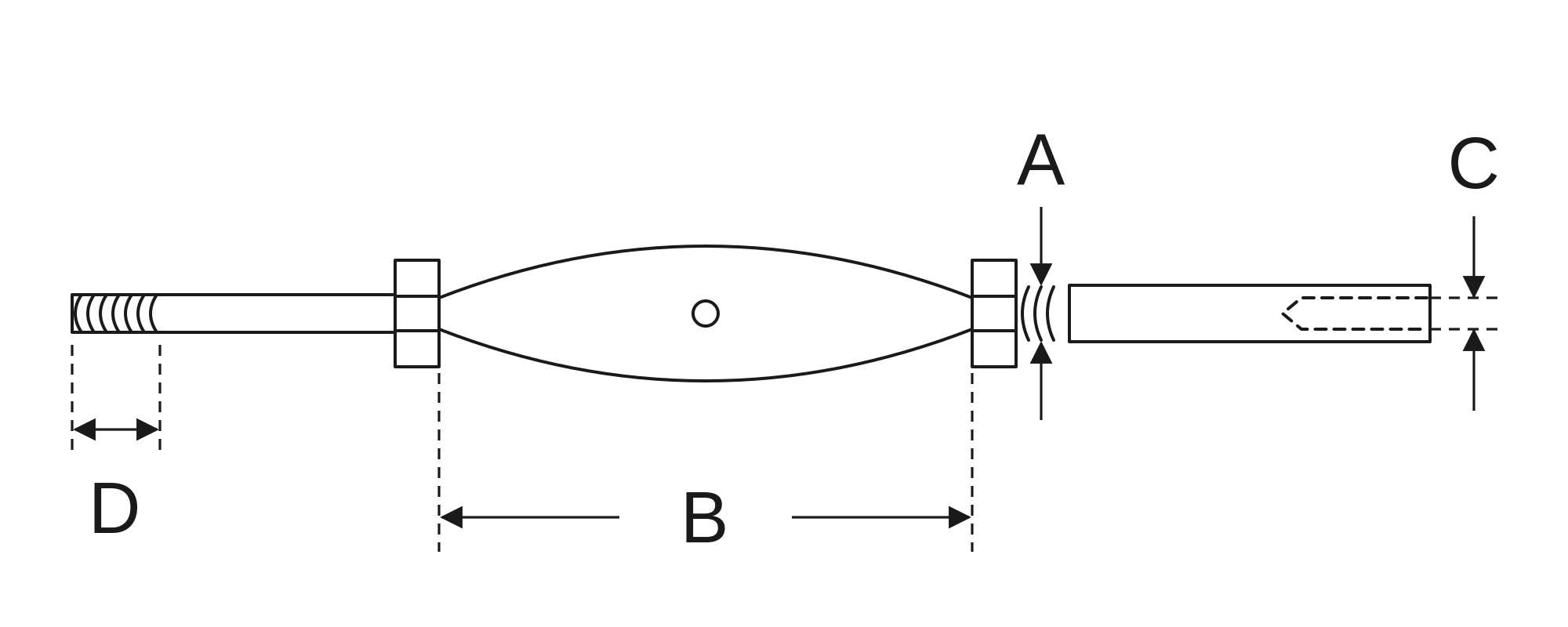

Black oxide rod and wrench flat stud closed body (pipe body) turnbuckle in T316 stainless steel for 1/8 in. or 3/16 in. cable, with a hand swage stud. The threaded rod end has a right hand thread and the wrench flat stud end has a left hand thread. The drawing and table below give the dimensions.
Tensioning: With a left hand thread on the stud end, turn the turnbuckle body counterclockwise to tension.
Dimensions by Size
| Part No. | C: Cable size | A: Thread | B | D |
|---|---|---|---|---|
| MT6PBHSRST14-18ABK | 1/8″ | 1/4″-20 | 3-3/4″ | 1/2″ |
| MT6PBHSRST14-316ABK | 3/16″ | 1/4″-20 | 3-3/4″ | 1/2″ |
All dimensions in inches unless noted. C = Cable size. A = Thread. B and D are as shown on the drawing. Each row is one cable size.
