Description

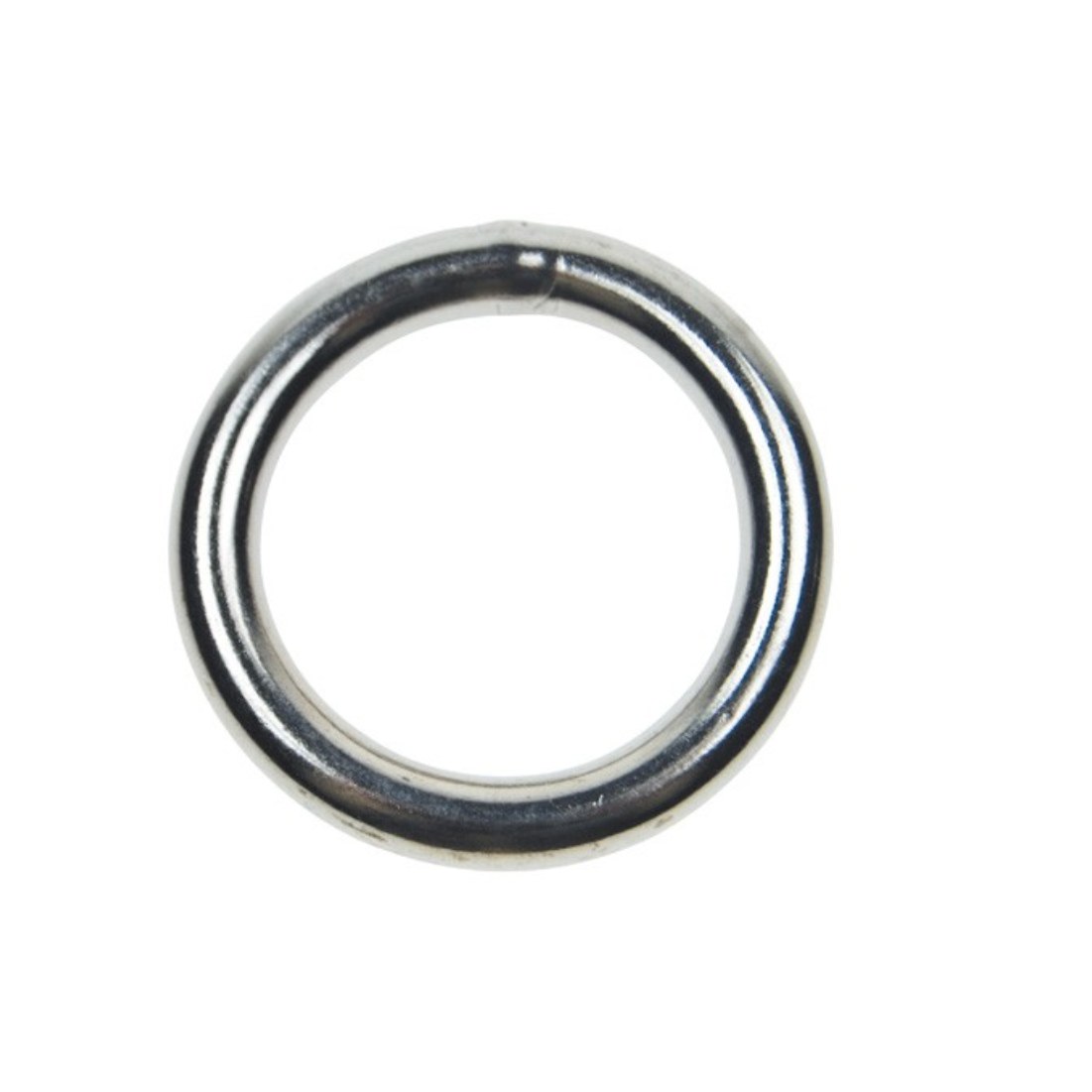

This welded round ring is fully closed with no gap and takes loads from any direction. It comes in 29 combinations of wire thickness and diameter, with WLL from 100 to 1,750 lb.
It is used for sewing and webbing projects, harnesses, tack, rigging junctions and decorative hardware.
Specifications
| Material | 316 Stainless Steel (AISI 316) |
|---|---|
| Working load limit | 100 to 1,750 lb, by size |
| Sizes | 3mm x 20mm, 3mm x 25mm, 3mm x 30mm, 3mm x 40mm, 4mm x 20mm, 4mm x 25mm, 4mm x 30mm, 4mm x 40mm, 4mm x 50mm, 5mm x 20mm, 5mm x 25mm, 5mm x 30mm and 17 more |
| Weight per piece | 0.0088 to 1.235 lb, by size |
Dimensions by Size
| Part No. | Size | D: Wire diameter | L: Outside diameter | WLL (lb) |
|---|---|---|---|---|
| MT6RR3-20MM | 3mm x 20mm | 1/8" | 25/32" | 125 |
| MT6RR3-25MM | 3mm x 25mm | 1/8" | 1" | 125 |
| MT6RR3-30MM | 3mm x 30mm | 1/8" | 1-3/16" | 100 |
| MT6RR3-40MM | 3mm x 40mm | 1/8" | 1-5/8" | 100 |
| MT6RR4-20MM | 4mm x 20mm | 5/32" | 13/16 | 300 |
| MT6RR4-25MM | 4mm x 25mm | 5/32" | 27/32" | 300 |
| MT6RR4-30MM | 4mm x 30mm | 5/32" | 1-3/16" | 280 |
| MT6RR4-40MM | 4mm x 40mm | 5/32" | 1-9/16" | 250 |
| MT6RR4-50MM | 4mm x 50mm | 5/32" | 2" | 220 |
| MT6RR5-20MM | 5mm x 20mm | 3/16" | 13/16" | 500 |
| MT6RR5-25MM | 5mm x 25mm | 3/16" | 1" | 500 |
| MT6RR5-30MM | 5mm x 30mm | 3/16" | 1-3/16" | 300 |
| MT6RR5-40MM | 5mm x 40mm | 3/16" | 1-9/16" | 300 |
| MT6RR5-50MM | 5mm x 50mm | 3/16" | 2" | 250 |
| MT6RR6-25MM | 6mm x 25mm | 1/4" | 1" | 600 |
| MT6RR6-30MM | 6mm x 30mm | 1/4" | 1-3/16" | 500 |
| MT6RR6-40MM | 6mm x 40mm | 1/4" | 1-19/32" | 400 |
| MT6RR6-50MM | 6mm x 50mm | 1/4" | 2" | 350 |
| MT6RR8-30MM | 8mm x 30mm | 5/16" | 1-3/16" | 780 |
| MT6RR8-40MM | 8mm x 40mm | 5/16" | 1-5/8" | 750 |
| MT6RR8-50MM | 8mm x 50mm | 5/16" | 2" | 600 |
| MT6RR8-60MM | 8mm x 60mm | 5/16" | 2-11/32" | 500 |
| MT6RR10-50MM | 10mm x 50mm | 3/8" | 2" | 1,100 |
| MT6RR10-60MM | 10mm x 60mm | 3/8" | 2-7/64" | 1,000 |
| MT6RR10-80MM | 10mm x 80mm | 3/8" | 3-3/16" | 800 |
| MT6RR10-100MM | 10mm x 100mm | 3/8" | 4" | 600 |
| MT6RR12-80MM | 12mm x 80mm | 1/2" | 3-7/64" | 1,750 |
| MT6RR12-100MM | 12mm x 100mm | 1/2" | 4" | 1,600 |
| MT6RR12-120.65MM | 12mm x 120.65mm | 1/2" | 4-3/4" | 1,400 |

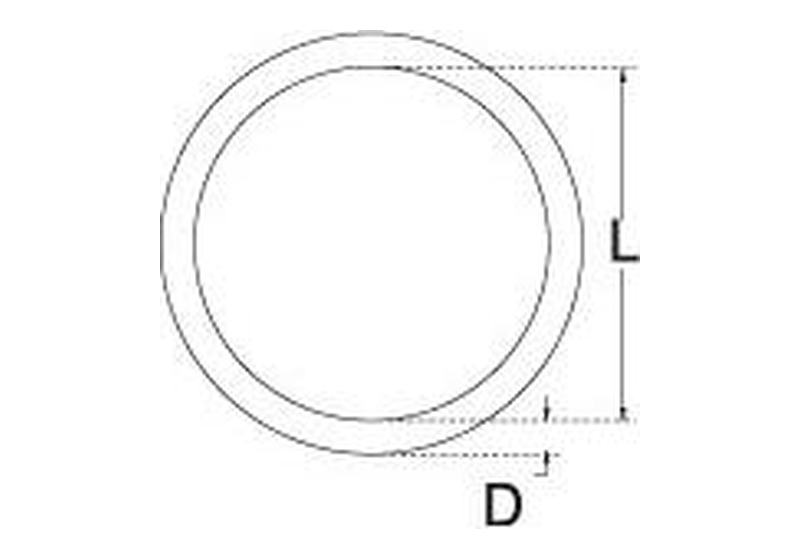

All dimensions in inches unless noted. D = Wire diameter, L = Outside diameter.
Ships direct. Shipping is calculated at checkout.
