Description

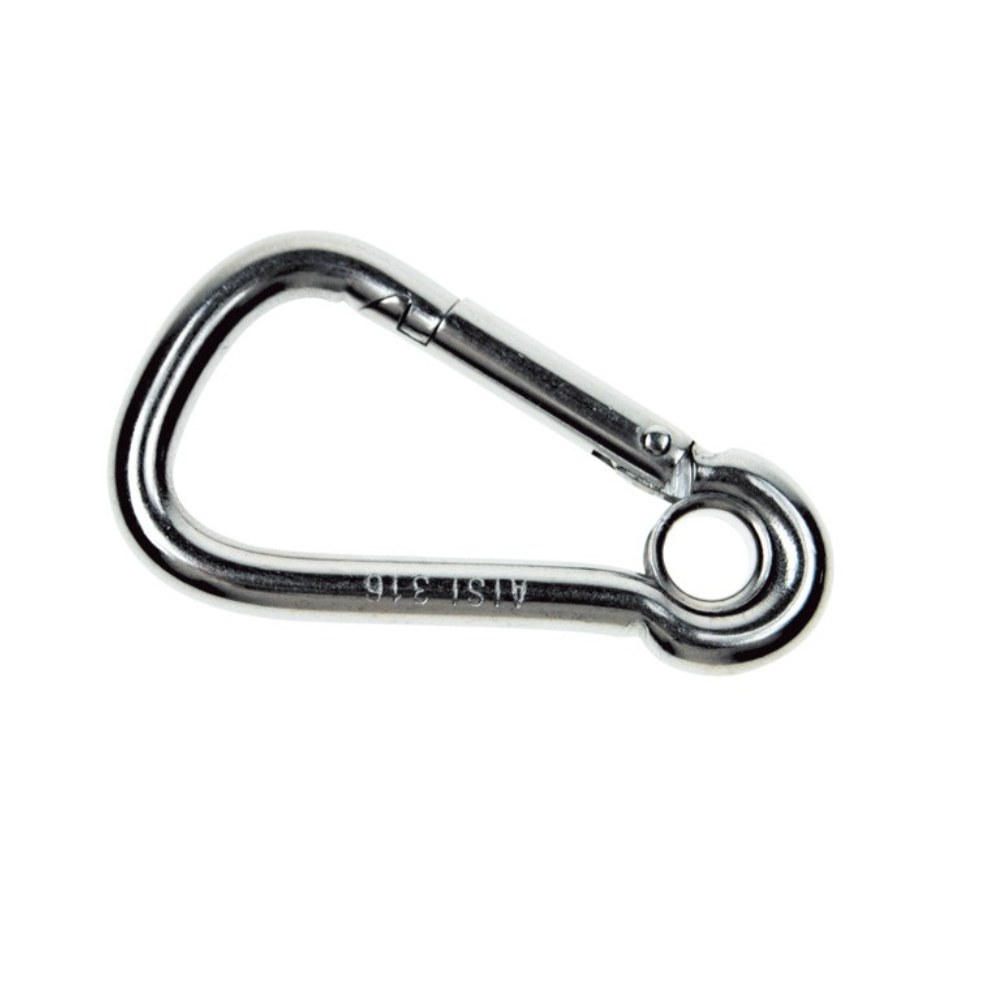

The offset shape of this asymmetric spring hook with eyelet gives a wider gate opening than a standard snap hook of the same size. The eyelet takes rope or a splice, and the 316 stainless steel resists corrosion.
It is used on halyards, flag lines, dock lines and anywhere a quick-release connection on rope is helpful.
Features
- Eyelet end for attaching to rope or webbing
Specifications
| Material | 316 Stainless Steel (AISI 316) |
|---|---|
| Working load limit | 150 to 540 lb, by size |
| Sizes | 1/4" Metric, 5/16" Metric, 3/8" Metric, 7/16" Metric |
| Weight per piece | 0.062 to 0.425 lb, by size |
Dimensions by Size
| Part No. | Size | A: Wire diameter | B: Overall length | C: Overall height | D: Gate opening | E: Eyelet inside diameter | Weight (lb) | WLL (lb) |
|---|---|---|---|---|---|---|---|---|
| MT6ASHK-14E | 1/4" Metric | 1/4" | 2-3/8" | 1-3/8" | 3/8" | 5/16" | 0.062 | 150 |
| MT6ASHK-516E | 5/16" Metric | 5/16" | 3-3/8" | 1-7/8" | 9/16" | 3/8" | 0.144 | 280 |
| MT6ASHK-38E | 3/8" Metric | 3/8" | 4" | 2-3/8" | 11/16" | 9/16" | 0.230 | 400 |
| MT6ASHK-716E | 7/16" Metric | 7/16" | 4-3/4" | 2-3/4" | 7/8" | 11/16" | 0.425 | 540 |
All dimensions in inches unless noted. A = Wire diameter, B = Overall length, C = Overall height, D = Gate opening, E = Eyelet inside diameter.
Ships direct. Shipping is calculated at checkout.
