Description

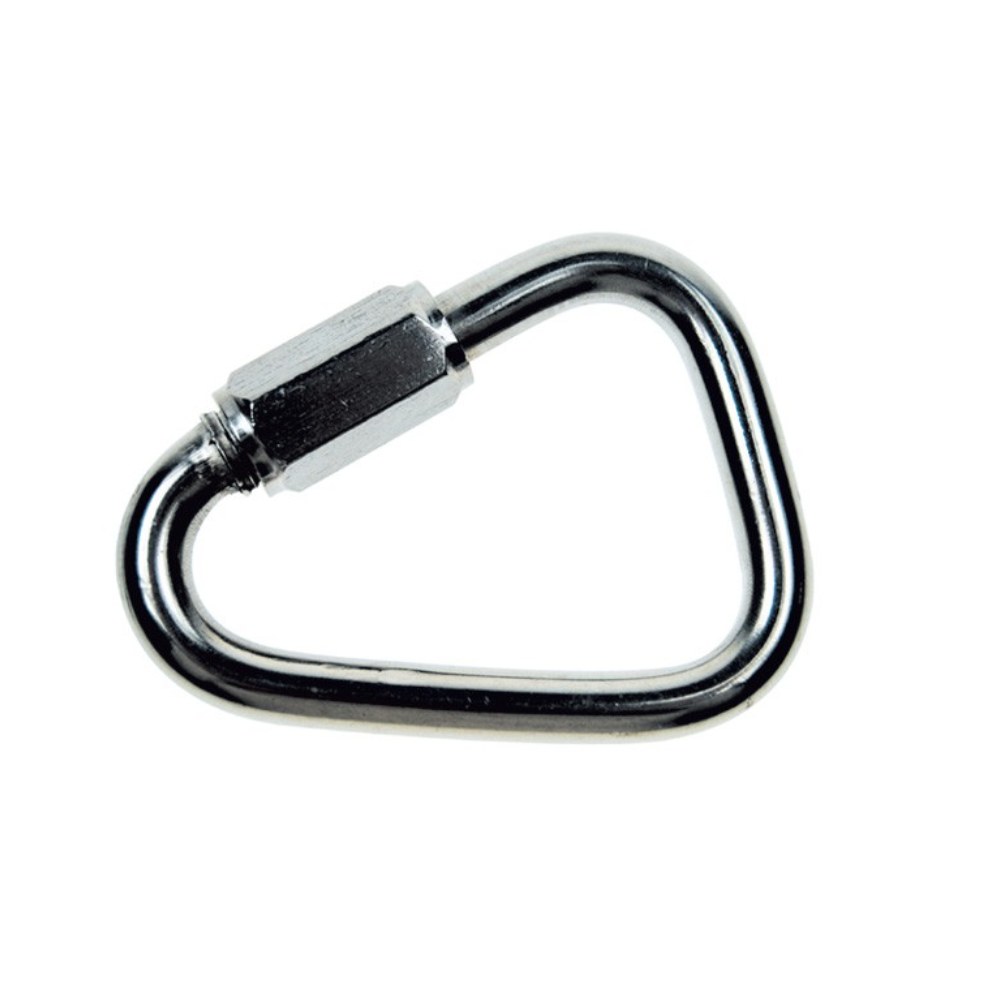

The triangle shape of this delta quick link holds three-way loads, like a sling with two legs and a hook. It closes with a threaded sleeve, and the working load limit ranges from 330 to 3,200 lb by size.
Use it to join chain, rope and straps at a single point, or as a compact anchor connector.
Specifications
| Material | 316 Stainless Steel (AISI 316) |
|---|---|
| Working load limit | 330 to 3,200 lb, by size |
| Sizes | 1/8", 3/16", 1/4", 5/16", 3/8", 15/32" |
| Weight per piece | 0.02 to 0.3 lb, by size |
Dimensions by Size
| Part No. | Size | A: Wire diameter | B: Overall width | C: Overall height | D: Gate opening | Weight (lb) | WLL (lb) |
|---|---|---|---|---|---|---|---|
| MT6DQKL-18 | 1/8" | 1/8" | 1-3/16" | 1-15/32" | 3/16" | 0.02 | 330 |
| MT6DQKL-316 | 3/16" | 3/16" | 1-9/16" | 1-7/8" | 1/4" | 0.05 | 720 |
| MT6DQKL-14 | 1/4" | 1/4" | 1-5/8" | 2-1/4" | 9/32" | 0.08 | 990 |
| MT6DQKL-516 | 5/16" | 5/16" | 2-1/4" | 2-1/2" | 3/8" | 0.20 | 1,400 |
| MT6DQKL-38 | 3/8" | 3/8" | 2-5/8" | 3-7/16" | 7/16" | 0.30 | 2,100 |
| MT6DQKL-1532 | 15/32" | 15/32" | 3" | 4-1/8" | 9/16" | 0.52 | 3,200 |
All dimensions in inches unless noted. A = Wire diameter, B = Overall width, C = Overall height, D = Gate opening.
