Description

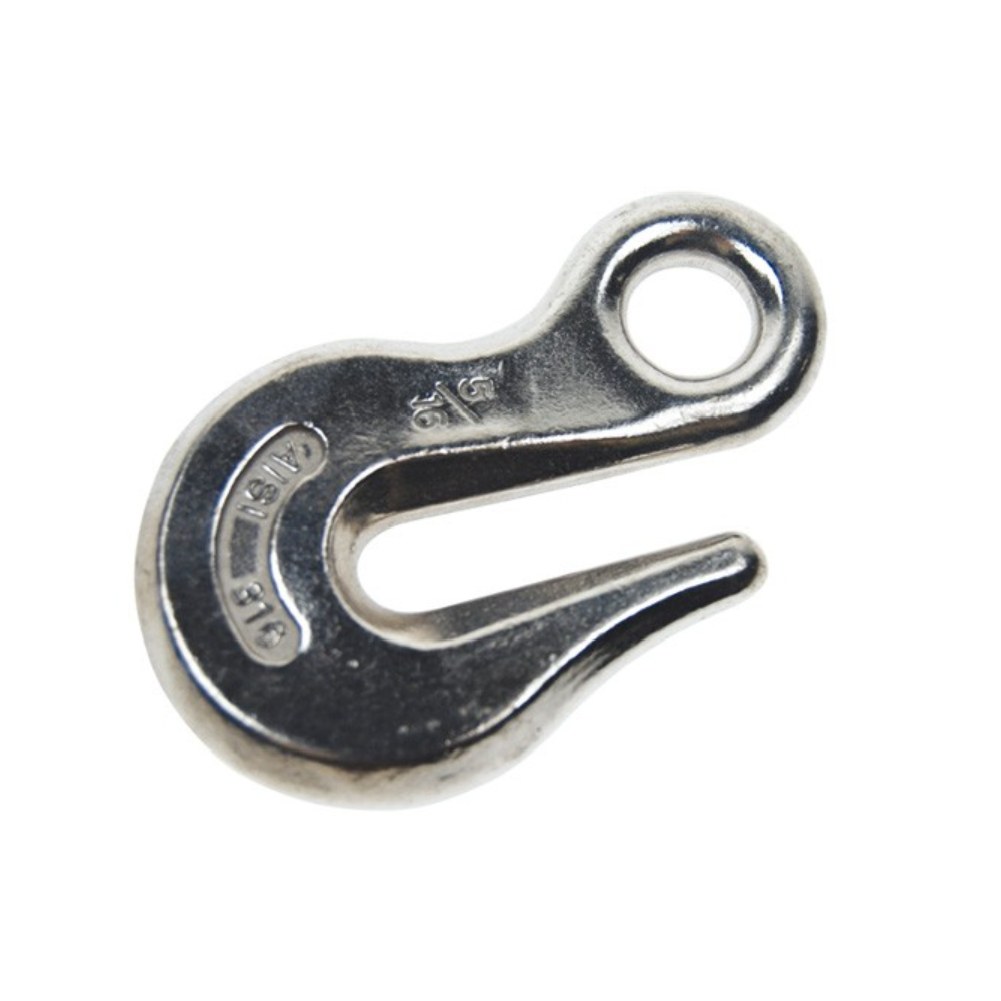

This eye grab hook has an eye for a shackle or quick link and a narrow throat that locks onto a chain link. It lets you shorten chain or make a choker anywhere along its length.
It is used on tie-down chains, logging chains and boat anchor setups.
Specifications
| Material | 316 Stainless Steel (AISI 316) |
|---|---|
| Working load limit | 990 to 3,740 lb, by size |
| Sizes | 1/4", 5/16", 3/8", 1/2" |
| Weight per piece | 0.28 to 1.6 lb, by size |
Dimensions by Size
| Part No. | Size | Chain size | B: Eye inside diameter | E: Throat opening | R: Reach | Weight (lb) | WLL (lb) |
|---|---|---|---|---|---|---|---|
| MT6EGHK-14 | 1/4" | 1/4" | 1/2" | 5/16" | 1-1/2" | 0.28 | 990 |
| MT6EGHK-516 | 5/16" | 5/16" | 9/16" | 27/64" | 1-5/8" | 0.50 | 1,540 |
| MT6EGHK-38 | 3/8" | 3/8" | 11/16" | 15/32" | 1-7/8" | 0.78 | 2,200 |
| MT6EGHK-12 | 1/2" | 1/2" | 7/8" | 9/16" | 2-7/16" | 1.60 | 3,740 |

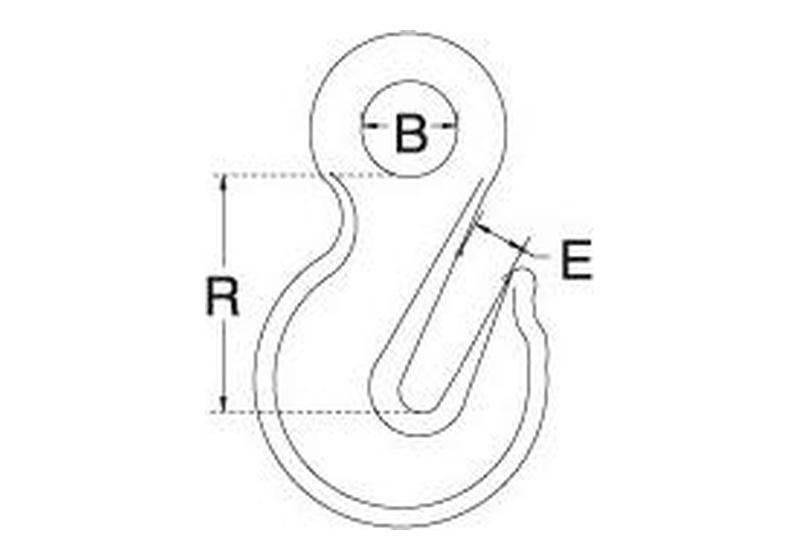

All dimensions in inches unless noted. B = Eye inside diameter, E = Throat opening, R = Reach.
